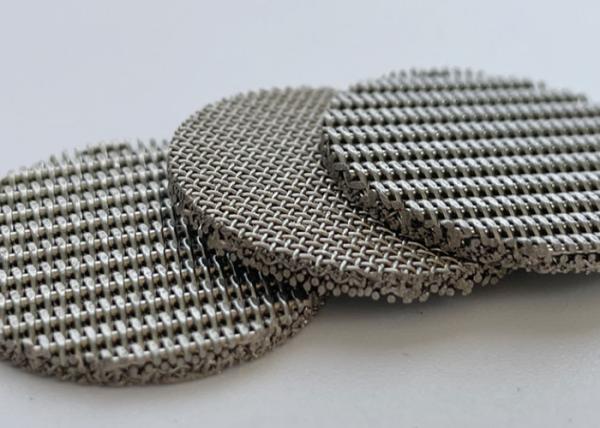

Various Shapes Stainless Steel 5 Um 10 Um Sintered Wire Mesh Filter Disc
Various Shapes Stainless Steel 5 Um 10 Um Sintered Wire Mesh Filter Disc
Various Shapes Stainless Steel 5 Um 10 Um Sintered Wire Mesh Filter Disc
Various Shapes Stainless Steel 5 Um 10 Um Sintered Wire Mesh Filter Disc
Specifications
Brand Name :
R&K
Model Number :
S-04
Certification :
SGS
Place of Origin :
Hebei,China
MOQ :
1piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union，PayPal
Supply Ability :
1000 pieces per week
Delivery Time :
5-8 work days
Packaging Details :
Inside:bubble wrap Outside :wooden case or as required
Product name :
Various Shapes Stainless Steel 5 Um 10 Um Sintered Wire Mesh Filter Disc
Width :
as requirement
Length :
as requirement
Color :
Silver / black
Appication :
filter
weave style :
plain weave
Type :
Weave Wire Mesh
Material :
Stainless Steel Wire,304,316
Description

Various Shapes Stainless Steel 5 Um 10 Um Sintered Wire Mesh Filter Disc

Product Description

The stainless steel sintered mesh is a new type of filter material which is made of a multi-layer wire woven mesh and is manufactured by a special lamination pressing and vacuum sintering process, and has high mechanical strength and overall rigidity. The meshes of the layers of the screen are interlaced to form a uniform and ideal filtering structure, which not only overcomes the defects of low strength, poor rigidity and unstable mesh shape of the ordinary metal mesh, but also can be used for the pore size of the material. The permeability and strength characteristics are reasonably matched and designed, so that it has excellent filtration precision, filtration resistance, mechanical strength, wear resistance, heat resistance and processability. The comprehensive performance is obviously superior to sintered metal powder and ceramics. Other types of filter materials such as fibers, filter cloth, and filter paper.

Product Feature

Working Temperature:200—1000°C

Corrosion Resistance

High Filtering Efficiency

Metallic capacities, such as noise reduction,hot resistance,heat conduction,high strength and etc

Easy to welding and long working life

Product Parameters


Note: This list for a reference, not for the complete list.

Nomin

al filter rating

structure prodextive layer+control layer

+dispersion layer+ reinforce layer+ reinforce layer

 Thickness(mm) air perm eabilit Bubble pressure(mm) weight (kg/m2)

porosity

(%)
1 100+400*2800+100+12*64+64 1.7 1.81 360-600 5 layer 8.4 40%
5 100+200*1400+100+12*64+64 1.7 2.42 260-550 6 layer 14.4 40%
20 100+165*800+100+12*64+64* 1.7 4.5 170-450 40%
200 40+80+40+20+40+80+40 2 26 50-150 40%

Product Application

1. Used in high temperature environment as dispersion cooling material

2. For gas distribution, liquidized bed orifice material

3. For high precision, high reliability high temperature filter materials

4. For high pressure backwash oil filter

Various Shapes Stainless Steel 5 Um 10 Um Sintered Wire Mesh Filter Disc
