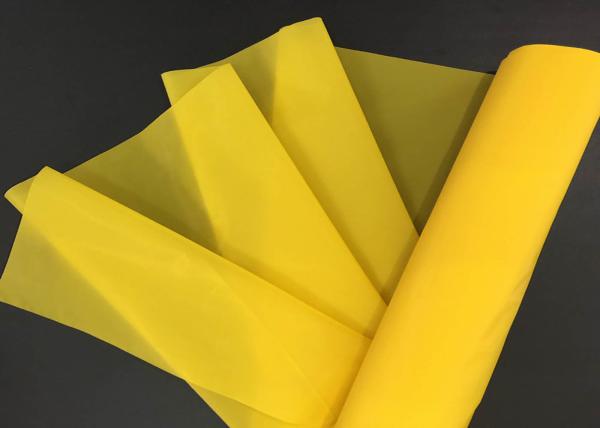

90t Polyester Plain Weave 1.27m Width Silk Screen Printing Mesh
90t Polyester Plain Weave 1.27m Width Silk Screen Printing Mesh
90t Polyester Plain Weave 1.27m Width Silk Screen Printing Mesh
90t Polyester Plain Weave 1.27m Width Silk Screen Printing Mesh
Specifications
Brand Name :
R&K
Model Number :
R&K-Polyester Mesh
Certification :
FDA / SGS / ISO:9001
Place of Origin :
Hebei, China (Mainland)
MOQ :
1 meter
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Meters per month
Delivery Time :
7~15 days
Packaging Details :
cartons;cases;as your requirement
Weave type :
Plain
Monofilament style :
Yes
Printing :
Silk Screen Printing
Material :
Polyester
Mesh count :
90T
Color :
Yellow
Diameter :
48w
Width :
1.27m , 1.45m ,1.65m
Description

90T Polyester Plain Weave Yellow Color Silk Screen Printing Mesh

Product Introduction

The polyester printing net adopts high-precision and high-quality monofilament polyester net, which has the characteristics of high precision, stable tension, and excellent dimensional stability, so that the printing will not be deflected, and high strength and low elongation are guaranteed, which can greatly extend the screen Service life.

Special width can be provided according to customer requirements, the maximum width is 3.6 meters.

Product Details

Mesh: 40-400mesh/inch
Width: 1.15-3.6m
Keyword: Silk Screen Printing Mesh
Woven: Plain Weave,twill Weave
Thread Diameter: 30-150micron
Length: 30-70m/roll
Color: White,yellow,black


Product specification

Mesh Count
Diameter
(Mesh/inch μm)		 Mesh
Count
(Mesh
/Inch)		 Weave Aperture
(μm)		 Thread
Diameter
(μm)		 Opening
(%)		 Thickness(μm) Thickness
Tollerance
(+/- μm)		 Theoretical
lnk(cm3/m2)		 Weight
(g/m2)
12-250 30 1:1 583 250 49 490 20 228 117
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60
16-200 40 1:1 425 200 46 400 18 172 148
20-120PW(T) 50 1:1 380 120 58 210 11 122 76
21-80pw(S) 55 1:1 296 80 69 120 9 79 35
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121
24-100PW(T) 60 1:1 316 100 57 136 11 65 81
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125
32-55PW(S) 81 1:1 257 55 67 103 6 67 28
32-64PW(S) 81 1:1 248 64 63 95 6 56 32
32-100PW(T) 81 1:1 212 100 45 165 8 73 75
36-90PW(T) 92 1:1 183 90 44 150 8 65 68
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
53-55PW(S) 135 1:1 133 55 50 86 6 42 40
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70(PW)HD 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
64-64PW(T) 160 1:1 85 64 30 115 6 34 61
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42
77-55PW(T) 195 1:1 67 55 27 88 4 24 55
80-48PW(T) 200 1:1 72 48 33 74 4 25 56
90-48PW(T) 230 1:1 56 48 25 78 4 19 50
100-40PW(T) 255 1:1 58 40 33 63 3 21 37
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40
120-31PW(S) 305 1:1 49 31 35 49 3 17 26
120-34PW(T) 305 1:1 45 34 30 55 3 16 35
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44
130-34PW(T) 330 1:1 40 34 27 55 3 15 37
140-31PW(S) 355 1:1 36 31 26 48 2 12 30
140-34PW(T) 355 1:1 31 34 20 53 3 10 39
140-34TW(T) 355 1:1 33 34 21 56 3 12 41
150-31PW(S) 380 1:1 32 31 23 49 3 11 32
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42
165-34PW(S) 420 1:1 23 31 15 48 2 7 36
180-27PW(S) 460 1:1 23 27 16 43 2.5 7 31

Product Characteristics

Screen Printing Silk Screen with characteristics:

1. screen printing adaptability is very strong, wide range of applications.

2. Screen printing not only can be monochrome printing, but also can be color register and screen color printing.

3. The Light Resistance of screen printing products is stronger than that of other kinds of printing products. It is more suitable for outdoor advertising and signage.

4, screen printing can be a large area of printing, today's screen printing products up to a maximum range of 3 meters 4 meters, or more.

90t Polyester Plain Weave 1.27m Width Silk Screen Printing Mesh

90t Polyester Plain Weave 1.27m Width Silk Screen Printing Mesh
