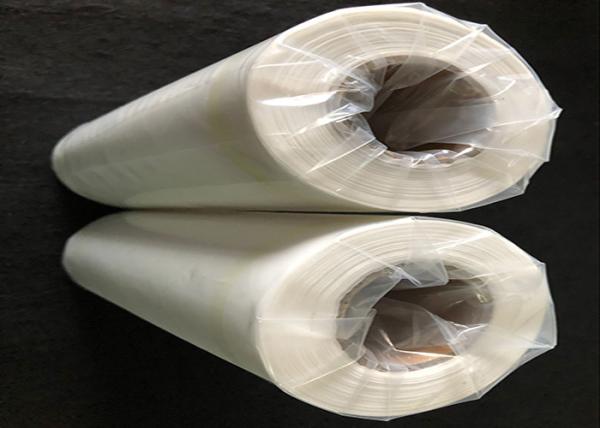

0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll
0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll
0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll
0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll
Specifications
Brand Name :
R&K
Model Number :
R&K-Nylon Mesh
Certification :
FDA/SGS/ISO:9001
Place of Origin :
Hebei,China
MOQ :
10m
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000m per month
Delivery Time :
5-10days according to quantity
Packaging Details :
Waterproof inside,then carton,if large quantity,wooden case.
Product name :
0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll
Material :
Nylon
Width :
0.2 M
Length :
30/50m
Weave style :
plain weave / twill weave
Mesh count :
30-300 mesh
Color :
White/ Yellow
Certificate :
FDA
Aperture :
23-619 micorns
Filter tube :
customize
Description

0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll

Product Introduction and feature:

The nylon screen material is environmentally friendly. Non-doped recycled materials, not easy to deform, long service life, environmentally friendly and healthy, up to food-grade standards
Corrosion-resistant, durable, nylon mesh has the characteristics of high toughness, good elasticity, oil resistance, abrasion resistance, etc.
Wide range of applications, suitable for liquid filtration, powder filtration, paint filtration, ink filtration and other oily products filtration, suitable for alcohol filtration, food filtration, industrial filtration, etc.

Nylon mesh filtering is performed by linear codes in the mesh size range from 7 microns to 1920 microns. Linear code widths range from a minimum of 36 inches to a maximum of 60 inches, depending on mesh size and inventory. In addition to mesh openings, the following table also provides the following features: opening area, number of meshes (threads per inch), and thread diameter. This monofilament woven mesh material is nylon 6/6, which has effective wear resistance and alkali resistance.
Softening point: 170 ° C to 230 ° C (338 ° F to 446 ° F)
Melting point: 210 ° C to 250 ° C (410 ° F to 482 ° F)

Product Application

Office building, meeting room, hospital, shopping mall, stadium, airport etc. Large civil building ventilation system;
General plant ventilation and air conditioning system;
Clean room ventilation and air conditioning system in the primary filter

Product Specification

Nylon Filter Mesh(Nylon filter cloth/Nylon woven mesh)
Fabric
number		 Mest
count		 Thread
diameter		 Mesh
opening		 Open
surface		 Fabric
thickness		 Weight
NO. cm mesh/inch micron micron % micron g/m2
JPP5 5 12 500 1500 56 850 271
JPP6 6 16 400 1267 58 780 208
JMG7 7 18 350 1079 57 675 186
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 860 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
JPP12 12 35 300 533 41 585 234
JPP14 14 40 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
JPP16 16 50 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
JPP20 20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62
JPP56 56 140 60 120 44 85 44
JPP59 59 150 60 110 42 98 46
JPP64 64 160 60 100 37 105 50
JPP72 72 180 50 90 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 40 60 36 65 35
JPP120 120 305 40 43 25 70 42
JPP130 130 330 40 37 23 75 45

0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll

0.2 M Width Filter Tube Plastic Nylon 50 Micron Screen Mesh Roll
