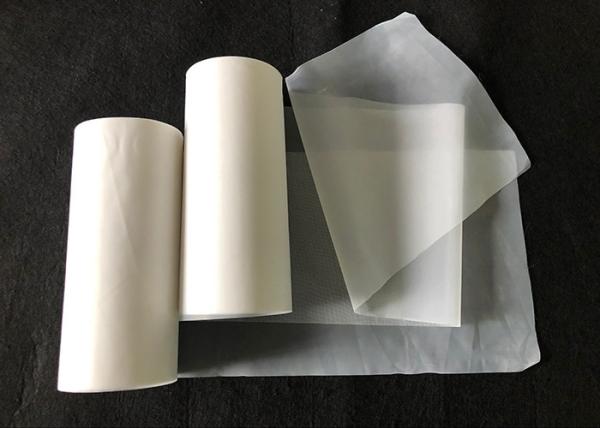

Ultra Thin Dacron 60 Mesh Monofilament Nylon Mesh Filter Fabric
Ultra Thin Dacron 60 Mesh Monofilament Nylon Mesh Filter Fabric
Specifications
Brand Name :
R&K
Model Number :
R&K-Nylon mesh
Certification :
MSDS,ROSH,SGS,ISO 9001
Place of Origin :
HEBEI ,CHINA
MOQ :
10 meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Meters per month
Delivery Time :
7~15 days
Packaging Details :
1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Product name :
Nylon Filter Fabric 5 50 100 Micoron Nylon Cloth Filter Mesh
Hole Shape :
Square
Usage :
Liquid Filter
Technique :
Woven
Feature :
Corrosion Resistance
Width :
1-3.65m
Length :
50m per roll
Micron :
5 50 100 Micoron
Type :
Filter Cloth
Wave stlye :
Plain weave
Description

Ultra-Thin Dacron 60 Mesh Nylon Monofilament Mesh Fabric

Product Introduction

The nylon filter imesh s mainly made of P.P fiber woven and formed into one body. Acid and alkali resistance, good corrosion resistance. It is a material with low resistance, can be cleaned repeatedly, and is extremely economical. The captured long and short fibers and dust particles are easy to clean, and the filtration efficiency is not affected by cleaning. Good impact resistance.Nylon mesh is a chemical fiber woven mesh made of nylon yarn, nylon yarn, polyester yarn, nanofiber yarn and other chemical fibers as raw materials and mechanically processed by wire mesh.

Chinese name:Nylon mesh
Foreign name:Nylon mesh
Material:Nylon yarn, nylon yarn, polyester yarn, nylon yarn
Special points:High toughness, good elasticity, corrosion resistance, oil resistance
Use the way:Industrial filtration, petroleum, chemical, printing

Performance characteristics: wear resistance, high strength
Material composition: The filter material is a black nylon mesh made of PP material.
Use way: nylon filter

Product Specification

Fabric number Mesh count Thread diameter Mesh opening Opening Thickness Weight
No. cm inch um micron % um g/m2
JPP4 4 10 550 1950 61 950 262
JPP5 5 12 500 1500 56 850 271
JPP6 6 16 400 1267 58 780 208
JPP7 7 18 350 1079 57 675 186
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 861 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
12 30 300 533 41 585 234
JPP14 14 35 250 464 42 470 190
JPP16 16 40 200 425 46 370 139
16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 128 38 145 62
JPP56 56 140 61 118 44 85 44
JPP59 59 150 61 109 41 98 46
JPP64 64 160 61 95 37 105 50
JPP72 72 180 50 89 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 43 57 32 65 35
JPP120 120 305 43 40 23 70 42
JPP130 130 330 43 34 20 75 45
JPP140 140 355 38 33 21 67 48
JPP150 150 380 38 29 19 68 51
JPP165 165 420 35 26 18 62 47


Product Application

Nylon filter mesh is mainly used in filtration(water,milk,soybean,fruit juice,cheese) and separation,like chemical insudtry,paint,ink,oil products filtration,paint filter,alcohol filter, liquid filtration quality,powder filtration.pharmaceutical and so on.

Nylon filter cloth features the greatest abrasion resistance among the other three frequently used filter fabrics including polypropylene, polyester and cotton. It is often found in filtration applications of abrasive dusts and wet abrasive solids where abrasion resistance plays an important factor.

Product Features

It has high tension threshold and breaking point​
It has high modulus, low elongation monofilament nylon yarn
It has resist to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Good antistatic
No surface treatment



Ultra Thin Dacron 60 Mesh Monofilament Nylon Mesh Filter Fabric

Ultra Thin Dacron 60 Mesh Monofilament Nylon Mesh Filter Fabric
