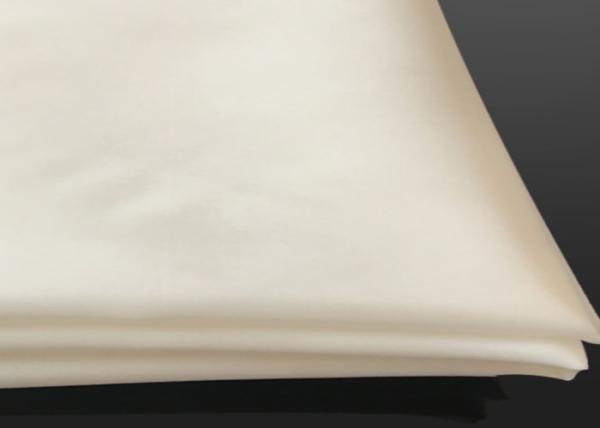

Food Grade Monfilament 50 Micron SGS Nylon Filter Mesh
Food Grade Monfilament 50 Micron SGS Nylon Filter Mesh
Food Grade Monfilament 50 Micron SGS Nylon Filter Mesh
Food Grade Monfilament 50 Micron SGS Nylon Filter Mesh
Specifications
Brand Name :
R&K
Model Number :
R&K-Nylon mesh
Certification :
MSDS,ROSH,SGS,ISO 9001
Place of Origin :
HEBEI ,CHINA
MOQ :
10 meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Meters per month
Delivery Time :
7~15 days
Packaging Details :
1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Product name :
Food Grade Monfilament Nylon Filter Fabric Material 50 Nylon Micron Filter Screen
Hole Shape :
Square
Usage :
Liquid Filter
Weave style :
Plain Woven Nylon Mesh
Technique :
Woven
Feature :
Corrosion Resistance
Width :
1.27m , 1.45m ,1.65m
Food grade :
yes
Monfilament :
yes
Hole size :
50 micron
Description

Food Grade Monfilament Nylon Filter Fabric Material 50 Nylon Micron Filter Screen ​


Product Introduction

Nylon mesh has the function of high temperature resistance and alkali resistance, and polyethylene has the function of acid resistance. Nylon net is the general term for these chemical fiber woven nets. Nylon nets include: (nylon blends,) nylon nets, polyethylene nets, and sunshade nets.

It is generally plain weave, semi-twisted weave, and full-twisted weave.

Product Specification

Fabric number Mesh count Thread diameter Mesh opening Opening Thickness Weight
No. cm inch um micron % um g/m2
JPP4 4 10 550 1950 61 950 262
JPP5 5 12 500 1500 56 850 271
JPP6 6 16 400 1267 58 780 208
JPP7 7 18 350 1079 57 675 186
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 861 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
12 30 300 533 41 585 234
JPP14 14 35 250 464 42 470 190
JPP16 16 40 200 425 46 370 139
16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 128 38 145 62
JPP56 56 140 61 118 44 85 44
JPP59 59 150 61 109 41 98 46
JPP64 64 160 61 95 37 105 50
JPP72 72 180 50 89 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 43 57 32 65 35
JPP120 120 305 43 40 23 70 42
JPP130 130 330 43 34 20 75 45
JPP140 140 355 38 33 21 67 48
JPP150 150 380 38 29 19 68 51
JPP165 165 420 35 26 18 62 47


Product Features

Nylon mesh has the characteristics of high toughness, good elasticity, corrosion resistance, oil resistance, water resistance, abrasion resistance, high temperature resistance, and weather resistance; it also has the characteristics of good insulation and low lubrication coefficient.

Product Application

It is widely used in industrial filtration, petroleum, chemical, printing and other products with complete specifications and excellent quality. Special specifications can be customized. And silk screen printing, paint filtration, fishing and other industries. Nylon mesh has the effect of high temperature resistance and alkali resistance, and the polyethylene mesh has the effect of acid resistance, and each has its own advantages.

How to choose

Mesh Count is the number of threads per inch in the direction of warp and weft of the fabric.The mesh count is indentical in both warp and weft direction for Share Fitration's woven mesh.

Thread Diameter is specified as the diameter of the thread in microns.Yarn sizes in both warp and weft directions are the same.

Mesh Opening is the size or space between threads.The mesh opening is the result of the combination of the mesh count and yarn size.Mesh opening will determine the size or amount of material that will pass through the fabric.

Food Grade Monfilament 50 Micron SGS Nylon Filter Mesh

Food Grade Monfilament 50 Micron SGS Nylon Filter Mesh

Food Grade Monfilament 50 Micron SGS Nylon Filter Mesh

Food Grade Monfilament 50 Micron SGS Nylon Filter Mesh
