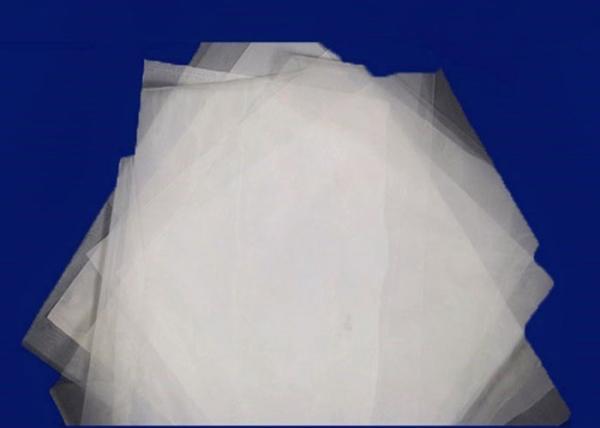

Custom Size Cut Polyester Filter Disc Square Plain Woven
Custom Size Cut Polyester Filter Disc Square Plain Woven
Custom Size Cut Polyester Filter Disc Square Plain Woven
Custom Size Cut Polyester Filter Disc Square Plain Woven
Specifications
Brand Name :
R&K
Model Number :
PF-0607-3
Certification :
SGS,ROHS,FDA
Place of Origin :
Hebei,China
MOQ :
10000 pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
10000 pieces per day
Delivery Time :
3-7 dayas
Packaging Details :
plastic bag + carton box
Name :
Polyester Nylon Filter Mesh White Color Filter Cloth Food Grade Used For Filter
Color :
White Yellow
Aperture :
120 micron
Size :
8*8cm
Type :
Deep processing products
Features :
High tension
Matetial :
100% nylon
Hole shape :
Square
Description

Custom Size Cut Square Plain Woven Polyester Nylon Filter Discs

Quality Control
Reking has undergone strict inspections before leaving the factory to ensure the quality of all micron filter cloths, so as to ensure that customers can get the perfect quality polyester nylon filter.

· Mesh Count check
· Thickness detection
· Thread diameter and hole size inspection
· Tensile strength inspection

Appication of the polyester filter mesh :

The polyester filter mesh can be made for any else size filter bags,and the usage are very widely.

It can be used in Tea, wine, milk tea, yoghurt, soybean milk, edible oil, milk, coffee, MSG, fish, aquaculture, impurities filter, food and other screen and filtration and so on.

Features of thre polyester filter mesh :

It is characterized by high toughness, good elasticity, acid resistance, oil resistance, alkali resistance, abrasion resistance and temperature resistance.It has the characteristics of good insulation and low lubrication coefficient.

Specification of the polyester filter mesh :

Mesh Count
Diameter
(Mesh/inch μm)		 Mesh
Count
(Mesh
/Inch)		 Weave Aperture
(μm)		 Thread
Diameter
(μm)		 Opening
(%)

Thickness

(μm)

 Thickness
Tollerance
(+/- μm)		 Theoretical
lnk(cm3/m2)		 Weight
(g/m2)
13-150PW(SL) 33 1:1 619 150 64 300 14 128 60
21-80pw(S) 55 1:1 296 80 69 120 9 79 35
21-150PW(SL) 55 1:1 326 150 46 260 14 118 121
24-100PW(T) 60 1:1 316 100 57 136 11 65 81
28-140PW(SL) 70 1:1 217 140 40 195 13 76 125
32-55PW(S) 81 1:1 257 55 67 103 6 67 28
32-64PW(S) 81 1:1 248 64 63 95 6 56 32
32-100PW(T) 81 1:1 212 100 45 165 8 73 75
36-90PW(T) 92 1:1 183 90 44 150 8 65 68
39-55PW(S) 100 1:1 177 55 56 88 6 55 30
40-80PW(T) 103 1:1 166 80 44 133 7 59 60
43-80PW(T) 110 1:1 149 80 41 130 7 53 64
47-45PW(S) 120 1:1 166 45*2 61 80 6 42 40
47-55PW(S) 120 1:1 152 55 51 88 6 48 34
48-70PW(T) 122 1:1 133 70 41 115 6 47 55
53-45PW(S) 135 1:1 143 45*2 57 79 7 41 46
54-64PW(T) 137 1:1 115 64 39 100 5 39 51
54-70(PW)HD 137 1:1 109 70 35 116 6 40 62
61-64PW(T) 155 1:1 90 64 31 101 5 30 58
64-55PW(S) 160 1:1 98 55 38 98 5 36 48
68-55PW(S) 175 1:1 85 55 34 85 4 28 48
68-64PW(T) 175 1:1 78 64 28 105 5 30 65
72-48PW(S) 182 1:1 90 48 36 78 5 33 39
72-55PW(T) 182 1:1 85 55 30 90 5 27 51
77-48PW(S) 195 1:1 77 48 35 80 4 28 42
77-55PW(T) 195 1:1 67 55 27 88 4 24 55
80-48PW(T) 200 1:1 72 48 33 74 4 25 56
90-48PW(T) 230 1:1 56 48 25 78 4 19 50
100-40PW(T) 255 1:1 58 40 33 63 3 21 37
110-40PW(HD) 280 1:1 48 40 27 64 3 17 40
120-31PW(S) 305 1:1 49 31 35 49 3 17 26
120-34PW(T) 305 1:1 45 34 30 55 3 16 35
120-40PW(HD) 305 1:1 37 40 20 63 3 13 44
130-34PW(T) 330 1:1 40 34 27 55 3 15 37
140-31PW(S) 355 1:1 36 31 26 48 2 12 30
140-34PW(T) 355 1:1 31 34 20 53 3 10 39
140-34TW(T) 355 1:1 33 34 21 56 3 12 41
150-31PW(S) 380 1:1 32 31 23 49 3 11 32
150-34PW(T) 380 1:1 23 34 13 55 3 6.5 42
165-34PW(S) 420 1:1 23 31 15 48 2 7 36
