Easy Clean Wedge Wire Filter , Steel Sieve Mesh Sheets High Tensile
Easy Clean Wedge Wire Filter , Steel Sieve Mesh Sheets High Tensile
Specifications
Brand Name :
R&K
Model Number :
WD-09
Certification :
SGS
Place of Origin :
Hebei , China
MOQ :
1 squaremeter
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union，PayPal
Supply Ability :
1000 squaremeter per week
Delivery Time :
5-8 work days
Packaging Details :
Waterproof paper inside,plastic cloth outside and then in wooden case.
Feature :
Durable
Type :
Welded mesh
Filter rating :
99%
Application :
Filter mine
Weave style :
welded
Sample :
offer sample
Description

High tensile steel crimped wire mesh sheet screen for mine sieving

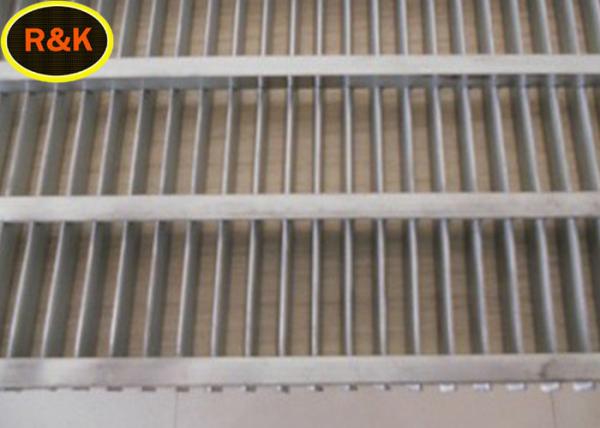

Description of wedge wire screen

The wedge wire mesh is formed by winding a longitudinal wire around a support rod placed longitudinally. All wires and rods are resistance welded at each contact point.


Various combinations of contours and support rods, as well as various apertures between the lines and rods, allow us to design screens based on your technical or cosmetic specifications. Plates, cylinders, tubes and baskets, inlet screens, profile lines and wedge-shaped wire filter elements are new screens made by Atlas. These innovative products enable you to get the most cost-effective wedge mesh and wire mesh

Application of wedge wire mesh

Used for separation, sizing, dewatering and sieving of liquids, gases and solids in oil wells, wells and the chemical industry.

Feature of the wedge wire mesh

The wedge-shaped tapered opening is gradually widened to improve the dewatering efficiency
Non-blocking, unlike grids, only two points of contact can retain particles
Slot size from .002 to 1"
Durable and capable of carrying heavier loads without the need for support structures
One-piece construction
Form manufacturing and molding flexibility
a wide variety of materials
Low maintenance and easy to clean
Tolerances range from + .002 / - .001 to + / .005

Parameters of stainless steel wedge wire mesh

Surface Profile W H Material
10S 0.75 1.425 SS304, SS316/316L, Hastelloy,
Monel alloy of nickel and titanium,
and other stainless steel
11SL 0.75 1.8
22S 1.8 3.7
4S 0.45 1.2
50SL 3.4 7.5
Support Profile W H Material
Q22 2 2.28 SS304, SS316/316L, Hastelloy,
Monel alloy of nickel and titanium,
and other stainless steel
Q35 3 5
Q53 5 3
D56 5 5.6
D45 3.8 6.0
