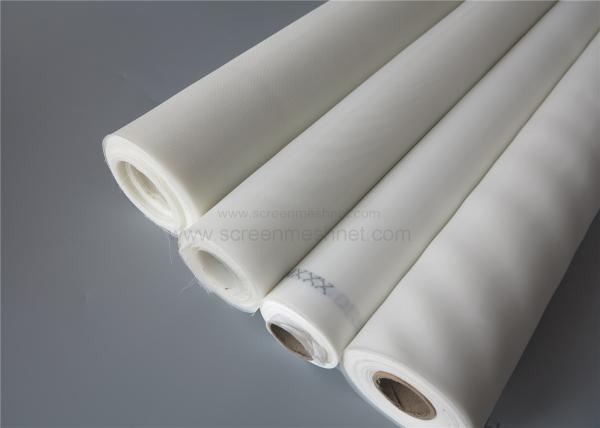

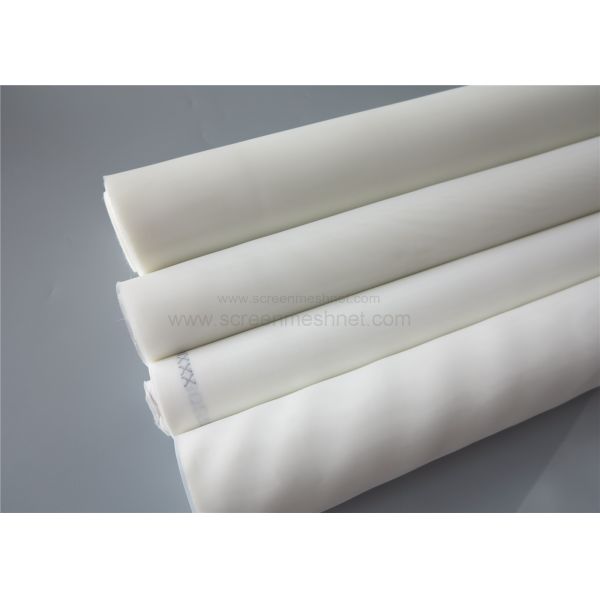

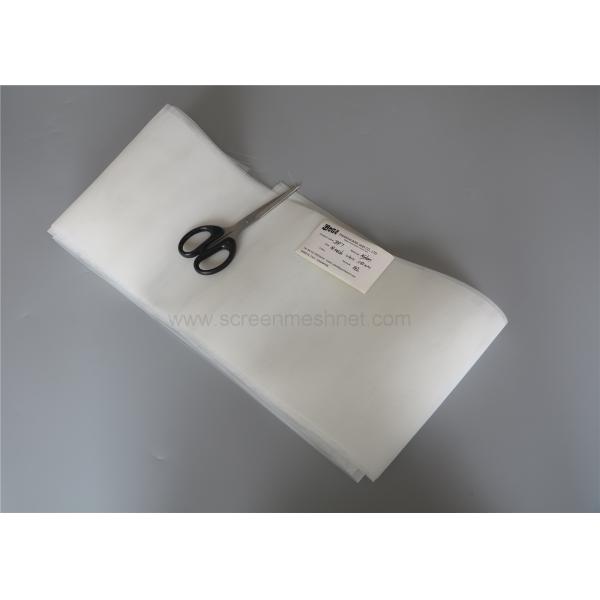

food grade 10 25 50 100 150 200 250 300 400 500 micron monofilament nylon filter screen mesh
food grade 10 25 50 100 150 200 250 300 400 500 micron monofilament nylon filter screen mesh
food grade 10 25 50 100 150 200 250 300 400 500 micron monofilament nylon filter screen mesh
food grade 10 25 50 100 150 200 250 300 400 500 micron monofilament nylon filter screen mesh
food grade 10 25 50 100 150 200 250 300 400 500 micron monofilament nylon filter screen mesh
food grade 10 25 50 100 150 200 250 300 400 500 micron monofilament nylon filter screen mesh
Specifications
Brand Name :
GeZi
Model Number :
GZ plastic window screen
Certification :
ISO9001
Place of Origin :
Hebei, China (Mainland)
MOQ :
500 Meters
Price :
Price discussion
Payment Terms :
L/C, T/T, Western Union, MoneyGram，Paypal
Supply Ability :
300000 Meters per month
Delivery Time :
within 7-15 days
Packaging Details :
mesh roll on paper scroll, packing in carton and plastic bag, and then in plastic woven bag or in carton or in wooden case, it also can be packed as customers requirement.
Color :
White
Material :
100% Nylon
Length :
Normal Is 100m /roll And Customized
Width :
1.0, 1.27m, 1.45m, 1.65m, 2.2m, 3.33m
Characteristics :
Corrosion-resistant
Use for :
For Filter
Specification :
200 Micron, 300 Micron, 350 Micron,400 Micron Etc.
Grade :
Food Grade And Industrial
Description

food grade 10 25 50 100 150 200 250 300 400 500 micron monofilamentnylon filter screen mesh

Features:

1.reliable mechanical resistance, high elasticity;

2.corrosion resistance

3.alkali resistance (attention: not suitable for strong acid solvent)

4.low density, light weight;

5.wear resistance;
food grade 10 25 50 100 150 200 250 300 400 500 micron monofilament nylon filter screen meshfood grade 10 25 50 100 150 200 250 300 400 500 micron monofilament nylon filter screen meshfood grade 10 25 50 100 150 200 250 300 400 500 micron monofilament nylon filter screen mesh

Chemical properties:

• Ultraviolet absorbency(250-320mm):≤0.1

• Fluorescent substance:non fluorescent substance

• Evaporation residue(mg):non evaporation residue


Biologic properties:

• Heat source:the interior toxicity in bacteria≤0.5Eu/ml

• Hematolysis:hematolysis rate≤0.8%

• Acute general toxicity:no reaction of acute general toxicity

• Intracutaneous irritation: no reaction of intracutaneous irritation

• Sensitization of skin: no reaction of sensitization of skin

Nylon Filter Mesh Specification
Model Mesh/cm Mesh/inch Aperture
(μm)		 Thread Dia.
(μm)		 Open Area
(%)		 Thickness
(μm)		 Theoretical Ink
(cm3/m2)
36-100 36 90 178 100 41 195 86
40-100 40 100 150 100 36 192 95
44-100 44 110 127 100 31 175 105
48-80 48 120 128 80 38 150 73
56-60 56 142 120 60 44 110 48
59-60 59 150 110 60 42 98 50
64-60 64 160 100 60 38 120 55
72-50 72 183 89 50 41 90 44
80-50 80 203 75 50 36 93 48
88-40 88 224 74 40 42 65 34
96-40 96 244 64 40 38 76 37
100-40 100 254 60 40 36 78 39
104-40 104 264 56 40 34 79 40
120-40 120 305 43 40 27 80 46
Note:The above datas are theoretic,please reference the actual data if there is a difference!

Application


Widely used in filtering, textile printing and dyeing, printing plate, electronic printing, ceramics, glass printing and other industries.

widely used in filteration (wather, nut milk, flour, juices. soybean milk, oil, cheese, air purification, power coating filtering in industry etc. ), printing and dyeing, the industries of petroleum, chemical, metallurgy, cement, environmental dedusting etc.

Can be pieces, bags, discs, any size as you reque

food grade 10 25 50 100 150 200 250 300 400 500 micron monofilament nylon filter screen mesh
