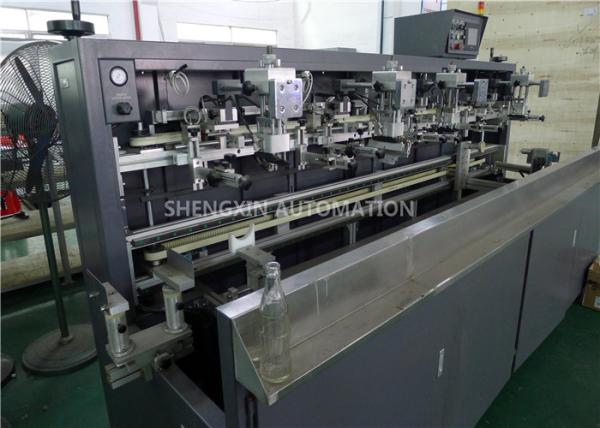

900pcs / hr Automatic Screen Printing Machine for Liqour / Wine / Beer Glass Bottle
900pcs / hr Automatic Screen Printing Machine for Liqour / Wine / Beer Glass Bottle
900pcs / hr Automatic Screen Printing Machine for Liqour / Wine / Beer Glass Bottle
900pcs / hr Automatic Screen Printing Machine for Liqour / Wine / Beer Glass Bottle
900pcs / hr Automatic Screen Printing Machine for Liqour / Wine / Beer Glass Bottle
900pcs / hr Automatic Screen Printing Machine for Liqour / Wine / Beer Glass Bottle
Specifications
Brand Name :
SX
Model Number :
SX-104
Certification :
CE, ISO9001:2008
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
20 Days After Received Down Payment From Buyer
Packaging Details :
Wooden Case Package
Dimensions(L*W*H) :
2900*1200*1800mm
Type :
Automatic Screen Printing Machine
Condition :
New
Weight :
1500kg
Printing Speed :
900 Pieces Per Hour
Style :
Screen-process Printing Press
Color & Page :
Three / Four Printing Press
Application :
Glass Bottles Printer
Description

900pcs / hr Automatic Screen Printing Machine for Liqour / Wine / Beer Glass Bottle


Applications:

It's specially designed for screen printing on different kinds of glass containers , such as wine bottles, beer bottles, drinking bottles and glasses, goblets. It can print three colors or four colors according to your need. It is widely used both domestic and global market. The project requires very small investment and ensure quick payback. So it is accepted by many companies.

900pcs / hr Automatic Screen Printing Machine for Liqour / Wine / Beer Glass Bottle

Features:


1. It uses a very simple technique to settle registration problem without positioning point. The key technique is to print with hot melted high temperature glass ink, then burn in a high temperature oven so that the ink merges with the glass. The image is firm and bottle can be washed repeatedly to prevent environmental pollution and save costs.


2. The innovative transmission system is very steady in passing the bottles, easy to shift between different types of bottles, easy to operate.


3. This machine allows to print the glass bottles up to 3 colors.


4. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable at high speed.


5. According to the characteristics of products, this machine can be equipped with kinds of functions such as automatic loading and unloading, non-printing without bottles, etc.


6. All components are from German, USA and Japan to ensure the machine quality and stability of printing.


7. Three languages such as Chinese, English and Spanish supported.


8. We can customize machine according to the special products.



Machine Parameters:

Printing speed: 900pcs/hr
Printing size: Max.Dia 100mm
Max.Length 320mm
Size: 2900*1200*1800mm
Power: 2.2KW, 220V

Oven diagram:
Oven data:
Size: 30*2*1m
Running speed: 50-500 mm/min
Preheating section: 5m
High temperature section: 6m
Slow cooling section: 11m
Quick cooling section: 4m
Max. Temperature: 620
Max.load: 90kg/m
Power: 160w
Energy saving ratio: 30%

Machine Details:

900pcs / hr Automatic Screen Printing Machine for Liqour / Wine / Beer Glass Bottle
