Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle
Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle
Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle
Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle
Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle
Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle
Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle
Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle
Specifications
Brand Name :
Shengxin
Model Number :
SX-102-A
Certification :
CE, ISO9001:2008
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
20 Days After Received Down Payment Fr Buyer
Packaging Details :
Wooden Package
Type :
Automatic Screen Printing Machine
Style :
Screen-process Printing Press
Color & Page :
Multi-Colour Printing Press
Application :
Glass/Plastic/Metallic Bottles Printer
Dimensions(L*W*H) :
1980*1000*1500mm*N
Condition :
New
Description

Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle

Descriptions:

The machine is multi color automatic screen printer with multi function. It is suitable to print several kinds of round, oval, flat parts. Because of its high quality cost effective, this machine is widely accepted by the small and medium-sized enterprises. It is widely used to pack glass bottles, alcohol bottles and cosmetic container, etc.

Applications Scope:

Plastic Tube, Cosmetic Bottles, Milk Bottles, Medical Bottles, Drinking Bottles, Lubricating Oil Bottles, Glass Silicon, Pen Sleeves, Ceramic, Paint Container, Paint Barrel, etc.

Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle

Features:


1. The innovative transmission system is very steady in passing the bottles, easy to shift between different types of bottles, easy to operate.
2. This machine allows to print up to 5 colors, each module machine is independent and synchronous drive, accurate registration between colors, stable and reliable performance.
3. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable at high speed.
4. All components are from German, USA and Japan to ensure the machine quality and stability of printing.
5. Three languages such as Chinese, English and Spanish supported.
6. We can customize machine according to the special products.

Functions:

According to the characteristics of products, this machine can be equipped with kinds of functions such as automatic loading and unloading, orientation, flame treatment, dedusting, automatic registration, non-printing without bottles , and UV Curing system, etc.

The Specifications:

Printing speed: Round 4000pcs / hr Oval 5000pcs / hr
Printing size: Round Dia.20-100mm Length 25-300mm
Oval Width 25-120mm Length 25-300mm
Compressed air: 0.6MPa
LPG: 0.15MPa
Machine size: Main/Aux 1980*1000*1500mm
Unload conveyor 1700*500*700mm
Unit Power: Voltage 380VAC, 3-PHASE, 50HZ
UV curing power: 5KW
Motor Power: 1.5KW

Machine Details:

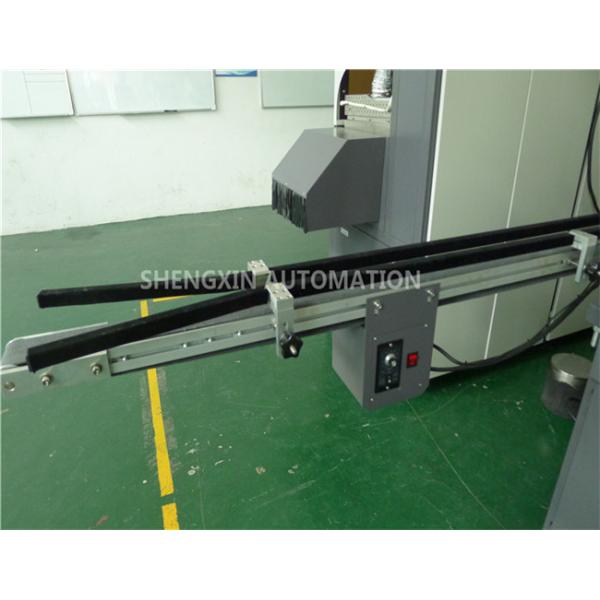

Uploading conveyor

Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle

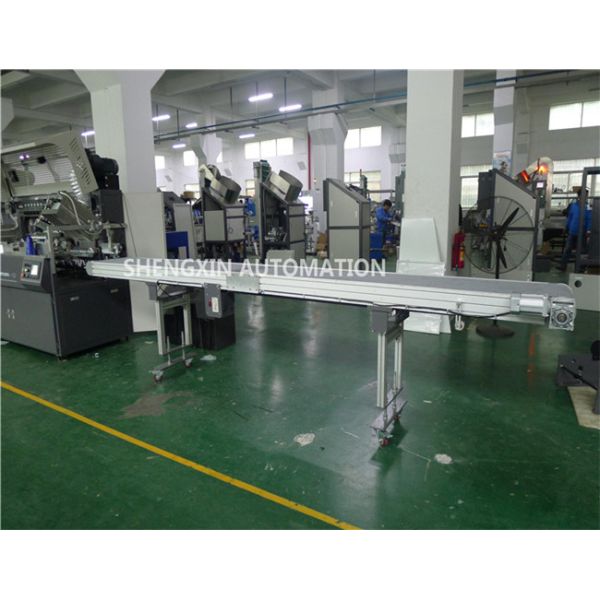

Downloading conveyor

Auto Screen Print Machine for Three / Four / Five Colors Plastic Bottle
