SX -6090V Semi Auto Electric Flat Screen Printing Machine with Vacuum
SX -6090V Semi Auto Electric Flat Screen Printing Machine with Vacuum
SX -6090V Semi Auto Electric Flat Screen Printing Machine with Vacuum
SX -6090V Semi Auto Electric Flat Screen Printing Machine with Vacuum
SX -6090V Semi Auto Electric Flat Screen Printing Machine with Vacuum
SX -6090V Semi Auto Electric Flat Screen Printing Machine with Vacuum
Specifications
Brand Name :
SX
Model Number :
SX-6090V
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
One set
Price :
Negotiation
Supply Ability :
100 set per year
Delivery Time :
5 days after receiving downpayment
Packaging Details :
Wooden Case
Model No. :
SX-6090V
Worktable size :
700x1000mm
Max. print size :
600x900mm
Print capacity :
660 cycles/hour
Package :
Wooden Case
Certificate :
CE ISO
Description

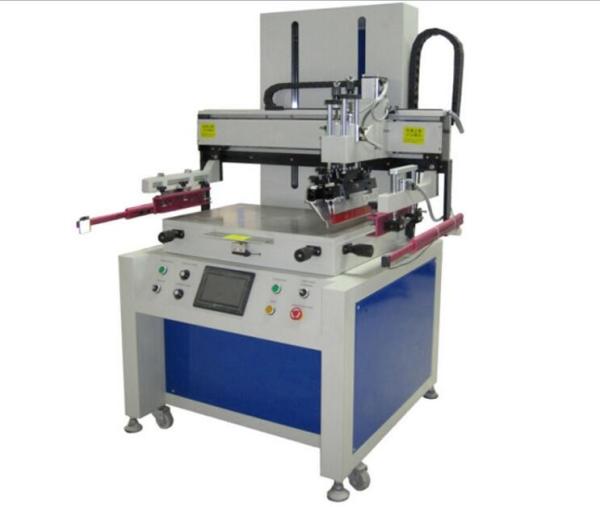

SX-6090V Semi Auto Electric Flat Screen Printing Machine with Vacuum

Applications:

1, This flat screen lifting method allows the operator to easily load and unload small injection molded parts such as; cigarette lighters, ice scrapers, flying discs (aka Frisbee™), first aid kit boxes, display boxes, CD's & DVD's, PCB board, plastic sheet and much more.

2, Suit for industrial goods such as; circular saw blades, stamped steel panels, steel film and plate, chassies, and various automotive components. The horizontal printing axis is controlled pneumatically by a rodless cylinder and is quickly adjustable with quick release stop guides.

SX -6090V Semi Auto Electric Flat Screen Printing Machine with Vacuum

Features:

1, Electrical motor driven for screen frame up/down and horizontal printing.

2, PLC controlled, WEINVIEW touch screen.

3, Panasonic motor and frequency converter.

4, Vertical head lift with height adjustment.

5, X/Y/R positioning table with vacuum table.

6, Linear ball bearings on hardened shafts.

7, Squeegee angle and calibrated height adjustment.

8, Regulated squeegee pressure with pressure gauge.

9, Floor levelers & casters, Foot switch controlled.

10, Installed E-stop button and safety light curtain.

11, Screen frame with auto snap off when printing.

Specifications

Model No. SX-6090V
Max Printing Size 600x900mm
Working Table Size 700x1000mm
Max Print Capacity 660 Cycles/hour
Air Requirement 5 Bar
Drive AC motor
Voltage 110-220V 50-60HZ
Machine size 1500x1100x1700mm
Crate size 1780x1220x1920mm
Machine weight 490KG
