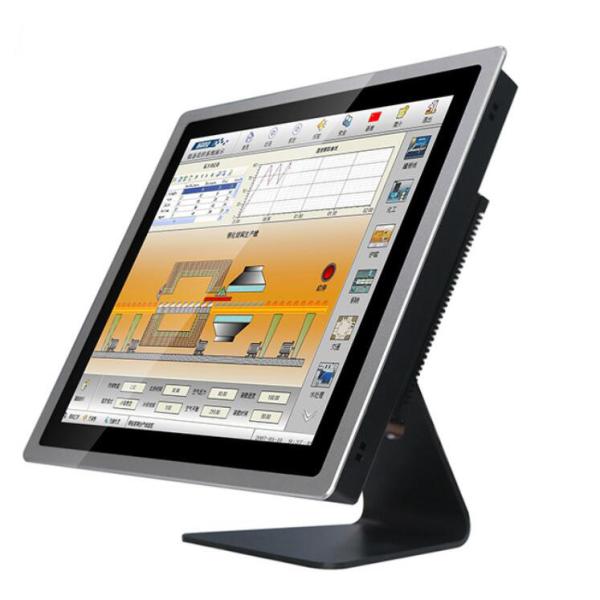

23.6 Inch Fully Sealed Aluminium Alloy Casing Dustproof Waterproof Industrial Panel PC
23.6 Inch Fully Sealed Aluminium Alloy Casing Dustproof Waterproof Industrial Panel PC
23.6 Inch Fully Sealed Aluminium Alloy Casing Dustproof Waterproof Industrial Panel PC
23.6 Inch Fully Sealed Aluminium Alloy Casing Dustproof Waterproof Industrial Panel PC
23.6 Inch Fully Sealed Aluminium Alloy Casing Dustproof Waterproof Industrial Panel PC
23.6 Inch Fully Sealed Aluminium Alloy Casing Dustproof Waterproof Industrial Panel PC
Specifications
Brand Name :
Shine Star/OEM
Place of Origin :
Guangdong, China
Packaging Details :
Depend on the final design you choose
Supply Ability :
1000 units per month
Price :
To be negotiated
Certification :
CE-LVD, CE-EMC, FCC, ROHS, ISO9001
MOQ :
1 unit
Delivery Time :
15 work days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Model Number :
SY236C
Metal Housing+Tempered Glass :
Aluminum alloy frame+tempered glass
Touch Screen Type :
Capacitive touch,Multi-points, 10-points
Full HD 1080P :
Support
Brightness :
350 cd/m2 (upto 3500 cd/m2 high brightness as options)
Built-in Camera :
Option
OS :
Android, Windows, Ubuntu, Linux as options
Input Voltage :
12V 24V as options
Ports :
USB, HDMI, Ethernet
Description
Product Description

23.6 Inch Fully Sealed Aluminum Alloy Casing Dustproof Waterproof Industrial Panel PC

Product specifications:

Display Panel Details
Display Panel Brand
LG,Samsung,AUO,Chimei,etc... original brand new and grade A+
Size
23.6 inch
Customize Frame Color
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material
Durable aluminum alloy frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
Display Screen Parameters
Display Ratio
16:9
Contrast Ratio
1000:1
Brightness
350 cd/m2 (upto 3500 cd/m2 high brightness as options)
Colour
16.7M
Resolution
1920*1080
Viewing Angle
178/178
PC Configuration
CPU
CPU Rockchip 3566 Quad Core
Chipset Frequency
2.0Ghz
GPU
Mali-G52-2EE
Ram and Flash
4GB DDR3 SDRAM and NAND FLASH: 32GB
WiFi
802.11n Wifi Integated
Operation System
Android, Win7 , Win8, Win10, Ubuntu, VXWORKS, QNX, Linux etc...
Touch Screen
Touch Screen Type
Capacitive;Resistive(4-wire/5-wire); SAW/IR as options
Touch Screen Interface
Serial (RS232) or USB or COM as options
Surface Hardness
6H
Power Supply
Standby
≤3W
Working
≦15W
Environmental
Operating Temperature
-10 ~ 60°C
Storage Temperature
-20 ~ 70°C
Relative Humidity
5%~95% (Non condensation)
Shake: SSD applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: SSD applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
Waterproof
Front panel IP65

Features:

1.Versatile Installation Options: This all-in-one PC allows for flexible installation methods, including embedding it directly into surfaces,
hanging it on walls, or placing it on desktops, providing users with multiple placement options to suit their specific needs and space constraints.
2.IP65 Protection Rating: Equipped with an IP65 rating, this industrial monitor ensures protection against dust ingress and low-pressure water jets,
making it ideal for use in harsh environments or areas prone to dust and moisture, such as factories, warehouses, and outdoor installations.
3.Robust Sheet Metal Frame: The durable sheet metal shell not only provides a sleek appearance but also contributes to its
resistance to impacts and corrosion, ensuring long-term reliability and stability even in challenging conditions.
4.Capacitive Touchscreen Technology: The touchscreen monitor utilizes capacitive technology, which enables smooth and responsive operation
with high sensitivity and accuracy, allowing for seamless interaction and multitouch capabilities, enhancing user experience and productivity.
5.Wide Range of Applications: This industrial-grade computer is well-suited for a variety of industries, including manufacturing, automation,
transportation, and more. Its robust design and advanced features make it perfect for control systems, data acquisition, process monitoring,
and human-machine interface (HMI) solutions.
