Specifications
Brand Name :
Shine Star/OEM
Place of Origin :
Guangdong, China
Packaging Details :
Depend on the final design you choose
Price :
To be negotiated
Certification :
CE-LVD, CE-EMC, FCC, ROHS, ISO9001
MOQ :
1 unit
Delivery Time :
15 work days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per month
Type :
Industrial Monitor
Logo :
OEM/customized
metal housing+tempered glass :
can be customized
Touch screen :
capacitive touch; resistive touch as options
Interface :
VGA, DVI, HDMI
Full HD 1080P :
support
Touch screen type :
COM port or USB port to communicate with the host
Application :
Industrial Automation
Description
Product Description

Rugged Industrial Embedded open frame 7 inches black pure flat capacitive touch screen LCD monitor 12V 24V for kiosk ATM OEM/ODM

Customize Frame Color
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
body material
It is an ultra-thin industrial touch monitor that support HDMI, VGA and DVI inputs, front panel made of metal sheet and toughened glass as surface, support 12V DC power input, optional DC 24V input. touch screen flexibility to choose the COM port, USB port to communicate with the host.
Durable aluminum frame & toughened glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
General
Control button:
Set Contrast ratio and Luminance via OSD at the back panel
Dimensions(WxHxD)

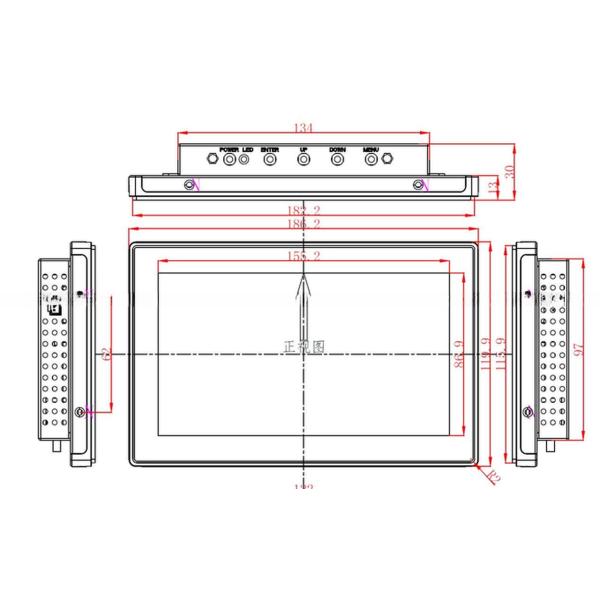

Pls reference the below size drawing
Cut size(WxH)
Pls reference the below size drawing
Box structure
Front panel: aluminum-magnesium alloy, anodized coating ;Back cover: SGCC, Ground isolation protection
N.W
1 kgs
Mounting
Support Embedded, Wall mounted, Desktop and VESA mounting
Voltage
DC 12V, support reverse polarity protection (optional DC 24V)
Power
5W
Signal input
VGA & DVI-D & HDMI
LCD
Size
7" inch TFT
Resolution
800x480 / 1024x768
Colors
16.7M
Active Area
154.08x86.58 mm
Backlight
LED
MTBF
30000hrs
Pixel Pitch(H x V)
0.2025x 0.2025
Brightness
500cd/㎡
Contrast Ratio
300:1
Viewing Angle
80/80/80/80
Touch Screen
Type
Capacitive touch screen
Resolution
4096 x 4096
Transmittance
> 81%
Controller interface
USB/ RS-232C
Driver Support
WinXP, Win7, Win8, Win10, Linux, Android, Ubuntu, Debian etc......
Response Time
< 5ms
Surface Hardness
Mohs' Number 3H
Click life
250g / 35,000,000 times
Draw life
250g / 5,000,000 times
Environmental
Work Temperature
-20 ~ 60°C (-4~140°F)
Storage Temperature
-30 ~ 80°C (-22 ~ 176°F)
Relative humidity
5~95% (Non condensation)
Shake: SSD applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: SSD applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
EMC
CE/FCC Class A
Water-proof
Front panel IP65

Features.

Our industrial touchscreen monitor are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.

Our industrial touchscreen monitor provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touchscreen monitor are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel pc have 8 inches to 55 inches

Specialties.

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. All steel construction designed for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Win7/10/11/XP, Linux OS, Android, Mac OS, Ubuntu, Debian

10. CE, FCC, RoHS, ISO9001:2008 compliance.

11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional

12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

Rugged Industrial Embedded Open Frame 7 Inches Black Pure Flat Capacitive Touch Screen LCD Monitor 12V 24V
