Specifications
Brand Name :
Shine Star/OEM
Place of Origin :
Guangdong, China
Packaging Details :
Depend on the final design you choose
Supply Ability :
1000 units per month
Price :
To be negotiated
Certification :
CE-LVD, CE-EMC, FCC, ROHS, ISO9001
MOQ :
1 unit
Delivery Time :
15 work days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Full HD 1080P :
Support
Touch screen type :
COM port or USB port to communicate with the host
Size :
18.5 Inch
Installation :
Embedded Standard VESA Holes
Warranty :
1 Year 3 Years Optional
Material :
Metal Case + Toughened Glass Panel
Panel Type :
IPS Panel
Port :
All China ports
Description
Product Description

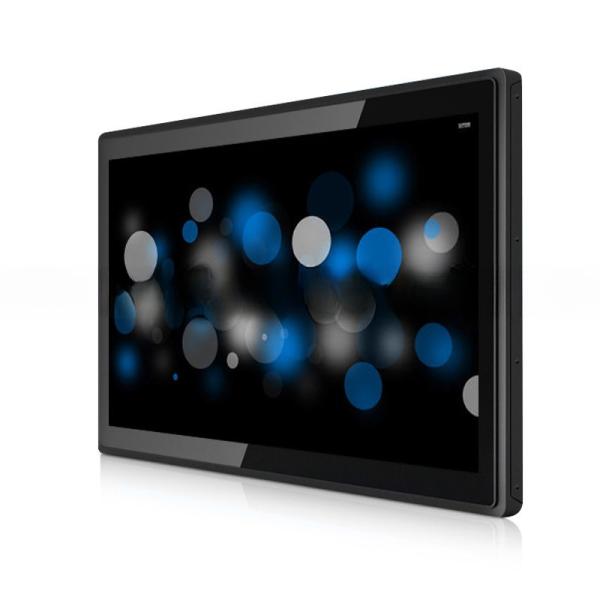

Rugged 18.5 inch open frame LCD LED monitor touchscreen VGA HDMI USB LCD display with metal casing

Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
LCD display panel specification:
Spec: 18.5" inch LED
LCD Ratio: 16:9
Display Area: 409.8x30.4 mm
Screen Resolution: 1366×768 / 1920×1080
Output Resolution:1080P
Viewing Angle: 89/89/89/89
Brightness: 300 nits
Contrast: 1000:1
Colour: 16.7M
Display Panel Details
display panel brand
LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
Size
7 inch to 55 inch
Customize Frame Color

Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
body material
Durable metal case + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation, smart home and other industrial applications.
Function (Interface):
VGA, HDM1, DP, Audio, USB etc...as options
Touch Screen
TouchScreen Type
10-Point capacitive touchscreen as options
TouchScreen interface
Serial (RS232) or USB or COM as options
Surface Hardness
Mohs' Number 7; Transmittance >75%
Power Supply
Input Voltage
DC 12V or 24V
Output Rating
≦15W
Environmental
Work Temperature
-20 ~ 60°C (-4~140°F)
Storage Temperature
-30 ~ 80°C (-22 ~ 176°F)
Relative humidity
5~95% (Non condensation)
Shake: SSD applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: SSD applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
EMC
CE/FCC Class A
Water-proof
Front surface IP65 protection grade

Features.

Our industrial touchscreen monitor are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.

Our industrial LCD touchscreen monitor provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touchscreen monitor are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our industrial touchscreen monitors have 7 inches to 65 inches as options.

Specialties.

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing

2. Exceptional quality and highly engineered industrial monitors

3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc

4. All steel construction designed for harsh and industrial environments

5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis

6. Meets NEMA 4/4x/12 and IP65 standards

7. Multiple mounting options (75*100mm VESA mount and clamps mounting)

8. Accuracy in high-use applications

9. Supports Win10/11, Linux OS, Android, Mac OS, Ubuntu, Debian

10. CE, FCC, RoHS, ISO9001:2008 compliance.

11. VGA, DVI, support HDMI, AV, S-Video, BNC multiple inputs/outputs optional

12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
18.5" inch Size Drawing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Product Details
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
capacitive touchscreen function.
10-point touchscreen. Multi-touch

Front Surface IP65 protection grade

Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing

Desktop mounting.

Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing

Wall mounting type.

Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing

Embedded type.

Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing

Desktop type.

Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Packing & Delivery
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Our Service

Warranty: 12 months warranty & Life-time maintenance

Trade Terms: EX-Works, FOB, C&F, CIF, DP, DA

Payment terms : T/T bank wire, Western Union, PayPal, L/C, MoneyGram, Cash, Trade assurance.

Shipping: By sea, by air and by international express ......

Certifications
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
Rugged 18.5 Inch Open Frame LCD LED Monitor Touchscreen VGA HDMI USB LCD Display With Metal Casing
FAQ

1) Q:What is the minimum order quantity?

A: Qty: 1 unit. Different order quantity different price.

2) Q:What payment methods your company accept?

A:We accept most often payment methods,but mainly accept bank wire transfer T/T, L/C at sight, Western Union.

3) Q:How long is the warranty time for your products?

A: We warranty 1 year for all of our products and supply life-time maintenance.


During 1 year warranty period, for small part defective,we will send replacement parts for free of charge to customers,so customers can replace defective parts by new parts by themselves. We also will pay for shipping cost. For big defective problem,customers have to ship back defective units to us and we will repair or replacement for them for free of charge. Customers will pay for shipping cost from their address to China and we will pay for shipping cost from China to customers' address.

For life-time maintenance (out of 1 year warranty period),any defective parts or units,customers will pay for replacement parts and shipping cost.We will charge a bottom cost for parts.

The man-made damage and misusing damage is not under warranty.

4) Q:I haven't done business with your company before,how can i trust your company?

A:Our company is a registered golden member on Alibaba sit for more than 15 years. We have many business partners and order histories all over the world.

5) Q:what's the shipment terms and delivery time of your company?

A: It depends on order quantity, shipping address and shipping methods.

6) Q:Do you give any discount ?

A: Different order quantity different price. We will always offer customers the lowest price based on the best quality.

7) Q:I would like to ask you if it's possible to have my logo on the product.

A: Logo printing service is available.
