Industrial Wall Mounted Integrated 23.6 Inch LCD LED USB Touch Screen Monitor Display
Industrial Wall Mounted Integrated 23.6 Inch LCD LED USB Touch Screen Monitor Display
Industrial Wall Mounted Integrated 23.6 Inch LCD LED USB Touch Screen Monitor Display
Industrial Wall Mounted Integrated 23.6 Inch LCD LED USB Touch Screen Monitor Display
Industrial Wall Mounted Integrated 23.6 Inch LCD LED USB Touch Screen Monitor Display
Industrial Wall Mounted Integrated 23.6 Inch LCD LED USB Touch Screen Monitor Display
Industrial Wall Mounted Integrated 23.6 Inch LCD LED USB Touch Screen Monitor Display
Industrial Wall Mounted Integrated 23.6 Inch LCD LED USB Touch Screen Monitor Display
Specifications
Brand Name :
Shine Star/OEM
Place of Origin :
Guangdong, China
Packaging Details :
Depend on the final design you choose
Supply Ability :
1000 units per month
Price :
To be negotiated
Certification :
CE-LVD, CE-EMC, FCC, ROHS, ISO9001
MOQ :
1 unit
Delivery Time :
15 work days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Model Number :
SY236W
Logo :
OEM/Customized
Resolution :
1920*1080
Touch Screen :
Capacitive touch,Multi-points, 10-points
Interface :
VGA/HDMI/DVI/USB/COM/Audio
Size :
23.6 Inch
Warranty :
24 months
Material :
Metal Case + Toughened Glass Panel
Port :
All China ports
Description
Product Description

Industrial Wall Mounted Integrated 23.6 Inch LCD LED Touch Screen Monitor Display

Product specifications:

Customize Frame Color
Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
Body Material
Durable sheet metal frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
Display Panel Details
Size
23.6 inch
Display Ratio
16:9 LED
Contrast Ratio
1000:1
Brightness
350cd/m2 (upto 3500cd/m2 high brightness as options)
Colour
16.7M
Viewing Angle
178/178
PC Configuration
CPU
Intel® Celeron J6412 quad core (2.0GHz)
RAM
DDR4 / 4GB
HDD
128GB SSD
Chipset
Intel Elkhart LakeK
WiFi
802.11n Wifi Integated
Operation System
Android OS, Windows OS, Linux OS...
Touch Screen
Detection Method
Capacitive touch,Multi-points, 10-points
Touch Screen Interface
COM Port Or USB Port To Communicate With The Host
Surface Hardness
6H
Power
Standby
≤3W
Working
≦15W
Metal Case
Interface

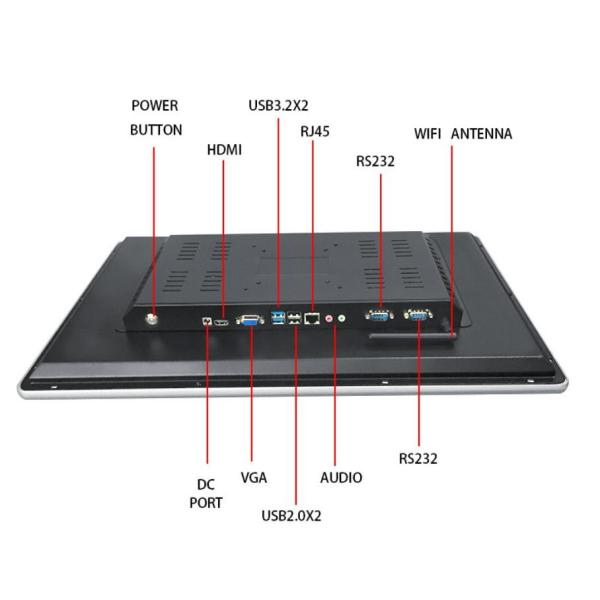

DC power port (12V), HDMI, VGA, USB3.0 *2; USB2.0 *2; RJ45 Ethernet Lan x 1; LIN out; Mic in; (2 COM RS232 ports as option)
Speaker
2*2W built-in stereo speakers
Heat Dispersion
Heat sink
Reset Button
External reset button for ease of operation
Network I/O
RJ-45 *1
Extension
Mini Printer or A4 laser printer, Camera, Coin acceptor, Biology fingerprint recognizer, IC/ID card reader, Standard US Keyboard or metal explode proof, keyboard, 16bit Metal Keyboard, Infrared receiver, 2/3 track Magnetic Card reader, Explode proof metal
Waterproof
Front panel IP65

we can provide:

1. Outstanding display with Brand HD LCD panel
2. Different Size: 7 inch ~ 82 inch
3. Customize Frame Color: Black, white, green, pink, ivory, wine red, blue, violet
4. Durable sheet metal frame + tempered glass to protect LCD panel against external impacts
5. With a professional research and develop team, we can provide personal design as your requirement.
6. With a qualified team for technical support and after-sales services,we can help you install and adapt well.
7. 1% parts of remote control, Power Cable,Warranty Card, User Manual.
8. One year warranty, lifetime maintenance, 24 hours service hot-line for inquiry and trouble-shooting.
