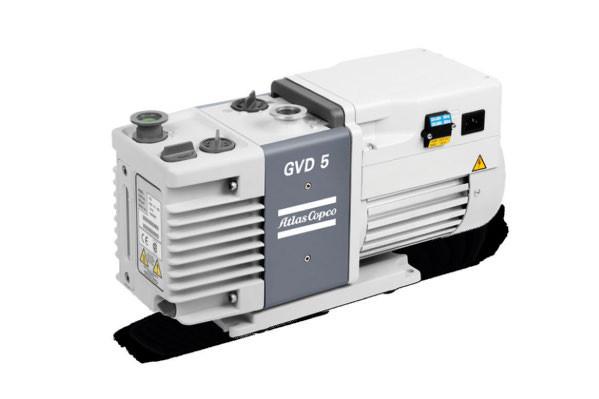

GVD 5 2 Stage Oil-Sealed Rotary Vane AC Vacuum Pump For Industrial
GVD 5 2 Stage Oil-Sealed Rotary Vane AC Vacuum Pump For Industrial
Specifications
Brand Name :
Atlas
Model Number :
GVD 5
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
be negotibled
Payment Terms :
T/T, Western Union, L/C, D/P, D/A
Supply Ability :
100pcs per month
Delivery Time :
7-30days
Packaging Details :
Atlas standard packing
Power Source :
Electric
Ultimate Vacuum :
15 Microns
Model :
GVD 5
Frequency :
50HZ,60HZ
Weight :
25kg
Outlet Port :
DN25
Warranty :
1 Year
Inlet Port :
DN25
Description

2 STAGE OIL-SEALED ROTARY VANE VACUUM PUMPS

GVD 5

FEAATURES AND BENEFITS

• 48 dB(A) and intrusive frequencies minimized.
• Dual mode. Suitable for high throughput and high vacuum applications.
• Easy-to-use gas ballast.
• Fast acting inlet valve for system protection.
• High torque, dual voltage/dual frequency motor,electronic start relay.
• Efficient high pressure lubrication.
• Oil-tight with printed gaskets, effective shaft seals.
• Clamped-in sight glass.
• Oil box well contains filling spills.
• Hi-tech polymer blades, large diameter,easy-clean oil passages.
• Consistent, built-in quality, cast bar construction.

TECHNICAL SPECIFICATIONS

GVD 5
50Hz 60Hz
Displacement 5.8m³h⁻¹/3.4cfm 70m³h⁻³/4.1cfm
Speed(Pneurop 6602) 5.1m³h⁻¹/3.0cfm 6.2m³h⁻¹/3.7cfm
Ultimate vacuum(total pressure)without gas ballast 2.0x10⁻³ mbar/1.5x10⁻³ Torr
Ultimate vacuum(total pressure) withgas ballast in position 2 1.0x10⁻¹ mbar/7.5x 10⁻² Torr
Inlet connection DN25 ISO-KF
Outlet connection DN25 ISO-KF
Max.outlet pressure 0.2 bar/3 psig gauge
Max.inlet pressure for water vapor 50 mbar / 38 Torr
Max.water vapor pumping rate 60 gh⁻¹
Weight(without oil) 25 kg / 55 lb
Motor power 450W 550W
Power connector 1-ph* IEC EN60320 C13
Maximum oil capacity 0.7 litre
Minimum oil capacity 0.42 litre
Noise level 48 dB(A) @ 50Hz

APPLICATIONS:

• Analytical instruments
• Centrifuges, ultra-high speed
• Coating
• Degassing/curing - oil, epoxy resin
• Distillation/extraction/filtration
• Freeze drying
• Furnaces

• Gas bottle filling/emptying
• Gel drying
• Glove boxes, ovens
• Laboratory bench top vacuum
• Leak detectors, Helium
• Load locks and transfer chambers
• Refrigeration manufacture

Dimensions:

GVD 5 2 Stage Oil-Sealed Rotary Vane AC Vacuum Pump For Industrial
