Flexible Coupling AC Vacuum Pump GVD 18 For Single Or Three Phase Motor
Flexible Coupling AC Vacuum Pump GVD 18 For Single Or Three Phase Motor
Specifications
Brand Name :
Atlas
Model Number :
GVD 18
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
be negotibled
Payment Terms :
T/T, Western Union, L/C, D/P, D/A
Supply Ability :
100pcs per month
Delivery Time :
7-30days
Packaging Details :
Atlas standard packing
Inlet Port Size :
KF25
Warranty :
1 year
Frequency :
50,60Hz
Voltage :
220V
Weight :
39KG
Model :
GVD 18
Power Source :
Electric
Oil Capacity :
0.75-1.05L
Description

2 STAGE OIL-SEALED ROTARY VANE VACUUM PUMPS

GVD 18

FEATURES AND BENEFITS

• The pump is designed for reliable, long-term operation.
• Thermal overload device prevents overheating(single phase only).
• The pump is a free-standing unit.
• The drive is provided through a flexible coupling by a single-phase or three-phase (four pole) motor.
• The motors are totally enclosed and are cooled by the motor-cooling fan.
• Easy to use controls.
• Pressure die cast oil box with integral oil seals prevents oil leaks.
• Gas ballast valve for large water vapour handling capacity.
• Externally approved to EN61010, CSA, C22.2 and UL61010.
• Oil distribution valve.
• Pumping chambers are air-tight.
• Oil sight-glass, two oil drain-plugs, inlet-port and outlet nozzle all fitted as standard.

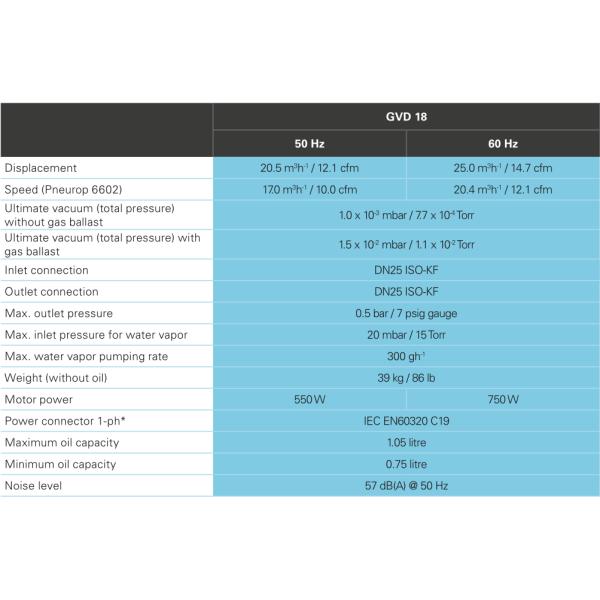

TECHNICAL SPECIFICATIONS
Flexible Coupling AC Vacuum Pump GVD 18 For Single Or Three Phase Motor

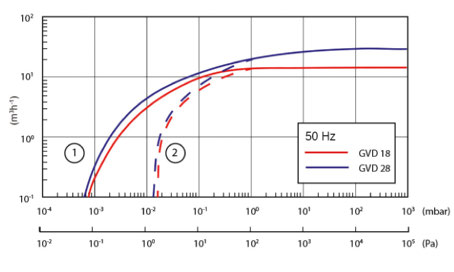

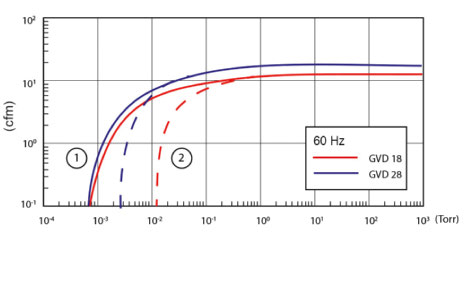

PERFORMANCE CURVES
Flexible Coupling AC Vacuum Pump GVD 18 For Single Or Three Phase MotorFlexible Coupling AC Vacuum Pump GVD 18 For Single Or Three Phase Motor
