Atlas PSA Nitrogen Generator all in one NGP 420
Atlas PSA Nitrogen Generator all in one NGP 420
Specifications
Brand Name :
Atlas
Model Number :
NGP 420
Certification :
ISO 8573-1 CLASS 0
Place of Origin :
China
MOQ :
2pcs
Price :
be negotiated
Payment Terms :
L/C, T/T, D/A, Western Union, D/P
Supply Ability :
100pcs per month
Delivery Time :
7~30days
Packaging Details :
Atlas standard packing
Material :
Aluminum Alloy
Model :
NGP 420
Brand :
Atlas
Nitrogen Purity :
95-99.9%
Air Factor :
2.6~3.5
Type :
NITROGEN PSA
Description
Atlas PSA Nitrogen Generator all in one NGP 420

PSA nitrogen and oxygen generators
(NGP, NGP+, OGP)

Atlas ’s NGP, NGP+ and OGP nitrogen and oxygen generators are easy to install and use.They offer the required purity with a high flow capacity, making them suitable for a range of applications.

Wide Range of Applications
• Food & beverage (storage & packaging). • Pharmaceutical applications.
• Plastic injection molding. • Electronics.
• Laser cutting. • Semiconductor manufacturing.
• Chemical applications. • Metal heat treatment.
• Cable & optical fiber industries. • Glass industries.
• Fire prevention. • Aquaculture.

Atlas PSA Nitrogen Generator all in one NGP 420Atlas PSA Nitrogen Generator all in one NGP 420
Membrane: Compact all-in-one N 2 supply
Atlas NGM/NGM + /NGMs nitrogen generators utilize proprietary membrane separation technology. The membrane separates compressed air into two streams: one is 95-99.9% pure nitrogen, and the other is oxygen enriched with carbon dioxide and other gases.

PSA: Reliable and proven
Based on Pressure Swing Adsorption (PSA) technology, Atlas ’s NGP/NGP + nitrogen generators and OGP oxygen generators provide a continuous flow of nitrogen and oxygen at desired purity.

High purity nitrogen supply up to 99.999%
Atlas ’s NGP/NGP + nitrogen generators use Pressure Swing Adsorption technology to isolate nitrogen molecules from other molecules
in compressed air. Oxygen, CO 2 , water vapor and other gases are adsorbed. The result is virtually pure nitrogen at the outlet of the generator. The NGP/NGP + Series is a very cost-efficient source of nitrogen used in various industries like food and beverage, metal processing, electronics, and many others.



Advanced monitoring, control & connectivity
Do you operate a smart factory or Industry 4.0 production environment? Atlas ’s nitrogen and oxygen generators will fit right in. Their advanced monitoring, control and connectivity features allow you to optimize performance and efficiency.

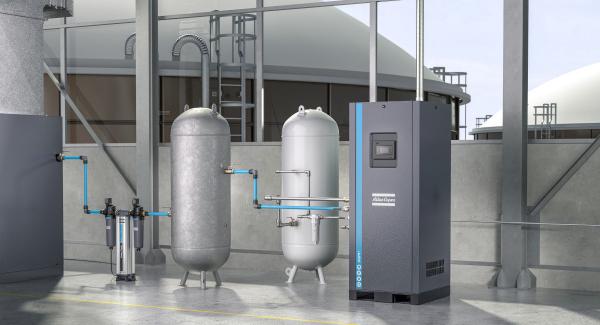

All-in-one high pressure nitrogen skid

The latest addition to Atlas ’s specially developed equipment is the all-in-one high pressure nitrogen
skid, a true alternative for liquid nitrogen or bottles. Combining a small footprint, easy installation, high reliability and supreme energy efficiency, this unique nitrogen skid truly stands out.

Atlas PSA Nitrogen Generator all in one NGP 420

The all-in-one solution
All nitrogen skid components are built to Atlas quality and efficiency standards. They are tested for optimal performance and reliability.

Atlas PSA Nitrogen Generator all in one NGP 420

Specifications

TYPE Nitrogen purity FND (Free Nitrogen Delivery) Dimensions (W x D x H) Weight
95% 97% 98% 99% 99.5% 99.90% 99.95% 99.99% 99.999% mm in kg lbs
NGP 420 FND scfm 580.5 454.9 371.1 311.3 251.4 167.5 122.6 83.9 36.4 1240 x 2520 x 3160 48.8 x 99.2 x 124.4

4200

9259
FND Nm³/h 986.8 773.2 630.8 529.0 427.3 284.9 254.3 142.2 62.1
