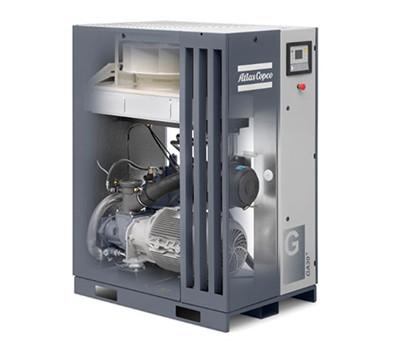

AC Power Ga55+ , Oil Injected Rotary Atlas Screw Air Compressor 55kw
AC Power Ga55+ , Oil Injected Rotary Atlas Screw Air Compressor 55kw
Specifications
Brand Name :
Atlas
Model Number :
GA+75
Certification :
ISO 8573-1 CLASS 0
Place of Origin :
China
MOQ :
5pcs
Price :
be negotiated
Payment Terms :
L/C, T/T, D/A, Western Union, D/P
Supply Ability :
100pcs per month
Delivery Time :
7~30days
Packaging Details :
Atlas standard packing
Machine Name :
Oil Injected screw air compressor
Model :
GA+75
Power Source :
AC Power
Cooling :
Air Cooler
Motor Power :
55kw
Working Pressure :
7.5~13 bar
Description

ROTARY SCREW OIL-INJECTED ATLAS AIR COMPRESSOR 55KW GA55+

High Reliability And Smart Energy 55KW GA55+

The ultimate smart solution, driven by efficiency Atlas ’s GA+55 compressors bring you outstanding sustainability, reliability and performance.

Specifications

COMPRESSOR
TYPE		 Pressure
variant		 Max. working pressure
WorkPlace		 Capacity FAD* Installed motor power Noise
level**		 Weight
WorkPlace		 Weight WorkPlace
Full Feature
bar(e) psig l/s m³/min cfm kW dB(A) kg kg
GA 55 + 7.5 7.5 109 180 10.8 381 55 66 1458 1558
8.5 8.5 123 172 10.3 364 55 66 1458 1558
10 10 145 153 9.2 324 55 66 1458 1558

AC Power Ga55+ , Oil Injected Rotary Atlas Screw Air Compressor 55kw

Maintenance-free drive system
• 100% maintenance-free; totally enclosed and protected against dirt and dust.
• Suitable for harsh environments.
• High-efficiency drive arrangement; no coupling or slippage losses.
• Standard up to 46°C/115°F and for high ambient version 55°C/131°F.

AC Power Ga55+ , Oil Injected Rotary Atlas Screw Air Compressor 55kw

IE3 Premium Efficiency electrical motors
• IP55, insulation Class F, B rise.
• Non-drive side bearing greased for life.
• Oil lubricated drive side bearings.

Robust spin-on oil filter
• High-efficiency, removing 300% smaller particles than a conventional filter.
• Integrated bypass valve with the oil filter.

Separate oversized oil cooler and aftercooler
• Low element outlet temperatures, ensuring long oil lifetime.
• Removal of nearly 100% condensate by integrated mechanical
separator.
• No consumables.
• Eliminates possibility of thermal shocks in coolers.

Electronic no-loss water drain (optional)
• Ensures constant removal of condensate.
• Manual integrated bypass for effective condensate removal in case of power failure.
• Integrated with compressor’s Elektronikon ® with warning/alarm features.

Optimize your system
Some applications may need or may benefit from additional options and more refined control/air treatment systems. To meet these needs, Atlas has developed options and easily integrated compatible equipment.
