Refrigerant Air Dryers

FD VSD 100-300

Unrivalled Energy Savings

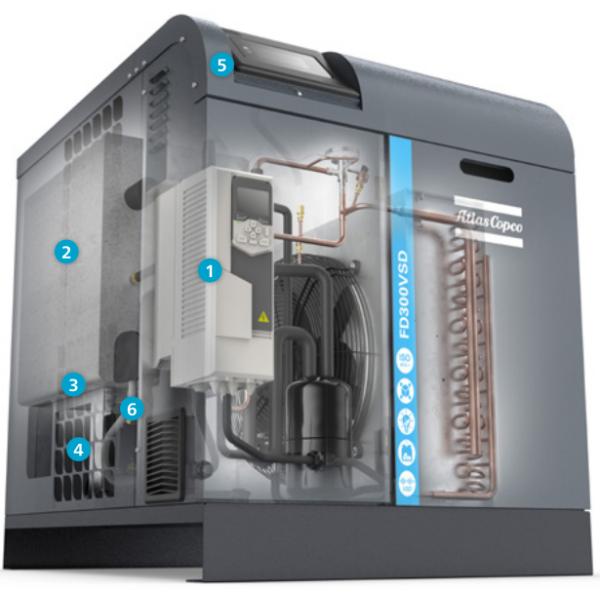

1.VSD inverter
Controls the speed of the compressor to match your air demand and ensure the highest possible energy savings.

2.High-efficiency heat exchanger
Counter-flow compact brazed plate or aluminum heat exchanger, with air-to-air side for optimum cooling efficiency and the lowest possible pressure drop.

3.Integrated water separator
Low velocity with high separation efficiency,even in low flow conditions.

4.Electronic no-loss condensate drain
Opens the drain only when needed to eliminate unnecessary loss of compressed air during timed draining.

5.Elektronikon® Touch controller
Provides advanced control and allows for remote monitoring.

6.Single electrical connection
Ensures plug-and-play installation.

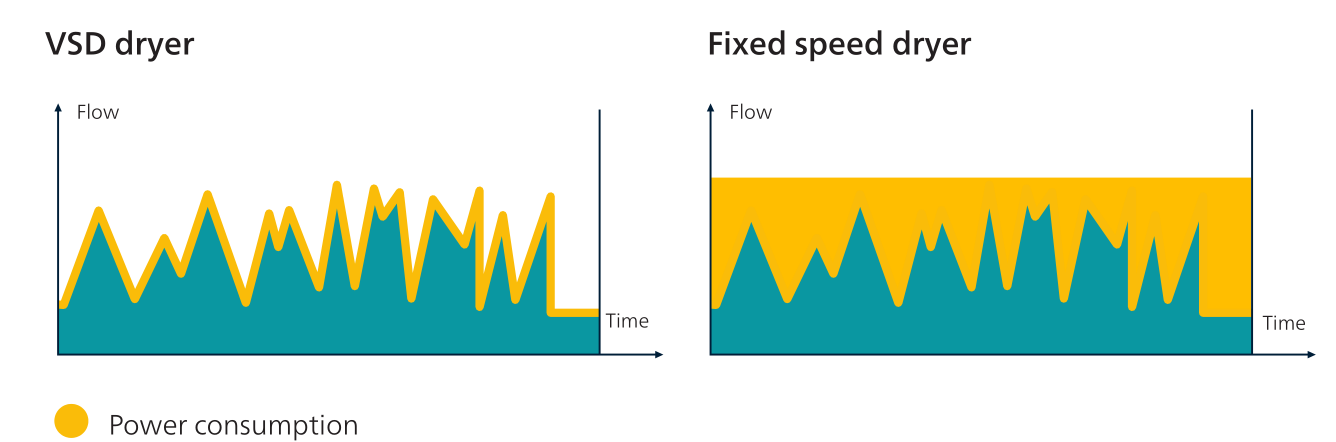

VSD for superior energy savings
Atlas Copco’s in-house developed VSD technology matches your FD dryer’s power consumption to your production’s actual air flow. While a traditional refrigerant dryer can only be turned on or off, Atlas Copco’s FD VSD mirrors your production’s demand for compressed air as it fluctuates during the day, week or year. This ensures supreme energy savings as well as a stable dew point.

Minimal environmental impact
FD VSD dryers use the CFC-free R410A refrigerant, which has an ozone depletion potential (ODP) of zero. The refrigerant meets the strict F-Gas regulations and, due to its low power consumption, has an an outstanding TEWI (Total Equivalent Warming Impact) performance.
Optimum performance and safety in all conditions
• Hot gas bypass valve prevents freezing at lower loads.
• The extremely reliable R410A rotary compressor provides the best performance with minimum environmental impact.
Capillary tubes cope with all conditions – no moving parts for extra reliability.
• Condenser with louvered fin technology for improved performance in dusty environments.
Advanced remote monitoring and control
• High-tech Elektronikon® Touch controller with warning indications, dryer shutdown and maintenance scheduling.
• Standard SMARTLINK remote monitoring to maximize air system performance and energy savings.
Robust and compact design
• Forklift opening for smooth transport.
• Easy front and side panel access.
• No bulky thermal mass heat exchanger needed to save on energy.
Filters
If your production requires higher levels of air quality and filtration, UD+ filters can be added on to your FD VSD dryer.
