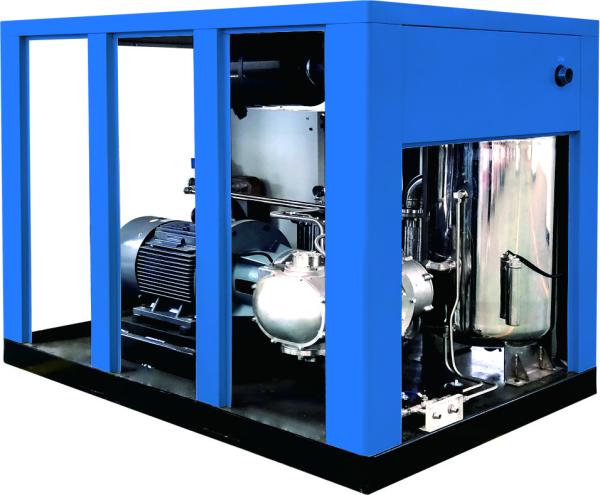

Water Lubrication Screw Type Air Compressor Low Vibration Direct Connection Drive
Water Lubrication Screw Type Air Compressor Low Vibration Direct Connection Drive
Water Lubrication Screw Type Air Compressor Low Vibration Direct Connection Drive
Water Lubrication Screw Type Air Compressor Low Vibration Direct Connection Drive
Specifications
Brand Name :
Schneider Sunshine
Model Number :
SRC-90W
Certification :
ISO9001
Place of Origin :
Shanghai, China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
100PCS/month
Delivery Time :
In 30 days after get the value
Packaging Details :
Wooden case, Carton
Maxinmum work pressure :
0.8~1.25 Mpa
FAD :
12.6~16.6 m³/min
Motor power :
90 KW
noise :
73 DB
Pipe diameters of cooling water in and out :
1½″
Quantity of cooling wate :
20 T/H
Quantity of lubricating water :
120 L
Dimension(L×W×H) :
2200mm×1550mm×1800mm
weight :
2350 Kg
Air outlet :
2½″
Description

12.6~16.6 m³/min Energy Efficient Air Compressor SRC-90W 0.8~1.25 Mpa 90 KW oil-free

Characteristic

new high efficiency screw rotor

Direct connection drive avoids mechanical loss caused by gear transmission.
The triple life design of cylindrical and roller bearing is applied to the bearing with a life expectancy of 100000 hours.
High efficiency, low noise, low vibration, high reliability

Direct connection drive, simple and reliable

The main engine is driven directly by coupling, no gear speed up, 1:1 direct connection is achieved, the transmission efficiency is the highest, and it is simple and reliable. Between the motor and the main engine, there is a central bracket rigid fixed connection, which keeps the alignment of the shaft permanently, and less vibration and noise. The motor and the main engine float on the foundation through the elastic shock absorber, thus reducing the transmission of noise and vibration.

Lower energy consumption performance

The key to reducing the operating cost of the air compressor is to improve the efficiency of the air compressor. Open Tec ultra high energy efficiency air compressor for a long time save the electricity expenditure for the user, and more importantly, its carbon emission reduction is equal to a forest.

⊙ Why the oil free water spray screw technology is needed?
➤ Large capacity
➤ High exhaust pressure (single stage compression pressure up to 17 bar)
➤ High efficiency
➤ Close to isothermal compression
➤ Low noise
➤ Real oil-free stainless-steel screw rotor
➤ Self-lubricating
➤ Oil free ISO85730 level certificate
➤ Lower application costs
➤ Lower maintenance costs
➤ “0” pollution to environment clean and safe compressed air
➤ no fault, long and stable running ability

⊙ The technical advantage water lubricating oil-free screw air compressors


1. With the fifth generation of oil-free screw airend technology. The compressor airend and system adopt stainless alloy, thus the technological transcendence from the copper airend to the stainless steel airend is realized.


2. Integrated design is adopted for the whole machine. There are no complex pipelines and lines, and the fault points are less and more stable.


3. Less maintenance consumables (air filter, water filter), easy maintenance, no professional staff is required to operate it, and less maintenance costs.


4. There is absolutely no oil in compressor system, without any oil pollution risk, it gives guarantee of no oil in generated compressed air.


5. Volumetric efficiency is higher based no isothermal compression. More than 15% energy is averagely saved compared with dry type two stage compression oil-free screw air compressor, more than 25% energy is averagely saved compared with the dry type one stage compression, the running temperature is less than 50℃, and there is risk of being burned.

⊙ rigorous manufacturing process

1. Strict process manufacturing process
Every part is strictly inspected and perfected. Every procedure from raw materials to finished parts is strictly controlled to ensure that every part achieves excellent quality. Every part is optimized to ensure more durability.


2. Super-mute design of the whole machine
The whole chassis adopts super-silent design, low speed and large air volume cooling fan, and large cooler is used to reduce air convection friction, which has excellent cooling effect.


3. Humanized Structure Design
Humanized structure design, simple installation, and follow-up maintenance more convenient, polar maintenance costs, without professional staff, users can also be self-maintenance, maintenance, easy to popularize.


4. Super Clean System and Compressed Air
Stainless steel synthetic material is used in the whole system to ensure the durability, long service life, compressed air "0" pollution, more energy-saving, stable, green and environmental protection.

⊙ compressor system flow chat

Water Lubrication Screw Type Air Compressor Low Vibration Direct Connection Drive

⊙ System flow chare for water lubricating oil-free screw air compressor (water cooling)

Water Lubrication Screw Type Air Compressor Low Vibration Direct Connection Drive

⊙ Remote control system

Water Lubrication Screw Type Air Compressor Low Vibration Direct Connection Drive

⊙ Technical services:

Whether pre-sale, in-sale or after-sale, as long as users need technical assistance and consultation, the company will provide free technical support within 24 hours. After successful commissioning on site, our company's after-sales service engineer is responsible for regular operation training for user's operators. During the quality guarantee period, after-sales service engineers arrive at the site within 24 hours (except in remote areas) after receiving notification of failure of user equipment. The honest service of enterprises is highly praised by users.

⊙ Energy Efficient Air Compressor detailed parameters

Model Maximum
working pressure		 FAD Motor power Noise Pipe diameters of cooling water in and out Quantity of cooling water Quantity of lubricating water Dimension Weight Air outlet
Inlet water 32℃ L×W×H
Mpa M³/min KW DB T/H L mm KG
SRC-6A/W 0.8 0.78 5.5 57 3/4″ 1.5 10 800×800×1100 430 3/4″
1.0 0.65
SRC-8A/W 0.8 1.17 7.5 57 3/4″ 2 10 800×800×1100 470 3/4″
1.0 1.05
1.25 0.81
SRC-11A/W 0.8 1.72 11 60 1″ 2.5 26 1200×800×1300 580 3/4″
1.0 1.42
1.25 1.10
SRC-15A/W 0.8 2.43 15 60 1″ 3.5 26 1200×800×1300 620 1″
1.0 2.17
1.25 1.80
SRC-18A/W 0.8 3.13 18.5 63 1″ 4 30 1400×1000×1520 680 1″
1.0 2.82
1.25 2.05
SRC-22A/W 0.8 3.7 22 63 1″ 5 30 1400×1000×1520 730 1″
1.0 3.21
1.25 2.78
SRC-30A/W 0.8 5.2 30 66 1 ½″ 7 40 1500×1150×1500 1100 1 ½″
1.0 4.43
1.25 3.36
SRC-37A/W 0.8 6.50 37 66 1 ½″ 9 40 1500×1150×1500 1150 1 ½″
1.0 5.33
1.25 4.77
SRC-45W 0.8 8.30 45 68 1 ½″ 10 90 1800×1300×1750 1390 2″
1.0 6.30
1.25 5.56
SRC-55W 0.8 10.3 55 69 1 ½″ 12 100 1800×1300×1750 1470 2″
1.0 8.55
1.25 7.67
SRC-65W 0.8 11 65 70 1½″ 15 100 1800×1300×1750 1430 2″
SRC-75W 0.8 13.00 75 72 1½″ 18 100 1800×1300×1750 1630 2″
1.0 11.50
1.25 9.70
SRC-90W 0.8 16.60 90 73 1½″ 20 120 2200×1550×1800 2350 2½″
1.0 14.66
1.25 12.60
SRC-110W 0.8 20.20 110 77 2″ 24 120 2200×1550×1800 2460 2½″
1.0 16.66
1.25 15.56
SRC-132W 0.8 22.52 110 77 2″ 24 120 2200×1550×1800 2460 2½″
1.0 16.66
1.25 15.56
SRC-160W 0.8 28.11 160 79 3″ 35 160 3000×1800×2100 3700 3″
1.0 25.45
1.25 22.52
SRC-185W 0.8 33.97 185 79 3″ 38 160 3000×1800×2100 3750 3″
1.0 29.00
1.25 25.21
SRC-200W 0.8 36.75 200 80 4″ 42 200 3100×1850×2100 3900 4″
1.0 32.78
1.25 29.24
SRC-220W 0.8 39.67 220 80 4″ 47 200 3100×1850×2100 4200 4″
1.0 36.75
1.25 29.63
SRC-250W 0.8 45 250 80 4″ 53 200 3100×1850×2100 4600 4″
1.0 39.67
1.25 33.97

FAQ

1. How long is your air compressor warranty?

Answer: 18 months warranty for the machine and technical support according to your needs.

2. Do you provide After- sales service parts?

Answer: Of course, We could provide easy- consumable spares.

3. How long could your air compressor be used?

Answer: Generally, more than 10 years.

4. How about your price?

Answer: Based on high quality, Our price is very competitive in the world.

5. How about your customer service?

Answer: For email, we could reply our customers' emails within 2 hours.
