Specifications
Brand Name :
Schneider Sunshine
Model Number :
Contact Customer Service
Certification :
ISO9001
Place of Origin :
Shanghai, China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
1000PCS/month
Delivery Time :
In 30 days after get the value
Packaging Details :
Wooden case, Carton
Description

Intake Intake Valve Oil Break Valve Coupling Oil and Gas Bucket Motor for compressor

Compressor Parts

1. Imported Monitor
➤ LED display in Chinese and English
➤ It has omni-directional protection functions such as short circuit, blocking, phase-absence, overload, unbalance and so on.
➤ Start-stop control and operation control for motor
➤ Reverse Protection of Air Compressor
➤ Detection and Control Protection of Multi-point Temperature
➤ Automatic Load Rate Control and Protection
➤ Highly integrated, highly reliable and cost-effective
➤ Remote/Side Selection Control
➤ Linkage/Independent Selection Operation
➤ RS-485 Communication Function		 Rotary Screw Air Compressor Parts , Screw Air Compressor Spare Parts
2. Genuine imported bearing
Swedish SKF bearings with excellent performance are mainly used to improve the efficiency of the main engine, reduce wear and tear, and increase the stability of meshing.		 Rotary Screw Air Compressor Parts , Screw Air Compressor Spare Parts
3. Intake Valve
The intake valve is installed at the inlet of the compressor to control the intake of the compressor. In normal operation, the control signal controls the opening or closing of the intake valve to meet the gas demand. It can be stepless or two-point gas flow control. When stopping or decadently stopping oxygen supply, the one-way valve installed in the intake valve remains closed to prevent air backflow. Various valve schemes can be used for fixed cargo mobile compressors.		 Rotary Screw Air Compressor Parts , Screw Air Compressor Spare Parts
4. Three filters: air filtration, oil consideration and oil content
The use of top-grade filter material improves the reliability, easy to assemble and disassemble, and saves time. Compared with the traditional oil core separation, the maintenance cost is lower, and it has the characteristics of low residual oil rate and low fuel consumption.		 Rotary Screw Air Compressor Parts , Screw Air Compressor Spare Parts

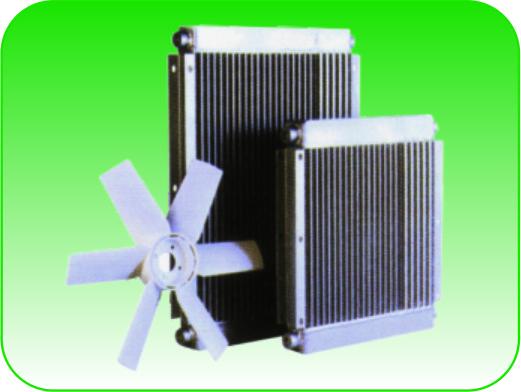

5. Rear cooler
The low temperature difference design is adopted to increase the effective heat transfer area, which is more suitable for high temperature and humidity working environment to avoid high temperature shutdown.		 Rotary Screw Air Compressor Parts , Screw Air Compressor Spare Parts
6.Temperature control valve
The temperature control valve is controlled by a temperature control spool. When a minimum oil temperature is reached and maintained, the oil will cool the bypass oil, so that the compressor can be protected when starting at low temperature. When the compressor starts and reaches the normal working temperature, the normal operation of the temperature control valve is ensured.		 Rotary Screw Air Compressor Parts , Screw Air Compressor Spare Parts

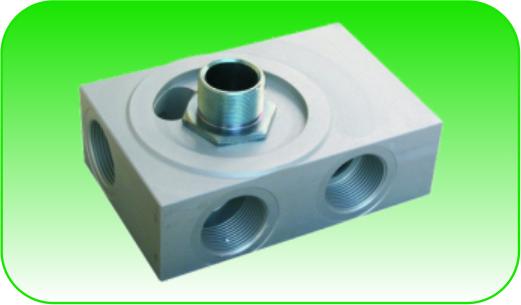

7. Integrated valve
The integrated valve system adopts patent centrifugal technology. The purpose is to improve the effect of mechanical pre-separation. According to the current standard, the integrated valve is composed of oil and gas separating barrel and flange plate. The flange is composed of an oil seat, an oil cushion seat, a temperature control valve, a safety valve, a minimum pressure valve, an oil return peep mirror and a oil partial pressure drop detection hole. The utility model has the advantages of light weight, less occupied space, less takeover and no leakage. This is the greatest advantage of the integrated valve.

 Rotary Screw Air Compressor Parts , Screw Air Compressor Spare Parts

Rotary Screw Air Compressor Parts , Screw Air Compressor Spare PartsRotary Screw Air Compressor Parts , Screw Air Compressor Spare PartsRotary Screw Air Compressor Parts , Screw Air Compressor Spare PartsRotary Screw Air Compressor Parts , Screw Air Compressor Spare PartsRotary Screw Air Compressor Parts , Screw Air Compressor Spare PartsRotary Screw Air Compressor Parts , Screw Air Compressor Spare PartsRotary Screw Air Compressor Parts , Screw Air Compressor Spare Parts
