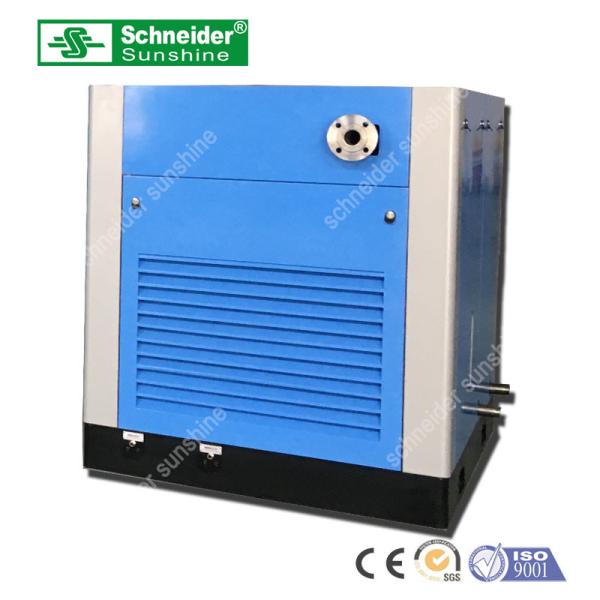

Water Lubricated Screw Air Compressor VFD Energy Savings 620 Kg 0.35~1.72 m³/min
Water Lubricated Screw Air Compressor VFD Energy Savings 620 Kg 0.35~1.72 m³/min
Specifications
Brand Name :
Schneider Sunshine
Model Number :
SRC-11A/W-PM
Certification :
ISO9001
Place of Origin :
Shanghai, China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
100PCS/month
Delivery Time :
In 30 days after get the value
Packaging Details :
Wooden case, Carton
Maxinmum work pressure :
0.8~1.25 Mpa
FAD :
0.35~1.72 m³/min
Motor power :
11 KW
noise :
60 DB
Pipe diameters of cooling water in and out :
1″
Quantity of cooling wate :
2.5 T/H
Quantity of lubricating water :
26 L
Dimension(L×W×H) :
1200mm×800mm×1300mm
weight :
620 Kg
Air outlet :
3/4″
Description

11 KW energy-saving permanent magnetic airable frequency oil free screw air compressor 0.35~1.72 m³/min

Factory Selling Directly Dry Oil Free 11Kw Air Compressors

Oil free screw air compressors are widely used in industries that require high quality air sources such as: pharmaceutical, food, electronics, chemical, packaging, etc. 100% pure compressed air is a necessary procedure to guarantee satisfactory crafts and product quality, which ensures the production of high-end products safely and risk-free.
The lubrication system of an oil free screw air compressor is an individual fuel recycling unit. The compression chamber and the bearings were separated by a set of sealed high-performance mechanical assembly. The lubricating oil can only flow in the enclosed area and is prevented to enter the compression chamber, which only contains 100% pure compressed oil-free air. The users could obtain 100% pure compressed air with some slight post-treatment of water and dust removal.

Product Advantages

Ultimately clean air produced by our product has been applied in every field of high tech, which contributes to efficiency and profits of customers.

Easy maintenance, place saving and many other features can be achieved.

PLC+alphanumeric display on the touch screen(IMMI) are used to monitor a series of parameters and report all faults automatically.
Compressed air delivery with less pulsation and noise
Rotors and casing are Teflon-coated in high efficient tooth profile.
Rotors are ware free which runs without contact via synchronous gears.
VSD inverter control can be matched to all units with more stable profermance and remarkable energy saving.

⊙ rigorous manufacturing process

1. Strict process manufacturing process
Every part is strictly inspected and perfected. Every procedure from raw materials to finished parts is strictly controlled to ensure that every part achieves excellent quality. Every part is optimized to ensure more durability.


2. Super-mute design of the whole machine
The whole chassis adopts super-silent design, low speed and large air volume cooling fan, and large cooler is used to reduce air convection friction, which has excellent cooling effect.


3. Humanized Structure Design
Humanized structure design, simple installation, and follow-up maintenance more convenient, polar maintenance costs, without professional staff, users can also be self-maintenance, maintenance, easy to popularize.


4. Super Clean System and Compressed Air
Stainless steel synthetic material is used in the whole system to ensure the durability, long service life, compressed air "0" pollution, more energy-saving, stable, green and environmental protection.

⊙ Benefits of Frequency Converter


❃ Compressed air output adjusts according to demand
❃ Lower system pressure, energy saving
❃ No load-unload cycle, no power consumption
❃ Smooth start, no peak start current
❃ Greatly reduce energy consumption

Water Lubricated Screw Air Compressor VFD Energy Savings 620 Kg 0.35~1.72 m³/minWater Lubricated Screw Air Compressor VFD Energy Savings 620 Kg 0.35~1.72 m³/min

⊙ compressor system flow chat

Water Lubricated Screw Air Compressor VFD Energy Savings 620 Kg 0.35~1.72 m³/min

⊙System flow chare for water lubricating oil-free screw air compressor (water cooling)

Water Lubricated Screw Air Compressor VFD Energy Savings 620 Kg 0.35~1.72 m³/min

⊙Remote control system

Water Lubricated Screw Air Compressor VFD Energy Savings 620 Kg 0.35~1.72 m³/min

⊙Technical services:

Whether pre-sale, in-sale or after-sale, as long as users need technical assistance and consultation, the company will provide free technical support within 24 hours. After successful commissioning on site, our company's after-sales service engineer is responsible for regular operation training for user's operators. During the quality guarantee period, after-sales service engineers arrive at the site within 24 hours (except in remote areas) after receiving notification of failure of user equipment. The honest service of enterprises is highly praised by users.

⊙PM series energy-saving permanent magnetic airable frequency oil-free screw air compressor detailed parameters

Model Maximum
working pressure		 FAD Motor power Noise Pipe diameters of cooling water in and out Quantity of cooling water Quantity of lubricating water Dimension Weight Air outlet
Inlet water 32℃ L×W×H
Mpa M³/min KW DB T/H L mm KG
SRC-06A/W-PM 0.8 0.3~0.78 5.5 57 3/4″ 1.5 10 800X800X1100 460 3/4″
1.0 0.2~0.65
SRC-08A/W-PM 0.8 0.35~1.17 7.5 57 3/4″ 2 10 800X800X1100 510 3/4″
1.0 0.3~1.05
1.25 0.24~0.81
SRC-11A/W-PM 0.8 0.54~1.72 11 60 1″ 2.5 26 1200X800X1300 620 3/4″
1.0 0.45~1.42
1.25 0.35~1.10
SRC-15A/W-PM 0.8 0.75~2.43 15 60 1″ 3.5 26 1200X800X1300 670 1″
1.0 0.65~2.17
1.25 0.60~1.80
SRC-18A/W-PM 0.8 0.90~3.13 18.5 63 1″ 4 26 1400X1000X1520 730 1″
1.0 0.90~2.82
1.25 0.60~2.05
SRC-22A/W-PM 0.8 1.1~3.7 22 63 1″ 5 30 1400X1000X1520 780 1″
1.0 0.97~3.21
1.25 0.85~2.78
SRC-30A/W-PM 0.8 1.55~5.2 30 66 1 ½″ 7 40 1500X1150X1500 1150 1 ½″
1.0 1.255~4.43
1.25 1.1~3.36
SRC-37A/W-PM 0.8 1.91~6.50 37 66 1 ½″ 9 40 1500X1150X1500 1200 1 ½″
1.0 1.60~5.33
1.25 1.42~4.77
SRC-45W-PM 0.8 2.50~8.30 45 68 1 ½″ 10 90 1800X1300X1750 1490 2″
1.0 1.91~6.30
1.25 1.70~5.56
SRC-55W-PM 0.8 3.00~10.30 55 69 1 ½″ 12 100 1800X1300X1750 1570 2″
1.0 2.60~8.55
1.25 2.3~7.67
SRC-75W-PM 0.8 3.95~13.00 75 72 1 ½″ 18 100 1800X1300X1750 1750 2″
1.0 3.40~11.50
1.25 3.00~9.70
SRC-90W-PM 0.8 5.00~16.60 90 73 1 ½″ 20 120 2200X1550X1800 2450 2 ½″
1.0 4.30~14.66
1.25 3.72~12.60
SRC-110W-PM 0.8 6.00~20.20 110 77 2″ 24 120 2200X1550X1800 2580 2 ½″
1.0 5.00~16.66
1.25 4.65~15.56
SRC-132W-PM 0.8 6.75~22.52 132 77 2″ 30 120 2200X1550X1800 2700 2 ½″
1.0 6.00~19.97
1.25 5.07~16.90
SRC-160W-PM 0.8 0.85~28.11 160 79 3″ 35 160 3000X1800X2100 3900 3″
1.0 7.60~25.45
1.25 6.70~22.52

server:

1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DENAIR air compressor factory or working site.
5.Plenty of original spare parts with proven quality are all available from our central stocks in Shanghai and all distributors’depots.
6.All kinds of technical documents in different languages.

Water Lubricated Screw Air Compressor VFD Energy Savings 620 Kg 0.35~1.72 m³/minWater Lubricated Screw Air Compressor VFD Energy Savings 620 Kg 0.35~1.72 m³/min
