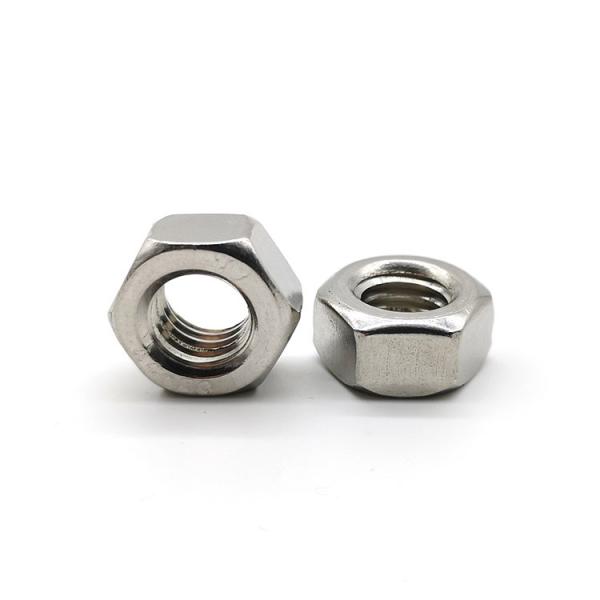

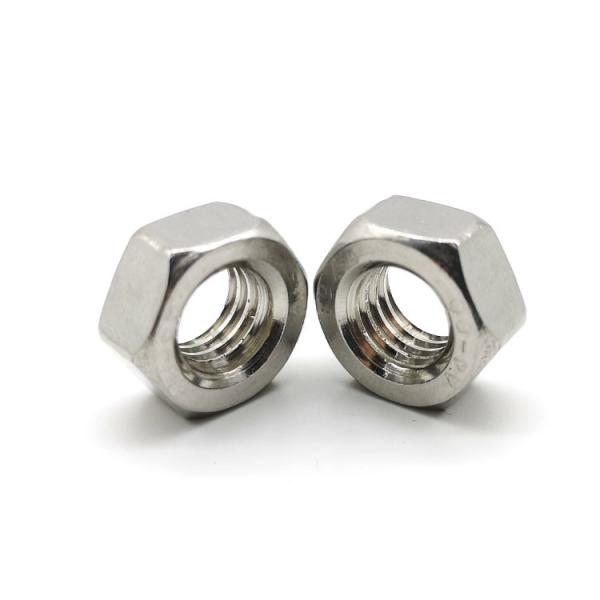

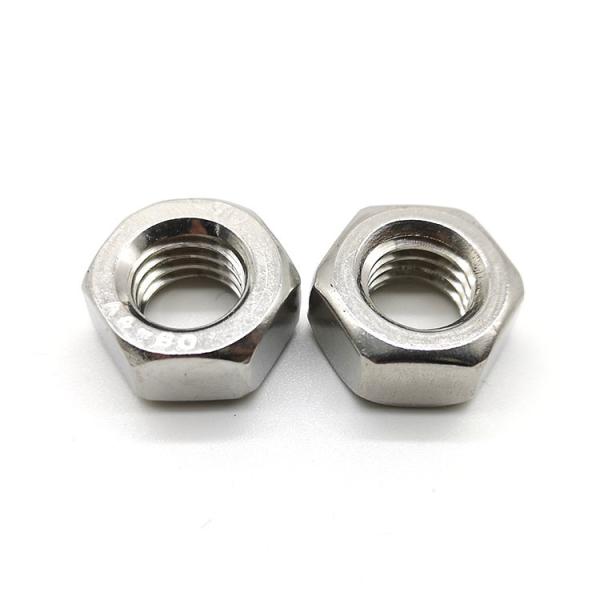

316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
Specifications
Brand Name :
XGFH
Model Number :
ISO4032
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
0.1-2.5usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
100000pcs per month
Delivery Time :
5-15 work days
Packaging Details :
25kg per carbon box and then pallet.
Standard :
ISO4032
Name :
Hex nuts
Material :
Stainless steel 316
Finish :
Clean and Bright
Specification :
ISO3506-2
Size :
M1.6 to M64
Thread Fit :
Coarse
Thread :
Right hand
Description

Metric Super-Corrosion-Resistant 316 Stainless Steel Hex Nuts

Product Description:

This International Standard specifies the characteristics of hexagon regular nuts (style 1), with threads from M1,6 up to and including M64, with product grade A for threads D ≤ M16 and product grade B for threads D > M16. If, in special cases, specifications other than those listed in this International Standard are required, they can be selected from existing International Standards, for example ISO 724, ISO 898-2, ISO 965-1, ISO 3506-2 and ISO 4759-1.

Product Mechanical Requirements:

Item Value
Grade A4-80
Stress under proof load 800min. Mpa

Product Drawing:

Hexagon nuts,type 1--product grades A and B
ISO4032&GB/T6170-2000
316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
d(mm) P(mm) k(mm) s(mm)
min max min max
M1.6 0.35 1.05 1.3 3.02 3.2
M2 0.4 1.35 1.6 3.82 4
M2.5 0.45 1.75 2 4.82 5
M3 0.5 2.15 2.4 5.32 5.5
M3.5 0.6 2.55 2.8 5.82 6
M4 0.7 2.9 3.2 6.78 7
M5 0.8 4.4 4.7 7.78 8
M6 1 4.9 5.2 9.78 10
M8 1.25 6.44 6.8 12.73 13
M10 1.5 8.04 8.4 15.73 16
M12 1.75 10.37 10.8 17.73 18
M14 2 12.1 12.8 20.67 21
M16 2 14.1 14.8 23.67 24
M18 2.5 15.1 15.8 26.16 27
M20 2.5 16.9 18 29.16 30
M22 2.5 18.1 19.4 33 34
M24 3 20.2 21.5 35 36
M27 3 22.5 23.8 40 41
M30 3.5 24.3 25.6 45 46
M33 3.5 27.4 28.7 49 50
M36 4 29.4 31 53.8 55
M39 4 31.8 33.4 58.8 60
M42 4.5 32.4 34 63.1 65
M45 4.5 34.4 36 68.1 70
M48 5 36.4 38 73.1 75
M52 5 40.4 42 78.1 80
M56 5.5 43.4 45 82.8 85
M60 5.5 46.4 48 87.8 90
M64 6 49.1 51 92.8 95

Product Features:

Stainless steel is steel combined with alloying elements,principally chromium,to enhance corrosion resistance and impart other desired properties depending upon the alloying elements in use and their proportions.

Many stainless steel fasteners are non-magnetic or less magnetic than regular steel fasteners.

316 Stainless Steel Hex Nuts ISO 4032 A4 80 Super Corrosion Resistant
