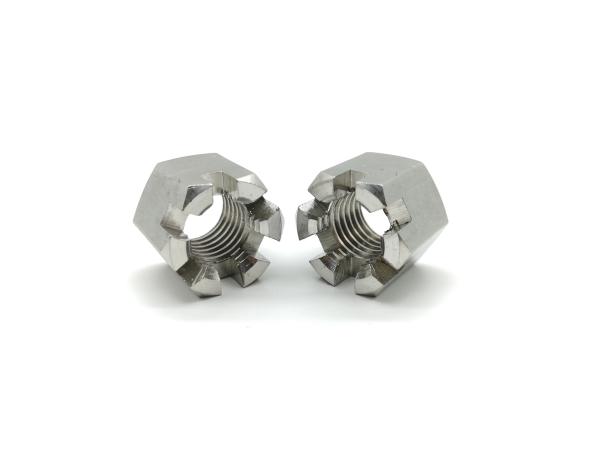

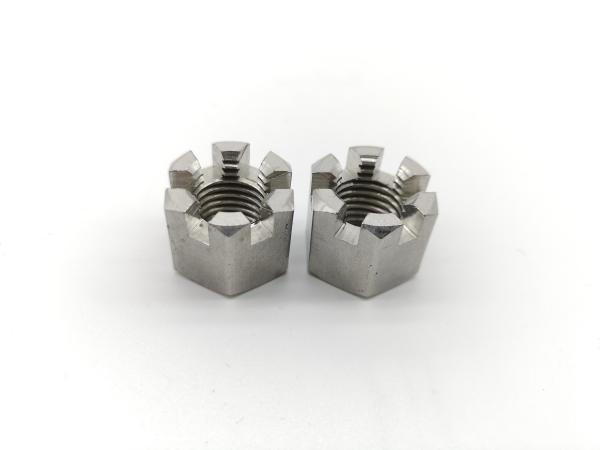

Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
Specifications
Brand Name :
XGFH
Model Number :
DIN935
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
0.01-2.5usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
100000pcs per month
Delivery Time :
5-15 work days
Packaging Details :
25kg per carbon box and then pallet.
Standard :
DIN935
Name :
Hex Slotted Nuts
Material :
Stainless steel 316
Grade :
A4-70
Finish :
Clean and Bright
Type :
Chamfer
Wrench :
Hex
Thread :
Coarse
Description

Stainless Steel Locknuts for use with Cotter Pins

Product Description:

These locknuts have good chemical resistance and may be mildly magnetic. Also known as castle nuts, secure them by inserting a cotter pin or safety wire through the slots in the nut and a drilled hole in your bolt for mild loosening resistance.

They’re not recommended for use on parts exposed to high vibration because the pin is prone to shearing under prolonged stress. Height includes the slots. Cotter pins are not included.


Product Drawing:

Hexagon slotted nuts
DIN 935-2013
Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
D(mm) P(mm) m(mm) n(mm) s(mm) w(mm)
min max min max min max min max
M4 0.7 4.7 5 1.2 1.45 6.78 7 2.9 3.2
M5 0.8 5.7 6 1.4 1.65 7.78 8 3.7 4
M6 1 7.14 7.5 2 2.25 9.78 10 4.7 5
M7 1 7.64 8 2 2.25 10.73 11 5.2 5.5
M8 1/1.25 9.14 9.5 2.5 2.75 12.73 13 6.14 6.5
M10 1/1.25/1.5 11.57 12 2.8 3.05 15.73/16.73 16/17 7.64 8
M12 1.25/1.5/1.75 14.57 15 3.5 3.8 17.73/18.67 18/19 9.64 10
M14 1.5/2 15.57 16 3.5 3.8 20.67/21.67 21/22 10.57 11
M16 1.5/2 18.48 19 4.5 4.8 23.67 24 12.57 13
M18 1.5/2/2.5 20.16 21 4.5 4.8 26.16 27 14.57 15
M20 1.5/2/2.5 21.16 22 4.5 4.8 29.16 30 15.57 16
M22 1.5/2/2.5 25.16 26 5.5 5.8 31/33 32/34 17.57 18
M24 2/3 26.16 27 5.5 5.8 35 36 18.48 19
M27 2/3 29.16 30 5.5 5.8 40 41 21.48 22
M30 2/3.5 32 33 7 7.36 45 46 23.48 24
M33 2/3.5 34 35 7 7.36 49 50 25.48 26
M36 3/4 37 38 7 7.36 53.8 55 28.48 29
M39 3/4 39 40 7 7.36 58.8 60 30.28 31
M42 3/4.5 45 46 9 9.36 63.1 65 33.38 34
M45 3/4.5 47 48 9 9.36 68.1 70 35.38 36
M48 3/5 49 50 9 9.36 73.1 75 37.38 38
M52 3/5 52.8 54 9 9.36 78.1 80 41.38 42
M56 4/5.5 55.8 57 9 9.36 82.8 85 44.38 45
M60 4/5.5 61.8 63 11 11.43 87.8 90 47.38 48
M64 4/6 64.8 66 11 11.43 92.8 95 50.26 51
M68 4/6 67.8 69 11 11.43 97.8 100 53.26 54
M72 4/6 71.8 73 11 11.43 102.8 105 57.26 58
M76 4/6 74.8 76 11 11.43 107.8 110 60.26 61
M80 4/6 77.6 79 11 11.43 112.8 115 63.26 64
M85 4/6 86.6 88 14 14.43 117.8 120 67.26 68
M90 4/6 90.6 92 14 14.43 127.5 130 71.26 72
M100 4/6 98.6 100 14 14.43 142.5 145 79.26 80


Product Features:

Slotted nuts,also known as castellated nuts,have grooved heads that align with holes in the mated bolt to accept the insertion of a cotter pin,locking the nut in place.

They are commonly used to ensure that shaft components in certain automotive assemblies do not separate or to maintain machine settings in manufacturing environments.

Factory:

Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts

Applications:

Stainless Steel Hexagon Slotted Nut Cotter Pins DIN 935 Castle Nuts
