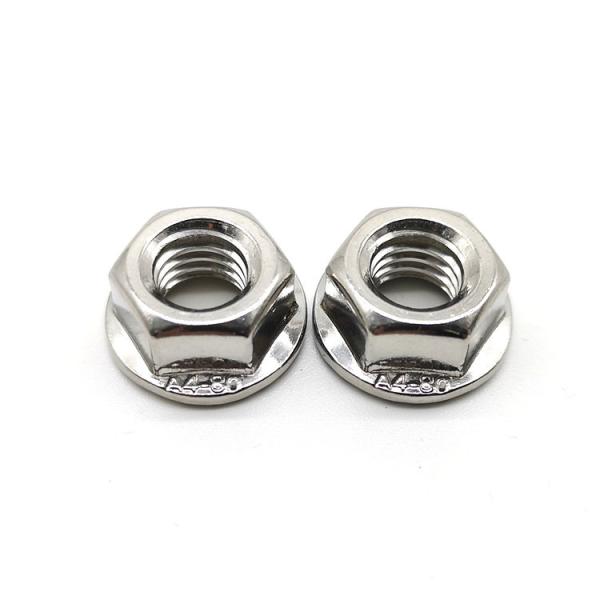

DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
Specifications
Brand Name :
XGFH
Model Number :
DIN6923
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
0.1-2.5usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
100000pcs per month
Delivery Time :
5-15 work days
Packaging Details :
25kg per carbon box and then pallet.
Standard :
DIN6923
Name :
Hex Flange nuts
Material :
Stainless steel 316
Finish :
Clean and Bright
Specification :
ISO3506-2
Size :
M6 to M16
Thread Fit :
Coarse
Thread :
Right hand
Description

Metric Super-Corrosion-Resistant 316 Stainless Steel Serrated Hex Flange Nuts

Product Description:

These flange nuts have excellent resistance to chemicals and can be used in saltwater environments. A flange distributes pressure where the nut meets the material surface, eliminating the need for a separate washer. They may be mildly magnetic. Height includes the flange.

Product Mechanical Requirements:

Item Value
Grade A4-80
Stress under proof load 800min. Mpa

Product Drawing:

Hexagon nuts with flange
DIN 6923-1983
DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
d(mm) p(mm) dc(mm) m(mm) s(mm)
max min max min max
M5 0.8 11.8 4.7 5 7.78 8
M6 1 14.2 5.7 6 9.78 10
M8 1/1.25 17.9 7.6 8 12.73 13
M10 1/1.25/1.5 21.8 9.6 10 14.73 15
M12 1.25/1.5/1.75 26 11.6 12 17.73 18
M14 1.5/2 29.9 13.3 14 20.67 21
M16 1.5/2 34.5 15.3 16 23.67 24
M20 1.5/2.5 42.8 18.9 20 29.67 30

Product Features:

Stainless steel is steel combined with alloying elements,principally chromium,to enhance corrosion resistance and impart other desired properties depending upon the alloying elements in use and their proportions.

Many stainless steel fasteners are non-magnetic or less magnetic than regular steel fasteners.

Testing Equipment:

DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts

Packing:

DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
