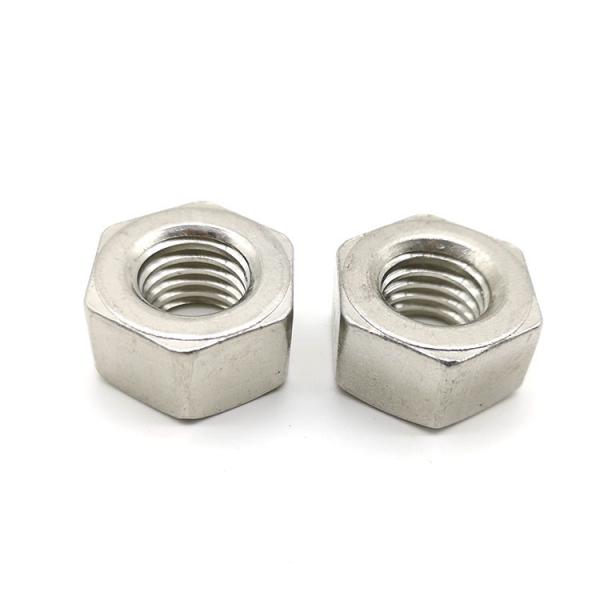

ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
Specifications
Brand Name :
XGFH
Model Number :
ASME/ANSI B18.2.2
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
0.1-2.5usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
100000pcs per month
Delivery Time :
5-15 work days
Packaging Details :
25kg per carbon box and then pallet.
Standard :
ASME/ANSI B18.2.2
Name :
Hex Heavy Nuts
Material :
18-8 Stainless steel
Grade :
ASTM A194 Grade 8
Finish :
Carbide Solution Treatment
Hex nut profile :
Extra Wide
Thread Type :
UNC
Thread Fit :
Class 2B
Description

ASTM A194 Grade 8 Stainless Steel 304 Hex Heavy Nuts ASME/ANSI B18.2.2

18-8 Stainless Steel Extra-Wide Hex Nut

Product Description:

This hex nut maintain their strength in high-pressure and high-temperature environments and are used with ASTM A193 bolts to fasten pressure tanks, valves, and flanges.

Also known as heavy hex nuts, they are about 10% wider and taller than standard hex nuts and distribute the load over a large area.

Dimensions Drawing:

Heavy Hex Nuts Table 10
ANSI/ASME B18.2.2-2015
ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
d(ich) PP s(ich) e(ich) k(ich)
UNC min max min max min max
1/4 0.25 20 0.488 0.5 0.556 0.577 0.218 0.25
5/16 0.3125 18 0.546 0.562 0.622 0.65 0.28 0.314
3/8 0.375 16 0.669 0.688 0.673 0.794 0.341 0.377
7/16 0.4375 14 0.728 0.75 0.83 0.866 0.403 0.411
1/2 0.5 13 0.85 0.875 0.969 1.01 0.464 0.504
9/16 0.5625 12 0.909 0.938 1.037 1.083 0.526 0.568
5/8 0.625 11 1.031 1.062 1.175 1.227 0.587 0.631
3/4 0.75 10 1.212 1.25 1.382 1.443 0.71 0.758
7/8 0.875 9 1.394 1.438 1.589 1.66 0.833 0.885
1 1 8 1.575 1.625 1.796 1.876 0.956 1.012
1-1/8 1.125 7 1.756 1.812 2.002 2.093 1.079 1.139
1-1/4 1.25 7 1.938 2 2.209 2.309 1.187 1.251
1-3/8 1.375 6 2.119 2.188 2.416 2.526 1.31 1.378
1-1/2 1.5 6 2.3 2.375 2.622 2.742 1.433 1.505
1-5/8 1.625 0 2.481 2.562 2.828 2.959 1.556 1.632
1-3/4 1.75 5 2.662 2.75 3.035 3.175 1.679 1.759
1-7/8 1.875 0 2.844 2.938 3.242 3.392 1.802 1.886
2 2 5 3.025 3.125 3.449 3.608 1.925 2.013
2-1/4 2.25 5 3.388 3.5 3.862 4.041 2.155 2.251
2-1/2 2.5 4 3.75 3.875 4.275 4.474 2.401 2.505
2-3/4 2.75 4 4.112 4.25 4.688 4.907 2.647 2.759
3 3 4 4.475 4.625 5.102 5.34 2.893 3.013
3-1/4 3.25 4 4.838 5 5.515 5.774 3.124 3.252
3-1/2 3.5 4 5.2 5.375 5.928 6.207 3.37 3.506
3-3/4 3.75 4 5.562 5.75 6.341 6.64 3.616 3.76
4 4 4 5.925 6.125 6.755 7.073 3.862 4.014

Product Features:

ASTM A194 Heavy hex nuts shall be hot or cold forged, or shall be machined from hot-forged, hot-rolled or cold-drawn bars.

Unless otherwise specifified, the American National Standard Heavy Hex Series shall be used and nuts shall be either double chamfered or have a machined or forged washer face, at the option of the manufacturer, and, conform to the angularity requirements of ANSI B 18.2.2 and ANSI B 18.2.4.6M.

ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2ASTM A194 Grade 8 Stainless Steel Hex Nuts 304 Heavy Hex Nut ASME ANSI B18.2.2
