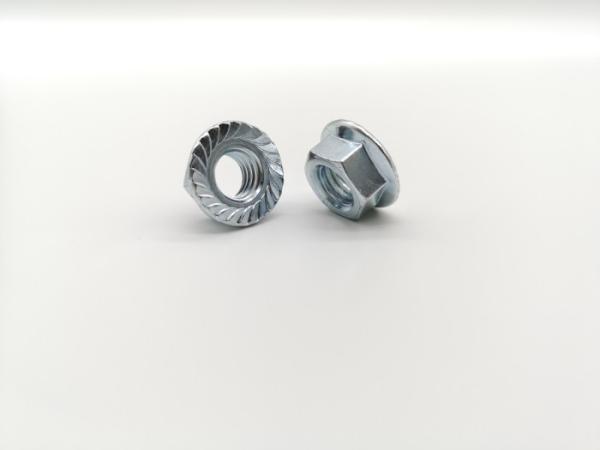

Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
Specifications
Brand Name :
XGFH
Model Number :
DIN6923
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
0.01-0.9usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs per month
Delivery Time :
5-15 work days
Packaging Details :
20-25KG/Carton Box and then pallet
Name :
Hex Flange Nuts
Standard :
DIN6923
Material :
Medium Carbon Steel
Grade :
Class 8
Finish :
Zinc plated
Style :
Hex
System of measurement :
Metric
Thread Fit :
Coarse 6g/6h
Thread Type :
Right hand
Description

Metric Medium-Strength Steel Serrated Flange Locknuts—Class 8

Product Description:

Flange nuts have a washer like base to distribute pressure over a greater surface area and ensure the fastener stay tight.They are commonly used in manufacturing assembly lines where operations are speeded by using a single fastener instead of a nut and washer.

Product Features:

Strong enough for use in most machinery and equipment, these medium-strength metric nuts have serrations on the underside of the flange. The serrations prevent the nuts from loosening in applications with mild vibration.

Also known as collar nuts, they do not require a washer, which saves assembly time. Instead, the flange spreads the holding force across a wide area. Because the flange makes them wider than standard nuts, they may not fit into tight spots.

Zinc-plated steel nuts have a layer of zinc on the outside that prevents the steel from rusting in wet environments, extending the life of the nut.

To ensure compatibility with other parts and tools, some nuts meet ISO 4161 (formerly DIN 6923).

Product Drawing:

Hexagon Nuts With Flange
DIN 6923-1983
Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
d(mm) p(mm) dc(mm) m(mm) s(mm)
max min max min max
M5 0.8 11.8 4.7 5 7.78 8
M6 1 14.2 5.7 6 9.78 10
M8 1/1.25 17.9 7.6 8 12.73 13
M10 1/1.25/1.5 21.8 9.6 10 14.73 15
M12 1.25/1.5/1.75 26 11.6 12 17.73 18
M14 1.5/2 29.9 13.3 14 20.67 21
M16 1.5/2 34.5 15.3 16 23.67 24
M20 1.5/2.5 42.8 18.9 20 29.67 30

Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8Zinc Finish Serrated Hex Flange Nuts DIN 6923 M5 To M20 Class 8
