Specifications
Brand Name :
XGFH
Model Number :
SAE
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000pcs
Price :
0.01-0.2usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs per week
Delivery Time :
3-10workdays
Packaging Details :
25KG/Carton box, and then pallet.
Name :
Flat Washers
Standard :
ANSI/SAME B18.22.1
Material :
Carbon steel
Finish :
Zinc Plated
Size :
Inner dia. from #6 to 3"
Measurement System :
Inch
Description

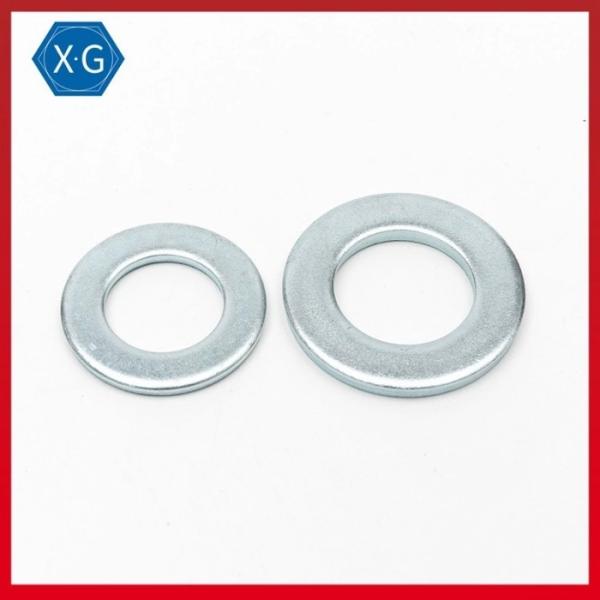

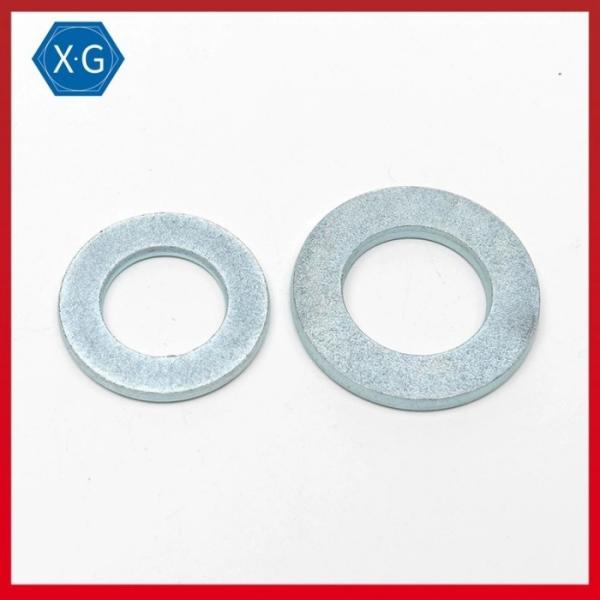

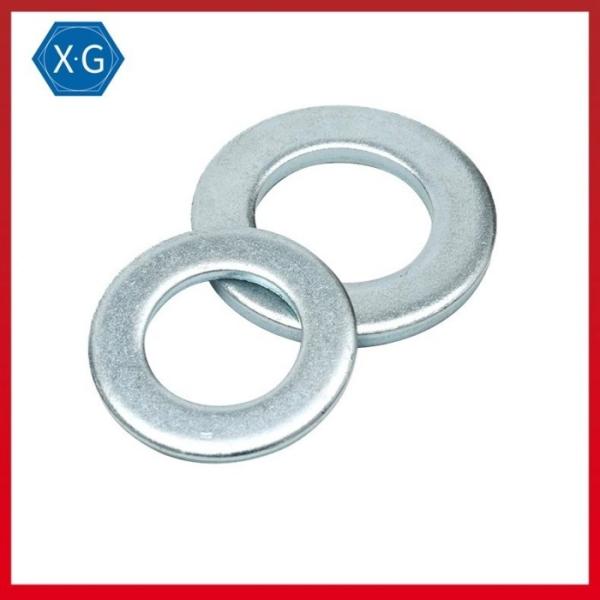

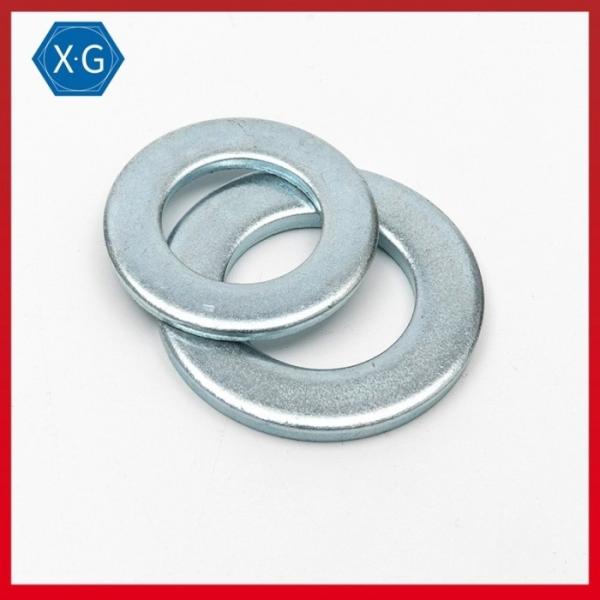

SAE Zinc Plated Steel Flat Washers General Purpose Washers

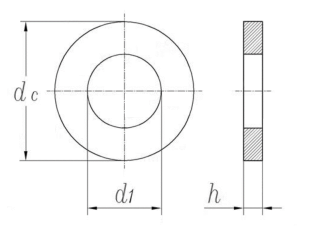

Drawing:

Plain washer
ANSI/ASME B18.22.1
F436 3 Inch Outside Diameter Flat Washer SAE Zinc Plated AME B18.22.1
d 类型 d1(ich) dc(ich) h(ich)
Nom min max Nom min max Nom min max
6# 0.138 / 0.156 0.151 0.164 0.375 0.37 0.39 0.049 0.036 0.065
8# 0.164 / 0.188 0.183 0.196 0.438 0.433 0.453 0.049 0.036 0.065
10# 0.19 / 0.219 0.214 0.227 0.5 0.495 0.515 0.049 0.036 0.065
3/16 0.1875 / 0.25 0.245 0.265 0.562 0.557 0.577 0.049 0.036 0.065
12# 0.216 / 0.25 0.245 0.265 0.562 0.557 0.577 0.065 0.051 0.08
1/4 0.25 N 0.281 0.276 0.296 0.625 0.62 0.64 0.065 0.051 0.08
W 0.312 0.307 0.327 0.734 0.727 0.749 0.065 0.051 0.08
5/16 0.3125 N 0.344 0.339 0.359 0.688 0.681 0.703 0.065 0.051 0.08
W 0.375 0.37 0.39 0.875 0.868 0.905 0.083 0.065 0.104
3/8 0.375 N 0.406 0.401 0.421 0.812 0.805 0.827 0.065 0.051 0.08
W 0.438 0.433 0.453 1 0.933 1.03 0.083 0.064 0.104
7/16 0.4375 N 0.469 0.464 0.484 0.922 0.915 0.937 0.065 0.051 0.08
W 0.5 0.495 0.515 1.25 1.243 1.28 0.083 0.064 0.104
1/2 0.5 N 0.531 0.526 0.546 1.062 1.055 1.092 0.095 0.074 0.121
W 0.562 0.557 0.577 1.375 1.368 1.405 0.109 0.086 0.132
9/16 0.5625 N 0.594 0.589 0.609 1.156 1.149 1.186 0.095 0.074 0.121
W 0.625 0.62 0.64 1.469 1.462 1.499 0.109 0.086 0.132
5/8 0.625 N 0.656 0.649 0.686 1.312 1.305 1.342 0.095 0.074 0.121
W 0.688 0.681 0.718 1.75 1.743 1.78 0.134 0.108 0.16
3/4 0.75 N 0.812 0.805 0.842 1.469 1.462 1.499 0.134 0.108 0.16
W 0.812 0.805 0.842 2 1.993 2.03 0.148 0.122 0.177
7/8 0.875 N 0.938 0.931 0.968 1.75 1.743 1.78 0.134 0.108 0.16
W 0.938 0.931 0.968 2.25 2.243 2.28 0.165 0.136 0.192
1 1 N 1.062 1.055 1.092 2 1.993 2.03 0.134 0.108 0.16
W 1.062 1.055 1.092 2.5 2.493 2.53 0.165 0.136 0.192
1-1/8 1.125 N 1.25 1.243 1.28 2.25 2.243 2.28 0.134 0.108 0.16
W 1.25 1.243 1.28 2.75 2.743 2.78 0.165 0.136 0.192
1-1/4 1.25 N 1.375 1.368 1.405 2.5 2.493 2.53 0.165 0.136 0.192
W 1.375 1.368 1.405 3 2.993 3.03 0.165 0.136 0.192
1-3/8 1.375 N 1.5 1.493 1.53 2.75 2.743 2.78 0.165 0.136 0.192
W 1.5 1.49 1.545 3.25 3.24 3.295 0.18 0.153 0.213
1-1/2 1.5 N 1.625 1.618 1.655 3 2.993 3.03 0.165 0.136 0.192
W 1.625 1.615 1.67 3.5 3.49 3.545 0.18 0.153 0.213
1-5/8 1.625 / 1.75 1.74 1.795 3.75 3.74 3.795 0.18 0.153 0.213
1-3/4 1.75 / 1.875 1.865 1.92 4 3.99 4.045 0.18 0.153 0.213
1-7/8 1.875 / 2 1.99 2.045 4.25 4.24 4.295 0.18 0.153 0.213
2 2 / 2.125 2.115 2.17 4.5 4.49 4.545 0.18 0.153 0.213
2-1/4 2.25 / 2.375 2.365 2.42 4.75 4.74 4.795 0.22 0.193 0.248
2-1/2 2.5 / 2.625 2.615 2.67 5 4.99 5.045 0.238 0.21 0.28
2-3/4 2.75 / 2.875 2.865 2.94 5.25 5.24 5.315 0.259 0.228 0.31
3 3 / 3.125 3.115 3.19 5.5 5.49 5.565 0.284 0.249 0.327

Features:

SAE washers generally have a smaller ID and OD than USS washers.

Similar to a USS washer, but with inner and outer diameters slightly smaller. Most but not all
SAE washers are produced from thinner materials compared to USS washers.

These general use flat washers are positioned under the head of a bolt or a nut in order to provide a smooth bearing surface and distribute the fastener load over a wider area.

Zinc-plated, zinc yellow-chromate plated, and chrome-plated steel washers are corrosion resistant in wet environments.

General purpose steel flat washers are primarily used in every day applications and are utilized in dry environments.
