DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
Specifications
Brand Name :
XGFH
Model Number :
DIN6926
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
0.01-0.2usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs per month
Delivery Time :
3-10 work days
Packaging Details :
20-25KG/Carton box and then pallet.
Name :
Hex flange nylon insert lock nuts
Standard :
DIN6926
Material :
Stainless steel 304
Grade :
A2-70
Finish :
Bright and clean
Thread :
Coarse
Type :
Flange Nut
System of measurement :
Metric
Thread direction :
Right thread
Lock Type :
Nylon insert
Description

Product Description:

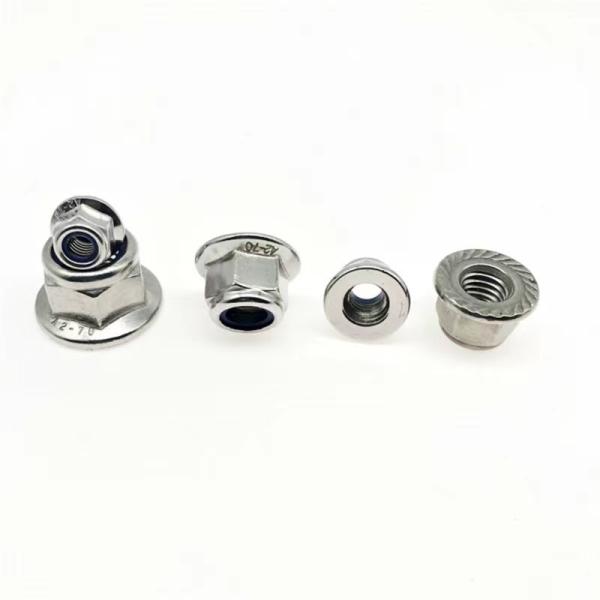

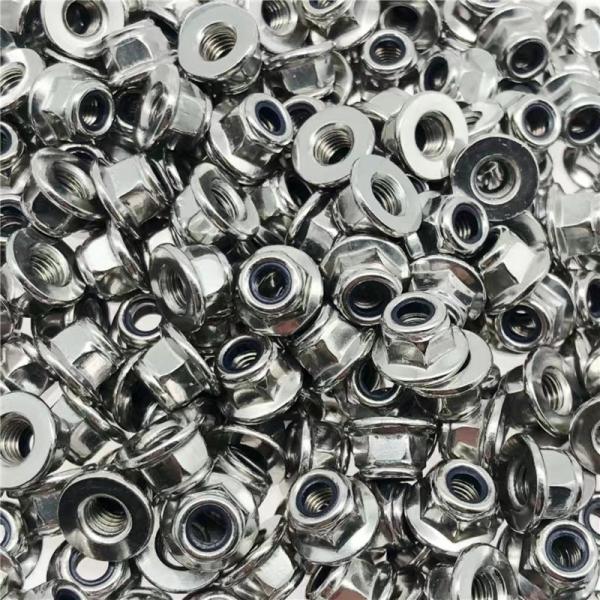

DIN6926 Stainless Steel A2.70 Hex Flange Nylon Insert Lock Nuts

DIN6926 Stainless Steel A2.70 Hex Flange Nylon Insert Lock Nuts Made In China.

The metric Nylon Insert Flange is a hex drive nut and washer combination.

This product combines the best attributes of both common hex nylon insert and flange type locknuts and requires sufficient thickness to accommodate wrenching height and nylon collar height.It’s common to find product with blue nylon rings,designating the part as metric.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Flange nuts can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.

Products name DIN6926 Stainless Steel A2.70 Hex Flange Nylon Insert Lock Nuts
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L
Steel Grade: Class 4,Class 8,Class 10 and Class 12
Finishing Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE
Related Products ISO4017 Hex Bolts,ISO4032 Hex Nuts,ISO7089 Flat Washers
Application

The flange makes the Nylon insert flange lock nut ideal when assembling components that consist of thin materials,slots or non-precision oversize holes.

Mating part must extend at least one thread past the flange nut top surface to assure locking element engagement.The flange will typically require more torque to produce a clamp load than non-flange nuts.
Stock Products Flange Lock nut in stock with Black Oxide,Zinc Plated,Yellow Zinc.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.

Product Drawing:


Metric Nylon-Insert Flange Locknuts
DIN 6926-1983
DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut
d p dc h m s
max min max min min max
M5 0.8 11.8 6.74 7.1 4.7 7.78 8
M6 1 14.2 8.74 9.1 5.7 9.78 10
M8 1/1.25 17.9 10.67 11.1 7.6 12.73 13
M10 1/1.25/1.5 21.8 13.07 13.5 9.6 14.73 15
M12 1.25/1.5/1.75 26 15.67 16.1 11.6 17.73 18
M14 1.5/2 29.9 17.68 18.2 13.3 20.67 21
M16 1.5/2 34.5 19.46 20.3 15.3 23.67 24
M20 1.5/2.5 42.8 23.96 24.8 18.9 29.16 30

DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock NutDIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut

DIN6926 Stainless Carbon Steel Flange Nuts A2.70 Nylon Insert Hex Flange Lock Nut


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
