18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
Specifications
Brand Name :
XGFH
Model Number :
ASME B18.2.1
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
xxx
MOQ :
100pcs
Price :
0.1-2.5usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
100000pcs per month
Delivery Time :
5-15 work days
Packaging Details :
25kg per carbon box and then pallet.
Standard :
ASME B18.2.1
Material :
Stainless steel 304
Grade :
A4270
Finish :
Clean and Bright
System of measurement :
Imperial
Thread :
Full thread
Thread Fit :
Coarse
Thread Direction :
Right
Head Marking :
A2-70
Drive :
Hexagon
Description

Product Description:

18-8 Stainless Steel Hex Bolt Hex Head Screws

18-8 Stainless Steel Hex Bolt Hex Head Screws Made In China.

Hex cap screws and head bolts feature a hexagonal head that is utilized during the tightening of the fastener.

A hex cap screw utilizes a washer face under the head and a chamfered end,while the hex bolts lack those features and requires a nut.

These fasteners are commonly used in construction,machine parts,and maintenance repairs.

Hex cap screws and hex bolts are manufactured in variety of sizes,finished,grades,and materials depending on application.

Products name 18-8 Stainless Steel Hex Bolt Hex Head Screws
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Hex Nuts,Flat Washer,and Spring Washer
Applications Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry.
Stock Products Hex head screw most of sizes are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.

Product Description:

18-8 Stainless Steel Hex Bolt Hex Head Screws

18-8 Stainless Steel Hex Bolt Hex Head Screws Made In China.

Hex cap screws and head bolts feature a hexagonal head that is utilized during the tightening of the fastener.

A hex cap screw utilizes a washer face under the head and a chamfered end,while the hex bolts lack those features and requires a nut.

These fasteners are commonly used in construction,machine parts,and maintenance repairs.

Hex cap screws and hex bolts are manufactured in variety of sizes,finished,grades,and materials depending on application.

Products name 18-8 Stainless Steel Hex Bolt Hex Head Screws
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L
Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80
Finishing Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet
Related Products Hex Nuts,Flat Washer,and Spring Washer
Applications Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry.
Stock Products Hex head screw most of sizes are in stock.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.

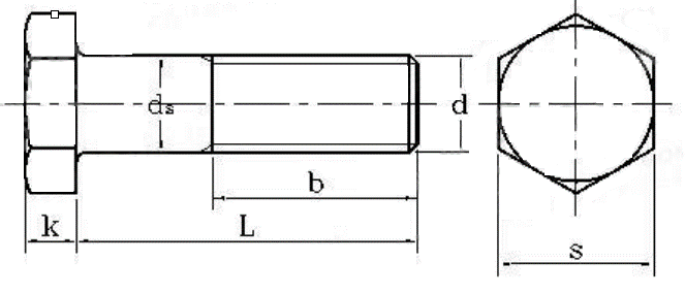

Product Drawing:

Hex bolts
ASME/ANSI B18.2.1-2010
18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws
d(ich) ds(ich) s(ich) k(ich) b(ich)
min max min max min max L≤6 L>6
1/4 0.237 0.26 0.425 0.438 0.15 0.188 0.75 1
5/16 0.298 0.324 0.484 0.5 0.195 0.235 0.875 1.125
3/8 0.36 0.388 0.544 0.562 0.226 0.268 1 1.25
7/16 0.421 0.452 0.603 0.625 0.272 0.316 1.125 1.375
1/2 0.482 0.515 0.725 0.75 0.302 0.364 1.25 1.5
5/8 0.605 0.642 0.905 0.938 0.378 0.444 1.5 1.75
3/4 0.729 0.768 1.088 1.125 0.455 0.524 1.75 2
7/8 0.852 0.895 1.269 1.312 0.531 0.604 2 2.25
1 0.976 1.022 1.45 1.5 0.591 0.7 2.25 2.5
1-1/8 1.098 1.149 1.631 1.688 0.658 0.78 2.5 2.75
1-1/4 1.223 1.277 1.812 1.875 0.749 0.876 2.75 3
1-3/8 1.345 1.404 1.994 2.062 0.81 0.94 3 3.25
1-1/2 1.47 1.531 2.175 2.25 0.902 1.036 3.25 3.5
1-5/8 1.591 1.658 2.356 2.438 0.978 1.116 3.5 3.75
1-3/4 1.716 1.785 2.538 2.625 1.054 1.196 3.75 4
1-7/8 1.839 1.912 2.719 2.812 1.13 1.276 4 4.25
2 1.964 2.039 2.9 3 1.175 1.388 4.25 4.5
2-1/4 2.214 2.305 3.262 3.375 1.327 1.548 / 5
2-1/2 2.461 2.559 3.625 3.75 1.479 1.708 / 5.5
2-3/4 2.711 2.827 3.988 4.125 1.632 1.869 / 6
3 2.961 3.081 4.35 4.5 1.815 2.06 / 6.5
3-1/4 3.21 3.335 4.712 4.875 1.936 2.251 / 7
3-1/2 3.461 3.589 5.075 5.25 2.057 2.38 / 7.5
3-3/4 3.726 3.858 5.437 5.625 2.241 2.572 / 8
4 3.975 4.111 5.8 6 2.424 2.764 / 8.5

18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws

18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws18-8 Stainless Steel Hex Head Bolts Metal 250mm Hex Head Screws

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
