DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
Specifications
Brand Name :
XGFH
Model Number :
DIN7504N
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
USD0.01-0.3/PC
Payment Terms :
T/T
Supply Ability :
500000PCS PER MONTH
Delivery Time :
3-10 work days
Packaging Details :
Bulk into plastic bag and carton box,and then Pallet.
Standard :
DIN7504N
Grade :
A2-70
Material :
Stainless steel 304
Finish :
Bright
Size :
ST2.9-ST6.3
Threading :
Drilling
Tapping Method :
Thread Forming
Drive :
Phillips
Head type :
Pan Head
Description

18-8 Stainless Steel Phillips Rounded Head Drilling Screws for Metal

Product Description:

18-8 stainless steel screws have good chemical resistance and may be mildly magnetic. They save you time and effort by drilling their own holes and fastening in a single operation. They have a hardened steel drill point to penetrate steel. Length is measured from under the head.

Self drilling screws have a drill bit point. Pan heads are slightly rounded with short vertical sides. Phillips drive is x-shaped for installation with a phillips screw driver.

Material: Stainless Steel 304

Screw type: Phillips Pan Head Self Drilling screws;

Screw Size: Diameter ST2.2 to ST6.3,Screw Length 50mm

Ideal use for wood, metal or other tough materials.

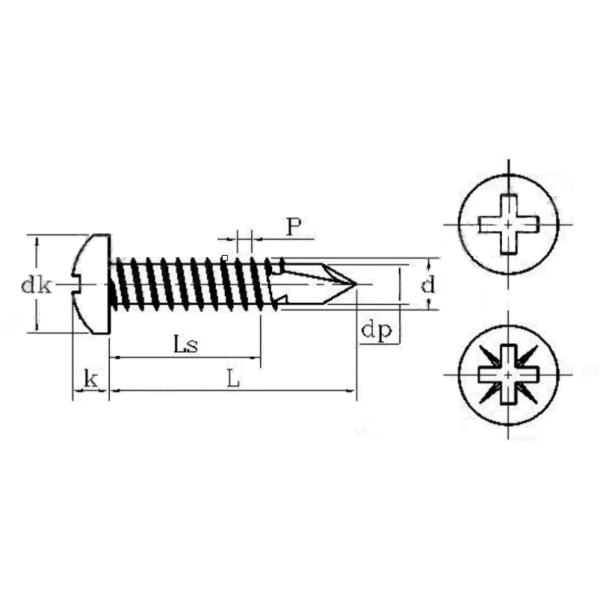

Product Drawings:

Cross recessed pan head drilling screws with tapping screw threa
DIN 7504N
DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304
d(mm) P(mm) dk(mm) k(mm) Drive Size dp(mm)
min max min max max
ST2.2 0.8 3.7 4 1.4 1.6 0 2.3
ST2.9 1.1 5.3 5.6 2.15 2.4 1 2.8
ST3.5 1.3 6.64 7 2.35 2.6 2 3.1
ST4.2 1.4 7.64 8 2.8 3.1 3.6
ST4.8 1.6 9.14 9.5 3.4 3.7 4.1
ST5.5 1.8 10.57 11 3.7 4 3 4.8
ST6.3 1.8 11.57 12 4.3 4.6 5.8

Production Workshop:


DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304

Packing:

DIN 7504 N Pan Head Self Tapping Phillips Screws Stainless Steel 304

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
