Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
Specifications
Brand Name :
XGFH
Model Number :
ISO7045
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
0.01-0.2usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs per month
Delivery Time :
3-10 work days
Packaging Details :
20-25KG/Carton box and then pallet.
Name :
Cross drive pan head machine screw
Standard :
ISO7045,GB818,DIN7985
Material :
Mild Carbon steel
Grade :
Class 4.8
Finish :
Zinc Plated
Thread :
Coarse
Threading :
Partially Threaded
System of measurement :
Metric
Thread direction :
Right thread
Drive Style :
Cross, Phillips
Description

Product Description:

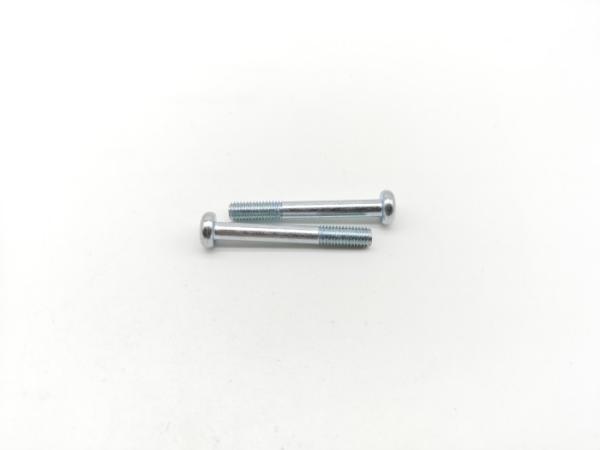

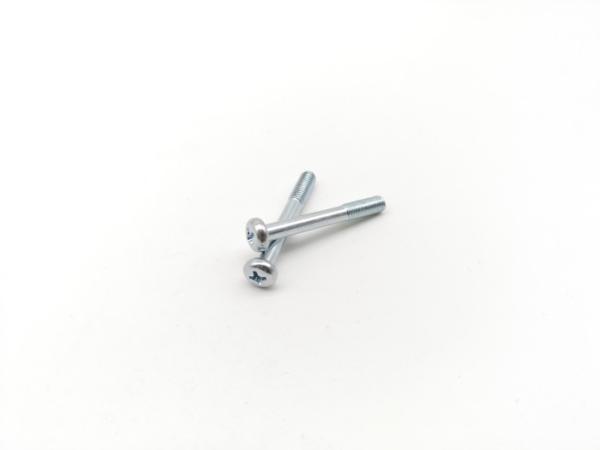

ISO7045 Zinc Plated Steel Grade 4.8 Cross Drive Pan Head Machine Screws

ISO7045 Zinc Plated Steel Grade 4.8 Cross Drive Pan Head Machine Screws Made In China.

Machine Screws have a uniform diameter the entire length of the shaft as opposed to tapered screws which have a pointed tip.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Machine Screws can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.

Products name ISO7045 Zinc Plated Steel Grade 4.8 Cross Drive Pan Head Machine Screws
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L
Steel Grade: Class 4,Class 8,Class 10 and Class 12
Finishing Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE
Related Products DIN933 Hex Bolts,DIN934 Hex Nuts,DIN125 Flat Washers
Application Machine screw are used to fasten machine components,appliances and more.
Stock Products Machine screw in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.

Drawing:

Cross recessed pan head screws
ISO7045 & GB/T818-2000
Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel
d(mm) P(mm) b(mm) dk(mm) k(mm) Recessed No.
min min max min max
M1.6 0.35 25 2.9 3.2 1.16 1.3 0
M2 0.4 25 3.7 4 1.46 1.6
M2.5 0.45 25 4.7 5 1.96 2.1 1
M3 0.5 25 5.3 5.6 2.26 2.4
M3.5 0.6 38 6.64 7 2.46 2.6 2
M4 0.7 38 7.64 8 2.92 3.1
M5 0.8 38 9.14 9.5 3.52 3.7
M6 1 38 11.57 12 4.3 4.6 3
M8 1.25 38 15.57 16 5.7 6 4
M10 1.5 38 19.48 20 7.14 7.5

Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated SteelIso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel

Iso 7045 Specification Grade 4.8 Partially Threaded Cross Pan Head Metal Screw Zinc Plated Steel

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
