ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
Specifications
Brand Name :
XGFH
Model Number :
ISO14581
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
1000pcs
Price :
0.01-0.2usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs per month
Delivery Time :
3-10 work days
Packaging Details :
20-25KG/Carton box and then pallet.
Name :
Slotted cheese head machine screw
Standard :
ISO14581,GB2673.1
Material :
Alloy steel 40Cr
Grade :
Class 10.9
Finish :
Zinc Plated
Thread :
Coarse
Threading :
Fully Threaded
System of measurement :
Metric
Thread direction :
Right thread
Drive Style :
Torx
Description

Product Description:

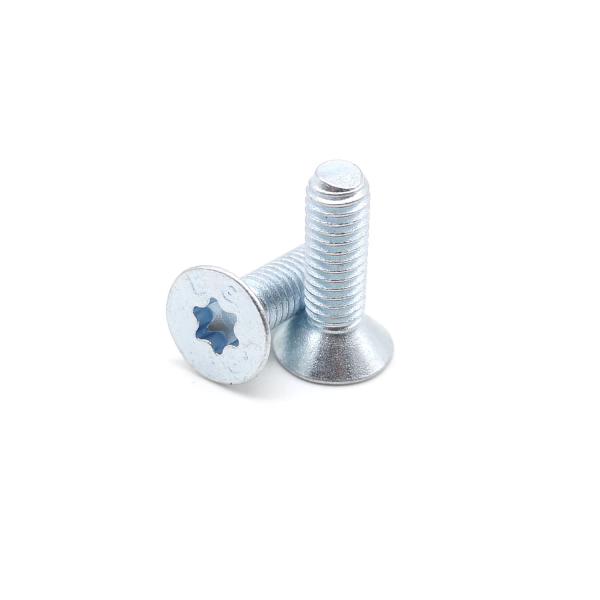

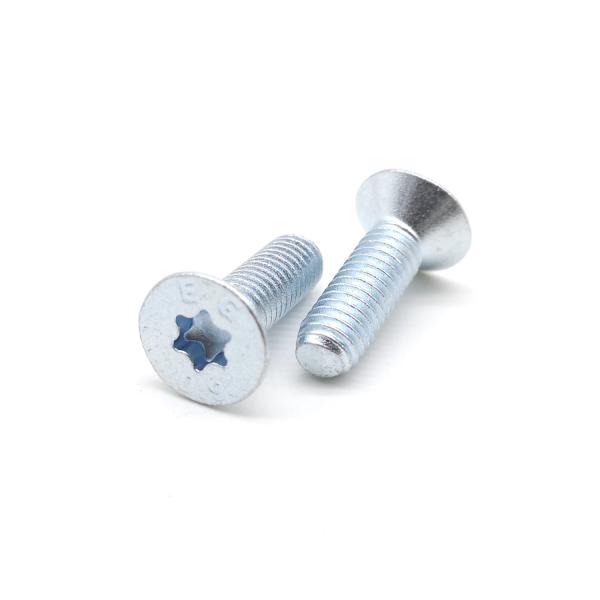

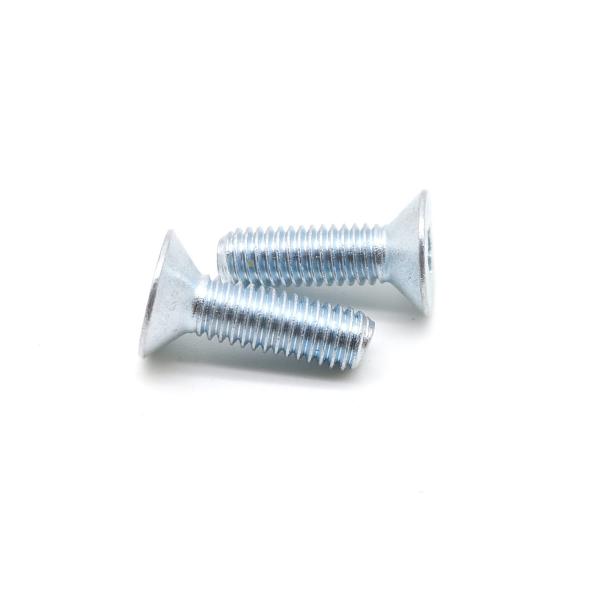

ISO14581 Alloy Steel Class 10.9 Zinc Plated Torx Countersunk Head Screws


ISO14581 Alloy Steel Class 10.9 Zinc Plated Torx Countersunk Head Screws Made In China.
Machine Screws have a uniform diameter the entire length of the shaft as opposed to tapered screws which have a pointed tip.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Machine Screws can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.

Products nameISO14581 Alloy Steel Class 10.9 Zinc Plated Torx Countersunk Head Screws
Standard:DIN,ASTM/ANSI JIS EN ISO,AS,GB
MaterialCarbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L
Steel Grade: Class 4,Class 8,Class 10 and Class 12
FinishingBlack Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE
Related ProductsHex nut,flat washer and spring washers.
Application

Machine screw are used to fasten machine components,appliances and more.
Torx and Torx-plus drives have more points of contact than other drives,allowing you to tighten the screw without damaging the recess.
Screws are angled under the head to sit flush within countersunk holes.

Stock ProductsMachine screw in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.



Drawing:


Hexalobular Lobular Socket Countersunk Head Screws
ISO 14581 & GB/T 2673-2007
ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx
d(mm)P(mm)b(mm)dk(mm)k(mm)t(mm)槽号
minminmaxmaxminmax
M613810.911.33.31.41.8T30
M81.2515.415.84.652.12.5T40
M101.517.818.352.32.7T50
M121.754821.52263.023.5T55
M1422525.573.223.7
M16228.52983.624.1T60
M202.535.436105.426T80



ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated TorxISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx

ISO14581 Countersunk Head Screws Alloy Steel Class 10.9 Zinc Plated Torx


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
