ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
Specifications
Brand Name :
XGFH
Model Number :
ASME B18.6.3 Table 20
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
0.01-0.2usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs per month
Delivery Time :
3-10 work days
Packaging Details :
20-25KG/Carton box and then pallet.
Name :
Phillips clotted pan head machine screw
Standard :
ASME B18.6.3 Table 20
Material :
Mild Carbon steel
Grade :
Class 4.8
Finish :
Zinc Plated
Thread :
Coarse
Threading :
Full Threaded
System of measurement :
Imperial,Inch
Thread direction :
Right thread
Drive Style :
Phillips Slotted Combo
Description

Product Description:

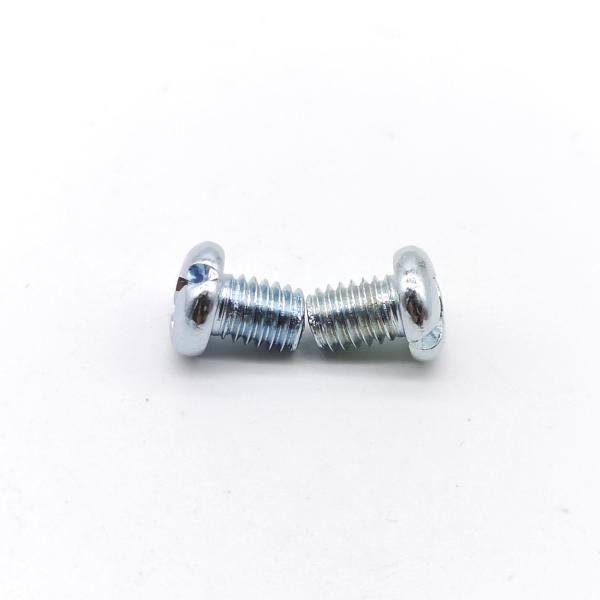

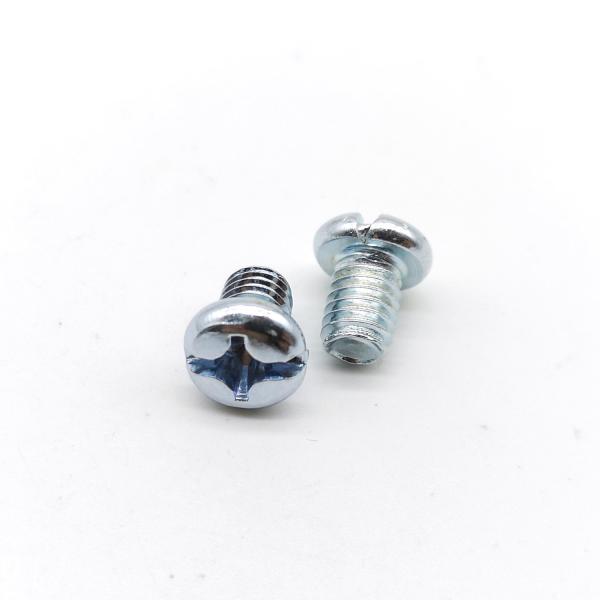

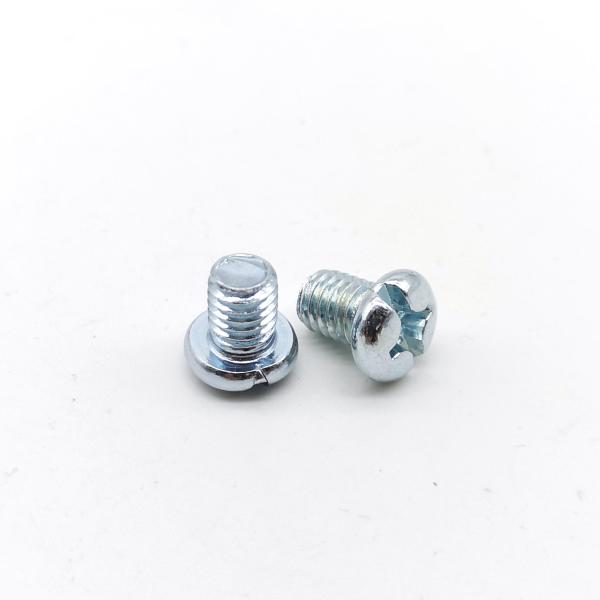

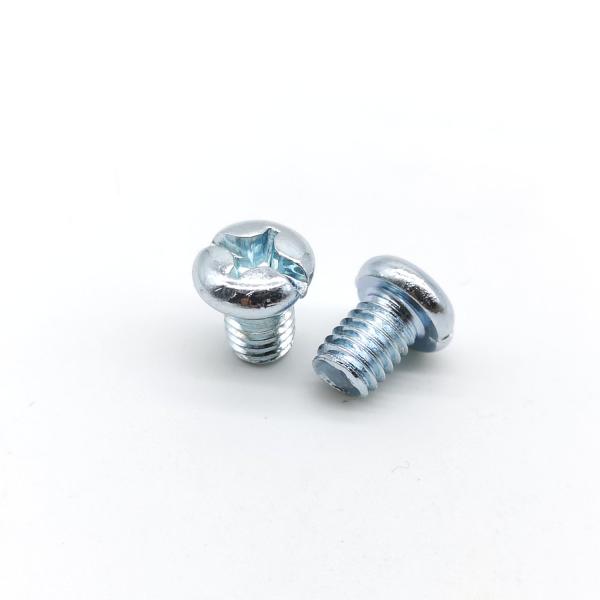

ASME B18.6.3 Pan Head Combination Phillips and Slotted Machine Screws

ASME B18.6.3 Pan Head Combination Phillips and Slotted Machine Screws Made In China.

Machine Screws have a uniform diameter the entire length of the shaft as opposed to tapered screws which have a pointed tip.

We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.

Machine Screws can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.

Please state this requirement in your inquiry.

Products name ASME B18.6.3 Pan Head Combination Phillips and Slotted Machine Screws
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L
Steel Grade: Class 4,Class 8,Class 10 and Class 12
Finishing Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE
Related Products Hex nut,flat washer and spring washers.
Application Machine screw are used to fasten machine components,appliances and more.
Stock Products Machine screw in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.

Drawing:

Combination Slotted-Cross Recessed Round Head Machine Screws
ANSI/ASME B18.6.3-2010 Table20
ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws
d(ich) dk(ich) k(ich) n(ich) t(ich)
min max min max min max min max
#2 0.155 0.167 0.053 0.062 0.023 0.031 0.02 0.031
#3 0.18 0.193 0.069 0.078 0.027 0.035 0.023 0.036
#4 0.205 0.219 0.076 0.086 0.031 0.039 0.027 0.04
#5 0.231 0.245 0.085 0.095 0.035 0.043 0.03 0.045
#6 0.256 0.27 0.093 0.103 0.039 0.048 0.033 0.054
#8 0.306 0.322 0.11 0.12 0.045 0.054 0.041 0.058
#10 0.357 0.373 0.126 0.137 0.05 0.06 0.048 0.068
1/4 0.473 0.492 0.162 0.175 0.064 0.075 0.063 0.087
5/16 0.594 0.615 0.203 0.218 0.072 0.084 0.076 0.106
3/8 0.716 0.74 0.244 0.261 0.081 0.094 0.09 0.123


ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine ScrewsASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws

ASME B18 6.3 Steel Machine Screws Pan Head Combination Phillips Slotted Machine Screws

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
