Specifications
Brand Name :
XGFH
Model Number :
DIN914
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100pcs
Price :
0.01-2.5usd/pc
Payment Terms :
T/T, L/C
Supply Ability :
100000pcs per month
Delivery Time :
5-15 work days
Packaging Details :
25kg per carbon box and then pallet.
Standard :
DIN914
Name :
Flat Tip Set Screws
Material :
Alloy Steel
Grade :
45H
Finish :
Black Oxide
Drive :
Hex Socket
Specification Met :
ASTM F912,ASME B18.3
Head Type :
Headless
Thread Type :
UNC
HS CODE :
731815.9000
Description

Product Description:

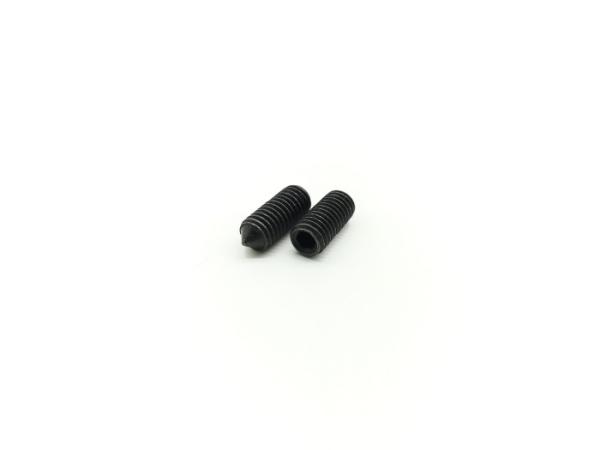

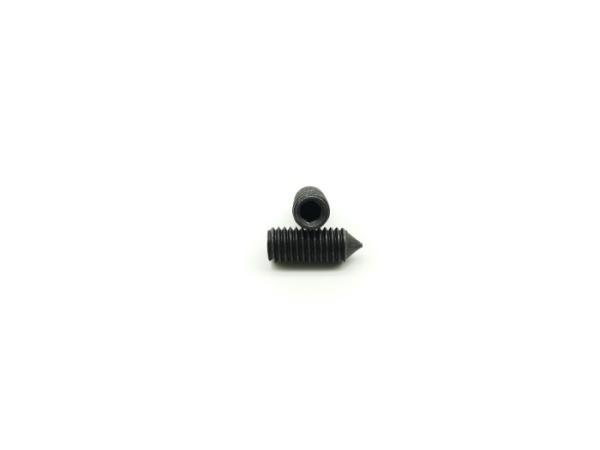

Alloy Steel Cone-Point Set Screws

These alloy steel set screws have a pointed tip that wedges into the contact surface for a secure hold on soft materials such as brass. Length listed is the overall length.

Black-oxide alloy steel set screws resist corrosion in dry environments.

Product Features:

Commonly used to secure pulleys to shafts,socket set screws are generally headless and rest flush with or below the surface of the application.
The cone point penetrates or locates into a depression in the mating material to achieve the best grip of set screw points and permanently set parts.

Notes:

Full Dog and Half Dog Points have an extended tip that fits into a hole drilled in a shaft.Use these for permanent location of one part to another.They often replace dowel pins.
Length is measured in overall length including the tip.Often used as adjusting screws,Flat Point,Oval Point,Nylon Tip and Brass Tip screws cause little or no damage to the contact surface.These screws are good for thin wall thickness and soft plugs and designed for frequent resetting and relocating.With flat points,greatest contact is provided on shafts with areas that are ground flat.Nylon patch acts as thread locker.

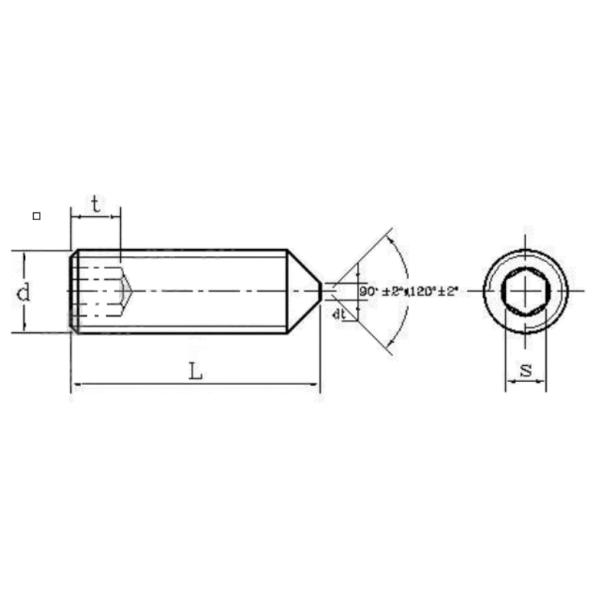

Product Drawing:

Hexagon socket set screws with cone point
DIN 914-1980
ISO 4027 DIN 914 Steel Socket Head Cap Screw Hex Drive Cone Point Alloy Steel
d(mm) P(mm) s(mm) t(mm)
Nom min max min
M1.4 0.3 0.7 0.711 0.724 0.6
M1.6 0.35 0.7 0.711 0.724 0.7
M1.8 0.35 0.7 0.711 0.724 0.8
M2 0.4 0.9 0.889 0.902 0.8
M2.5 0.45 1.3 1.27 1.295 1.2
M3 0.5 1.5 1.52 1.545 1.2
M4 0.7 2 2.02 2.045 1.5
M5 0.8 2.5 2.52 2.56 2
M6 1 3 3.02 3.08 2
M8 1.25 4 4.02 4.095 3
M10 1.5 5 5.02 5.095 4
M12 1.75 6 6.02 6.095 4.8
M14 2 6 6.02 6.095 5.6
M16 2 8 8.025 8.115 6.4
M18 2.5 10 10.025 10.115 7.2
M20 2.5 10 10.025 10.115 8
M22 2.5 12 12.032 12.142 9
M24 3 12 12.032 12.142 10




Production Workshop:

ISO 4027 DIN 914 Steel Socket Head Cap Screw Hex Drive Cone Point Alloy Steel

Product Warehouse:
ISO 4027 DIN 914 Steel Socket Head Cap Screw Hex Drive Cone Point Alloy Steel
