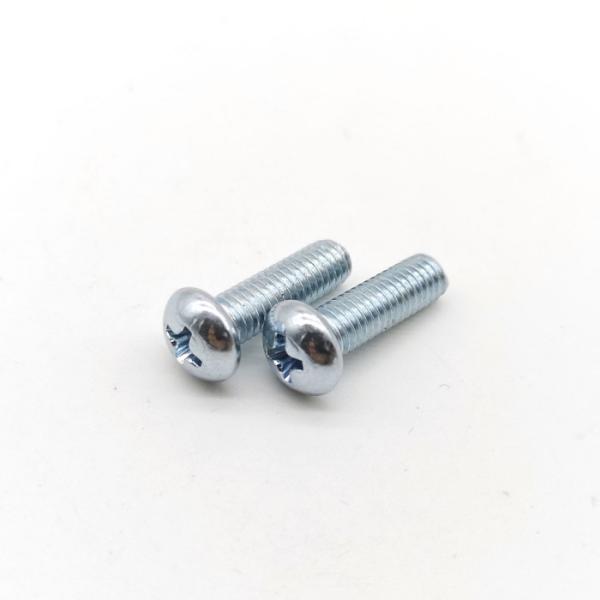

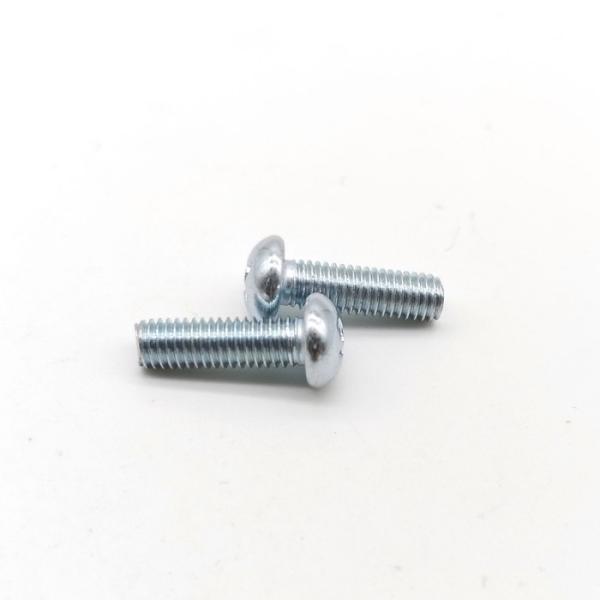

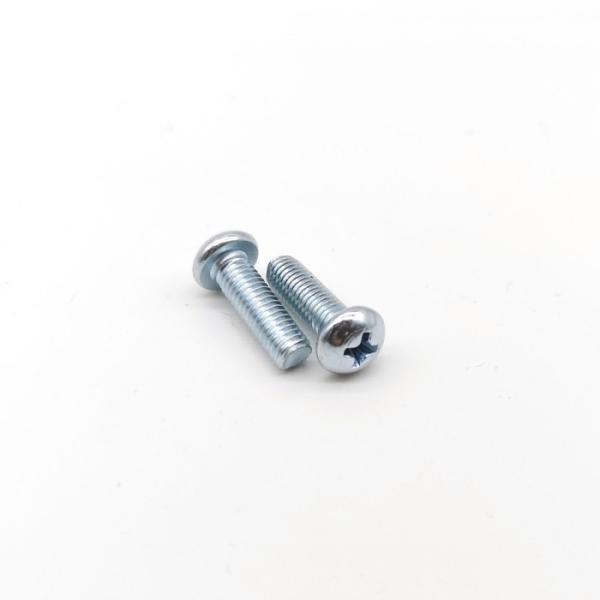

Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
Specifications
Brand Name :
XGFH
Model Number :
GB818-85
Certification :
ISO9001
Place of Origin :
China
MOQ :
100PCS
Price :
USD0.001-0.1/PC
Payment Terms :
T/T, L/C
Supply Ability :
500000PCS PER MONTH
Delivery Time :
3-20 Work days
Packaging Details :
Bulk into plastic bag and carton box,and then Pallet.
Standard :
GB818-85
Grade :
4.8
Material :
Mild steel
Surface treatment :
Blue White Zinc 48h
Drive type :
Phillips
Head type :
Pan head
Thread direction :
Right hand
Thread tolerance :
6H/6G
Description

These steel pan head screws are coated for corrosion resistance.

Length is measured from under the head.

Zinc-plated steel screws resist corrosion in wet environments.

Cross recessed pan head screws
GB/T818-2000
Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
d(mm) P(mm) b(mm) dk(mm) k(mm) Recessed No.
min min max min max
M1.6 0.35 25 2.9 3.2 1.16 1.3 0
M2 0.4 25 3.7 4 1.46 1.6
M2.5 0.45 25 4.7 5 1.96 2.1 1
M3 0.5 25 5.3 5.6 2.26 2.4
M3.5 0.6 38 6.64 7 2.46 2.6 2
M4 0.7 38 7.64 8 2.92 3.1
M5 0.8 38 9.14 9.5 3.52 3.7
M6 1 38 11.57 12 4.3 4.6 3
M8 1.25 38 15.57 16 5.7 6 4
M10 1.5 38 19.48 20 7.14 7.5

Phillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head ScrewsPhillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head ScrewsPhillips Stainless Steel Countersunk Machine Screws M5 M4x12mm Round Head Screws
