Specifications
Brand Name :
XG
Model Number :
Dowel pin
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100PCS
Price :
USD0.01-2/PCS
Payment Terms :
T/T
Supply Ability :
100000PCS per month
Delivery Time :
3-20work days
Packaging Details :
Bulk into plastic bag and carton box, and then Pallet.
Name :
Internal threaded dowel pins
Grade :
Alloy steel
Finish :
Polishing
Material :
40Cr
Type :
Internal threaded
Thread :
Coarse
System :
Inch and Metric
Treatment :
Hardened
Hardness :
HRC 38-50
Description

Description:

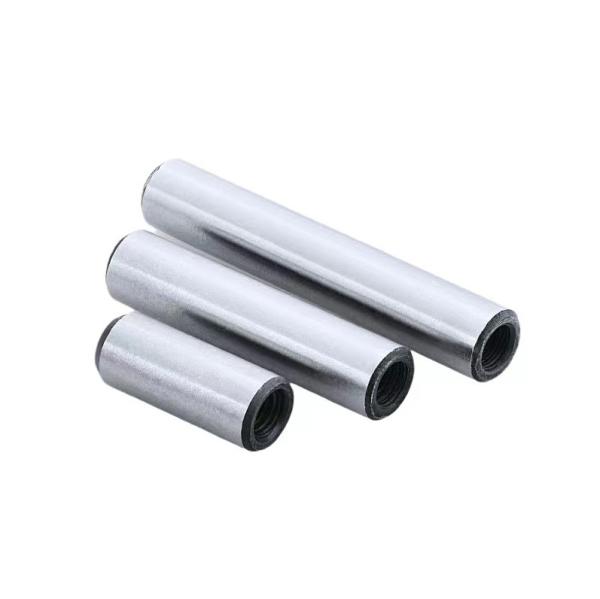

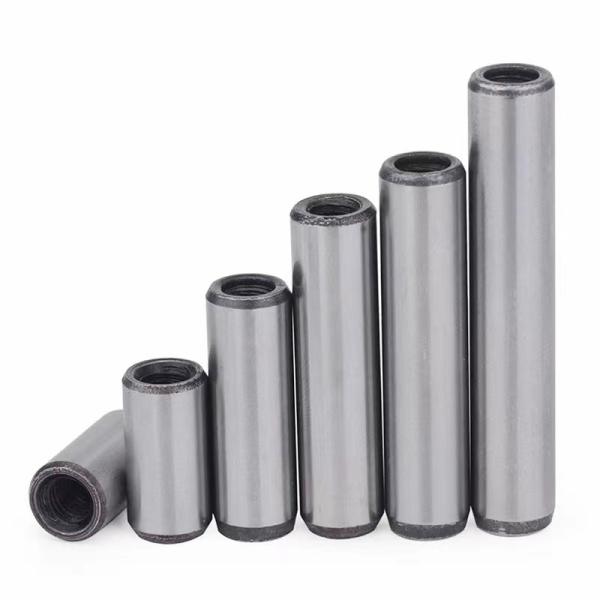

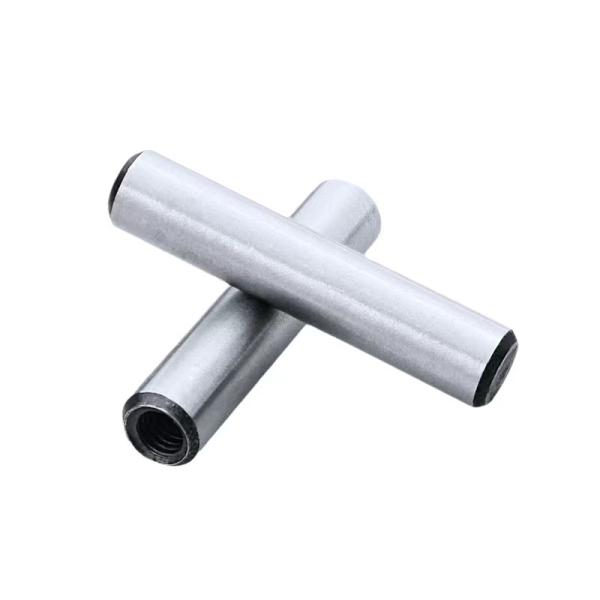

Alloy Steel Hardened Polishing Parallel Pin with Internal Thread

Alloy Steel Hardened Polishing Parallel Pin with Internal Thread Made In China.

One end of these pins is tapped, and the other is chamfered for easy insertion. To remove, thread a screw or tool into the tapped hole, then pull the pin out. Because they aren't vented.

Pins that meet ASME B18.8.2 specifications conform to ASME standards for material and dimensions.

Metric pins meet DIN 7979D-m6 specifications.

Steel pins have good strength. Pins with a black-oxide finish resist rusting in dry environments.

Products name Alloy Steel Hardened Polishing Parallel Pin with Internal Thread
Standard: DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material Carbon Steel,Aluminum;Stainless Steel:SS304, SS316,SS316L
Finishing Black Oxide,Zinc Plated,Dacromet,Bright and Clean
Related Products Bolts,Flat Washer,and Spring Washer
Applications Internal threaded Pins work best in through holes. Use them as pivots, hinges, shafts, jigs, and fixtures to locate or hold parts. Pins are precision ground for accurate alignment. Breaking strength is measured as double shear, which is the force required to break a pin into three pieces.
Stock Products Internal threaded pins can be produced as your drawings.
Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd
Focus On Supplying High Quality Fasteners.

Drawing:

Parallel Pins With Internal Thread
GB 120
Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread
d(mm) d m6 a c d1 P d2 t1 t2 t3
min max approx. approx. Pitch min.
6 6.004 6.012 0.8 1.2 M4 0.7 4.3 6 10 1
8 8.006 8.015 1 1.6 M5 0.8 5.3 8 12 1.2
10 10.006 10.015 1.2 2 M6 1 6.4 10 16 1.2
12 12.007 12.018 1.6 2.5 M6 1 6.4 12 20 1.2
16 16.007 16.018 2 3 M8 1.25 8.4 16 25 1.5
20 20.008 20.021 2.5 3.5 M10 1.5 10.5 18 28 1.5
25 25.008 25.021 3 4 M16 2 17 24 35 2
30 30.008 30.021 4 5 M20 2.5 21 30 40 2
40 40.009 40.025 5 6.3 M20 2.5 21 30 40 2.5
50 50.009 50.025 6.3 8 M24 3 25 36 50 2.5

Hardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal ThreadHardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal ThreadHardened Polishing Alloy Steel Parallel Dowel Pin Rivets And Pins Internal Thread

FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production


Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.

Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
