DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
Specifications
Brand Name :
XGFH
Model Number :
DIN985
Certification :
ISO9001,EN10204 3.1Certificate
Place of Origin :
China
MOQ :
100PCS
Price :
USD0.01-0.2/PC
Payment Terms :
T/T, L/C
Supply Ability :
500000PCS PER MONTH
Delivery Time :
2-10work days
Packaging Details :
Bulk into plastic bag and carton box,and then Pallet.
Standard :
DIN985
Grade :
Class A4-80
Material :
Stainless Steel 316
Finish :
Clean
Lock type :
Nylon insert
Thread direction :
Right hand
Thread fit :
Coarse
Thread tolerance :
6H
Description :
Hex Nylon Insert Lock Nuts
Description

Product Description:

1. Certification: ISO9001, ROHS, SGS
2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9, A2-70, A4-70, A4-80
4. Finishing: Yellow Zinc, Blue White Zinc Plated, Galvanized,HDG,Chromate,Dacromet, PTFE
5. Available Material: Carbon steel, stainless steel SS304, A2 ,Stainless steel SS314,A4.
6. Size: M3-M36, MOQ: 500pcs, Port: Shanghai,Ningbo
7. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.

Product Name DIN985 SUS316 Nylon Ring Lock Nuts
Material Carbon Steel:C1010, C1018, C12L14, C1035
Color Black,Yellow,White,Blue,Gray
Standard DIN,ASME,ASNI,ISO
Grade Grade 4,Grade 8,Grade 10
Finished Galvanized Steel,Black Oxide,Nickel Plated,Chromat,Dacromet
Thread Coarse,Fine
Used Building Industry Machinery,Wind Energy

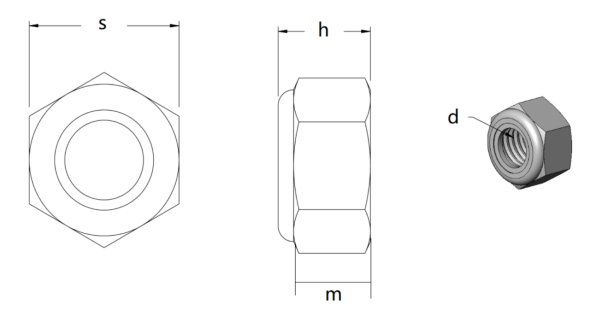

Product Drawing:

Prevailing Torque Type Hexagon Thin Nuts With Non-Metallic Insert
DIN 985-1987
DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand
d(mm) P(mm) h(mm) m(mm) s(mm)
max min min max min
M3 0.5 4 3.7 2.4 5.5 5.32
M4 0.7 5 4.7 2.9 7 6.78
M5 0.8 5 4.7 3.2 8 7.78
M6 1 6 5.7 4 10 9.78
M7 1 7.5 7.14 4.7 11 10.73
M8 1/1.25 8 7.64 5.5 13 12.73
M10 1/1.25/1.5 10 9.64 6.5 17 16.73
M12 1.25/1.5/1.75 12 11.57 8 19 18.67
M14 1.5/2 14 13.3 9.5 22 21.67
M16 1.5/2 16 15.3 10.5 24 23.67
M18 1.5/2/2.5 18.5 17.66 13 27 26.16
M20 1.5/2/2.5 20 18.7 14 30 29.16
M22 1.5/2/2.5 22 20.7 15 32 31
M24 2/3 24 22.7 15 36 35
M27 2/3 27 25.7 17 41 40
M30 2/3.5 30 28.7 19 46 45
M33 2/3.5 33 31.4 22 50 49
M36 3/4 36 34.4 25 55 53.8
M39 3/4 39 37.4 27 60 58.8
M42 3/4.5 42 40.4 29 65 63.8
M45 3/4.5 45 43.4 32 70 68.1
M48 3/5 48 46.4 36 75 73.1

DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand

DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand

DIN 985 Stainless Steel Hex Nut With Nylon Insert SUS316 Right Hand

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
