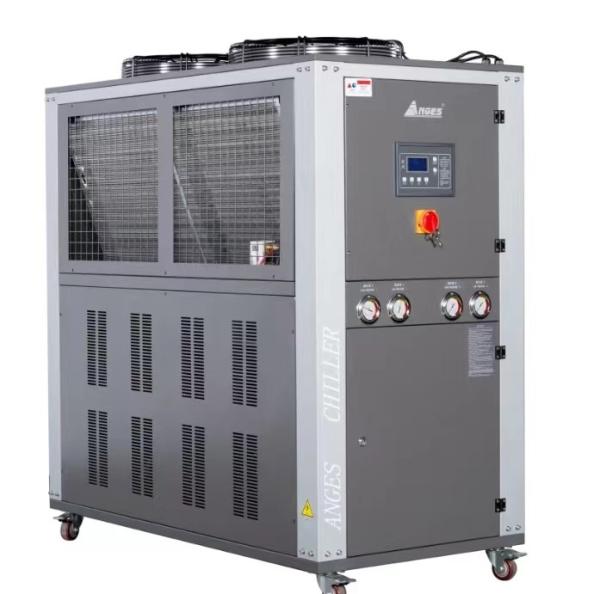

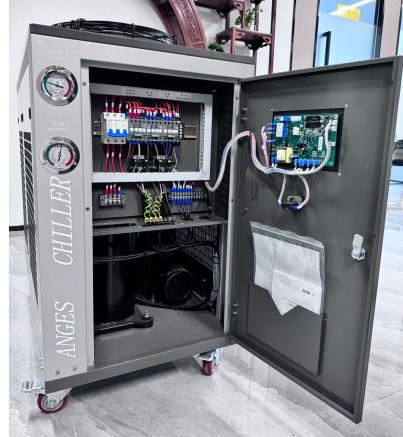

5HP Air Cooled Scroll Chiller Industrial Process Air Chillers For Printing And BOPP Film Lamination Line
5HP Air Cooled Scroll Chiller Industrial Process Air Chillers For Printing And BOPP Film Lamination Line
5HP Air Cooled Scroll Chiller Industrial Process Air Chillers For Printing And BOPP Film Lamination Line
5HP Air Cooled Scroll Chiller Industrial Process Air Chillers For Printing And BOPP Film Lamination Line
5HP Air Cooled Scroll Chiller Industrial Process Air Chillers For Printing And BOPP Film Lamination Line
5HP Air Cooled Scroll Chiller Industrial Process Air Chillers For Printing And BOPP Film Lamination Line
Specifications
Brand Name :
ANGES
Model Number :
5hp
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
25 days
Packaging Details :
Plywood case
Warranty :
1 year
Weight :
180kg
Evaporator :
Shell and Tube
Cooling Air Flow :
5000
Fan Power :
0.19kw
Input Power :
5.53
Condition :
New brand
Water Pump :
2bar
Voltage :
3PH~220V/380V/415V~50HZ/60HZ
Description

Futures of Air-cooled scroll Chillers

Air-cooled industrial chillers from 3 to 185 kW with scroll compressors.

Air-cooled industrial chillers are available in cooling capacities from 3 to 185 kW (0.85 to 52.6ons) with scroll compressor and are suitable for indoor or outdoor installation. These units are complete, including stainless steel #304 water tanks, pumps, stable shell&tube evaporators and axial fans.Simplicity, reliability and efficiency.

Technical Parameter of Air-cooled Scrolled Type Chiller

Model

Item

 ACK-5-Scrolled Type Chiller
Nominal cooling capacity Kcal/h 12126
kw 14.5
Input power kw 5.53
Power supply 3PH~380V/50HZ
Refrigerant Type R22
Type of control Capillary
Compressor Type Hermetic scroll type
Power (kw) 4.4
Condenser Type

Finned copper tube+low noise outer

rotor fan
Power(kw) 0.38
Cooling air flow(m³/h) 5000
Evaporator Type Shell and tube
Chilled water flow (m³/h) 2.5
Tank volume(L) 30
Inlet/outlet pipe chiller(inch) 1
Water pump Power(KW) 0.75
Lift(m) 20
Safety protection compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight kg 180
Dimension mm 1140*560*1250

Note: 1. Nominal cooling capacity of the chiller is according to:

Inlet chilled fluid temperature of the chiller: 17℃, Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature of the chiller: 30℃,Outlet cooling air temperature: 35℃

2. Working Range of the chiller:

The temperature range of chilled fluid of the chiller is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid of the chiller is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters of the chiller without further notice.
