Solder 15A Power M20 IP67 Assembly 3 Pin Male Female Electrical Waterproof Wire Connectors

Product Description:

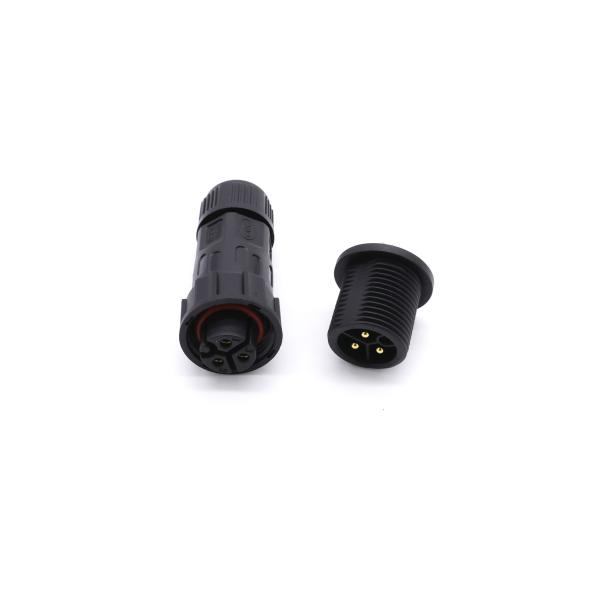

This M20 wire connector is a pair of assembly waterproof connector with male female plug. It is assembled with different
components, includes waterproof screw nut, cable gland, enclosures, coupling nut, male and female core, O-ring. The plastic
components is PA 66 material, the cable gland and O-ring is silicone rubber material, the hardware is gold plated brass.

This wire connector is 3 pin welding type with solder sockets, which is required welding tool for cable installation. The connector is length about 90 mm, and the coupling nut is diameter about 23 mm. For limited space, please consider the connector diameter once required.
The connector can carry 15A / 300V power, which is suitable for the wire gauge smaller than 1.5mm². The cable jacket requires smaller than 10mm.

Features:

• Product Name: Moisture-Proof Plug Connector, Weather-Proof Plugging Connector, Water-Proof Plug-In Connector

• Cable Diameter: 2.5-12mm

• Withstand Voltage: 1500V

• Voltage Rating: 250V

• Rated Current: 20A

• Color: Black

Technical Parameters:

Applications:

All waterproof connector are IP65-IP68 waterproof level, and through the tuv certification, the best-selling products in nearly 30 provinces, municipalities and autonomous regions and exported to North America, Europe, Southeast Asia and other countries. Widelyused in electronics, electrical, communications, lighting, LED display, stage sound, machine tools, automation equipment andconstruction machinery and other industries.

Our advantages:

1.Professional R&D team, provides OEM and ODM services and accept customized orders.
2.Keep improving ,high quality is our culture,cooperate with us,quality assurance and reasonable price.
3.Approved CE,UL,TUV,SAA,ISO,ROHS,etc certificate.
Provide CCC,UL,VED, etc ,cable to meet the needs of the customers.
4.Professional salesman guidance to select correct product,and you can get free sample before order.
5.One-stop production,We have our own factory, workshop and technology personnel.
6.one to one pre-sale and after-sale services.

Packing and Shipping:

FAQ:

• Q1.What's your service?
  A1: We provide technical support and customize solutions. contact: Linktron@link-tron.com

  Q2. Can I have a sample for quality check?
  A2: Yes, samples based on your request with fast delivery.

  Q3.How to place an order?
  A4: Contact with online service, or sent an email to us, we will confirm you with product price, specs, packing etc.

  Q5. How about your delivery time?
  A5: Shipped in 3-8 working days after payment be confirmed.

  Q6: What is your terms of payment ?
  A6: Accepted Payment Type: T/T, L/C, PayPal, Western Union or other payment methods.

  Q8: Which kind of wire connector can I use?
  A8:Kindly tell us your applications, cable diameter to help us recommend the suitable models.
