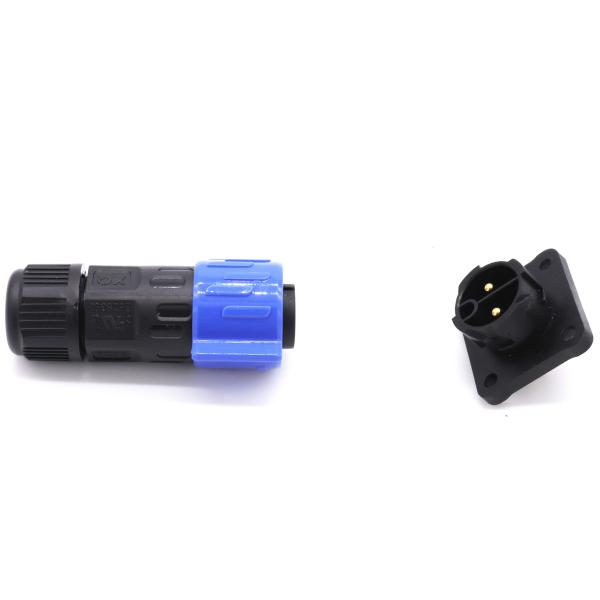

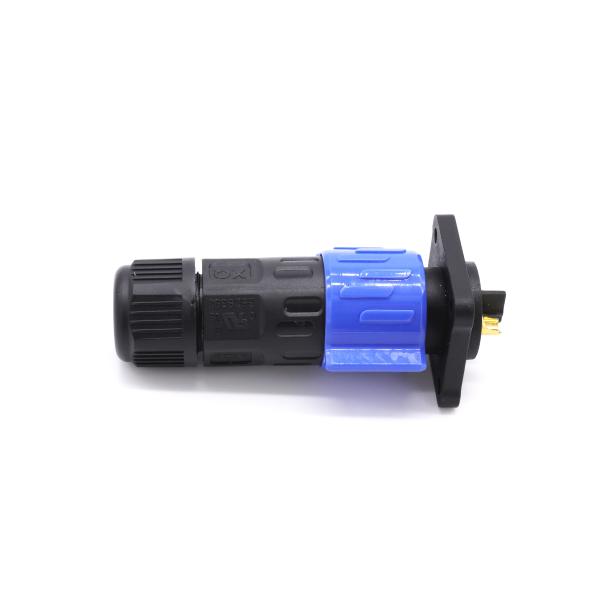

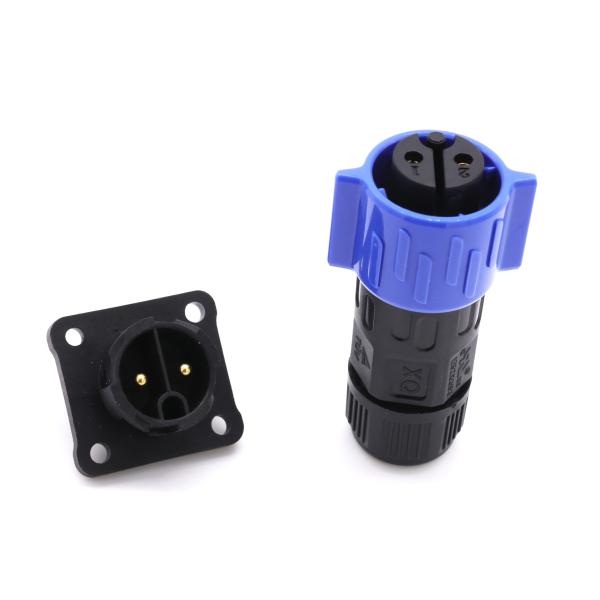

Male LED Light Strip Wire Connector , IP67 PA66 Circular Plug Connector
Male LED Light Strip Wire Connector , IP67 PA66 Circular Plug Connector
Male LED Light Strip Wire Connector , IP67 PA66 Circular Plug Connector
Male LED Light Strip Wire Connector , IP67 PA66 Circular Plug Connector
Male LED Light Strip Wire Connector , IP67 PA66 Circular Plug Connector
Male LED Light Strip Wire Connector , IP67 PA66 Circular Plug Connector
Specifications
Brand Name :
Xiangqian
Model Number :
M20 Self-lock Connector
Certification :
UL
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000PCS/days
Delivery Time :
10-15 days
Packaging Details :
450*320*280
Connector Gender :
Male Panel Mount and Female Plug
Material :
Nylon
Cable Diameter :
2.5-12mm
Rated Current :
20A
Connector Name :
M20 Self-lock Panel Mount
Operating Temperature :
-40℃ to +105℃
Temperature Range :
-25℃~+85℃
Cable Specification :
2.5mm²
Sample :
Free
Leadt Time :
10-15 days
Description

M20 20A LED Lighting IP67 PA66 Nylon Self-lock Panle Mount Waterproof Plug Connector

Product Description:

With multi-core design to fit with different industrial needs
Plastic socket is with fully electromagnetic and radio frequency interference protection
With gold-palted contact,stronger corrosion resistance and conductivity
PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive
2/3/4/5/7pin for power connector,9/12 for signal connector,power and signal can be compatible match
IP67/IP68 when mated
Current rating:5A/12A/20A rms

Features:

  • 1: 2,3,4,5,6,8 poles are available.

    2: Cording: A-code, B-code, C-code, D-code, X-code, S-Code, T- Code

    3: Screw connection/ Solder connection.

    4: Shielded/ ordinary.

    5: Circular connector with M20 self locking.

    6: Degree of protection IP 67.

    7:Ambient temperature -40°C ~105 °C .

Technical Parameters:

Product name
M20 Panel plug series
Number of cores
2-4 cores
Delivery time
the normal delivery time is 5 to 10 days.
Production
our company produces according to customer requirements
Proofing
customers provide samples or specifications
Color
Conventional white and black, other colors can be specified
Shape
circular
Characteristics
waterproof
Material
PVC, Nylon,Teflon,Pu
Waterproof grade
IP67
Working temperature
Nylon -40 °~+105 °
Rated voltage
250V/300V
Rated current
20A
Wire matching
≤ 1.0MM²~1.5MM²
Wire outer diameter
6.0MM~12.0MM
Can be inserted
500 times
Color
Black Blue/Black Yellow (customizable)

Applications:

Outdoor Decoration, LED lights,Vehicles,Light sensors,Infrared sensors,Water filters

Waterproof connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like a bicycle or bike.

Male LED Light Strip Wire Connector , IP67 PA66 Circular Plug Connector

Support and Services:

Full Certificate such as UL,CE,TUV,ROHS,CCC,SAA,TS16949,ISO14001 and so on.

Male LED Light Strip Wire Connector , IP67 PA66 Circular Plug Connector

Packing:

Our enterprise will strictly follow the connector specificatios and deliver the products in due time as required by the contract
Forward will provide waterproof connector technological maintenance and guarantee within one year if any quality problem happens to our product
Professional personnel will provide product specifications,product choice suggestions and installation methods
Professional personnel will provide operation training for free
Zero-distance service and phone number for around-the-clock service

FAQ:

Q1: Are you factory or trading company?

A: We are group company with trade company and our factory.

Q2: Is free sample available?

A: Yes, we are happy to send free samples of some items for quality evaluation. Please contact us to get the sample application process. Q3: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.

Q4: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: ) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes 3) We have a professional QA/ QC team to ensure the quality.

Q5: Do you accept OEM or ODM order?

A: Yes, we accept both OEM and ODM for customers.

Q6: What are your terms of delivery?

A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.

Q7: What is the payment way?

A: TT, LC first, DP or OA would be considered for the long-term customer Should you have other questions, please let us know.

Well add answers here for your further references. Thank you.
