Specifications
Brand Name :
Xiangqian
Model Number :
M12 Terminal Connector
Certification :
UL
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000PCS/days
Delivery Time :
10-15 days
Packaging Details :
450*320*280
IP Rating :
IP67
Connector Number :
2
Contact Resistance :
2.5mΩ
Gender :
Male/Female
Product Name :
Mini Type Waterproof Connector
Rated Current :
5A
Connector Application :
LED Light
Cable Specification :
2.5mm²
Material :
PVC
Sample :
Free
Lead Time :
10-15 days
Description

PVC Plastic circular Black/White connector M10 M12 M14 M16 Wire Cable Waterproof Connector IP65

Product Description:

The Waterproof Connector Cable is designed for washdown and corrosive environments, main used in LED lighting, Electrical bike, Motor and Electrical equipment.Its advantages are small size and space saving. The connector cable is IP65/IP67 waterproof, so don't worry about using it in rainy days. It is a very suitable accessory for electric bicycles and electric scooters.

Features:

  • 1. Strong conductivity, good ductility and long service life.
    2. Waterproof, moisture-proof, rain-proof, sun-proof and anti-corrosion.
    3. Flame retardant, anti-oxidation and environmental protection (all products are from green production lines).
    4. Easy installation: The assembly process of the product is simplified, and it is easy to install.
    5. Easy to maintain: in case of failure, just unscrew both ends of the waterproof connector.

Technical Parameters:

Connector M12 Terminal Ip65 waterproof connectors
2P 3P 4P 5P 6P IP65 IP67 IP68 waterproof connector
Wire 28~12Gauge,0.1-2MM²
Color Black, White, Other
Length Optional
Voltage Rating AC250V
Current Rating 1A~15A
Times Of Plug 1500
Contact Resistance 10mΩ
Insulation Structure 500M Ω at DC500V
Withstand Voltage 1.5KV
Temperature Rating -40~+120℃
Waterproof Level IP68/IP67/IP65
Max Cable OD 10mm
Pin Numbers 2-13 wires
Certifications CE/ROHS U/L
ins Number 2pin
Male Pin Material Copper/Copper Alloy (Gold plating/Nickel plating)
Female Pin Material Copper/Copper Alloy (Gold plating/Nickel plating)
Over-Mold Material PVC, TPU
Insulator Material PA66
Wire Specifications 24AWG---14AWG
Wire Diameter Φ5.0-Φ7.0
Protective Level IP66
Temperature Environment PVC: 0~+80℃; TPU: -40℃~ +125℃
Plug/Unplug Durability 1000 times

Applications:

LED waterproof cable is widely suitable for outdoor application connection of various LED products, such as LED strips, LED spotlights, LED wall washer landscape lighting, LED billboard lighting, LED tunnel lighting, LED flood lighting, LED street lights and LEDs Outdoor lighting display, etc. As well as coastal, river, lake or underwater engineering, mining engineering, underground engineering, solar water heaters, solar wind power generation, food industry, various mechanical equipment, aviation, aerospace, national defense and other communication and communication fields.

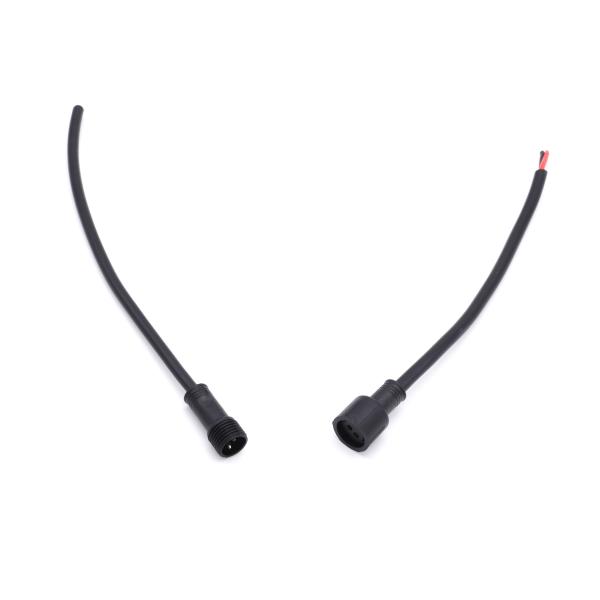

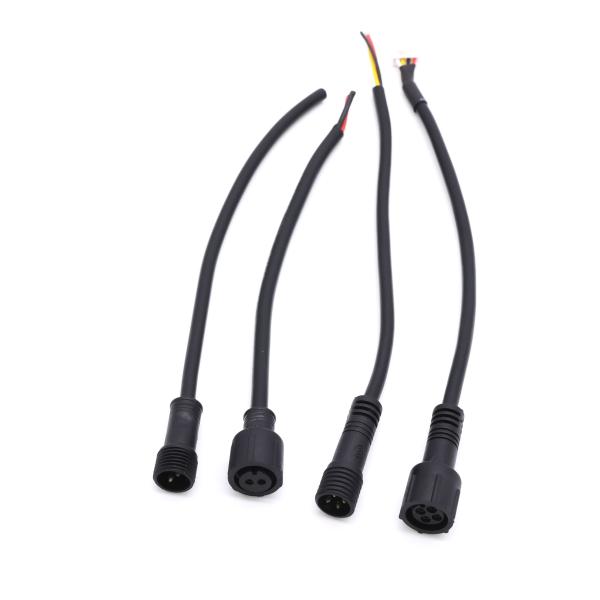

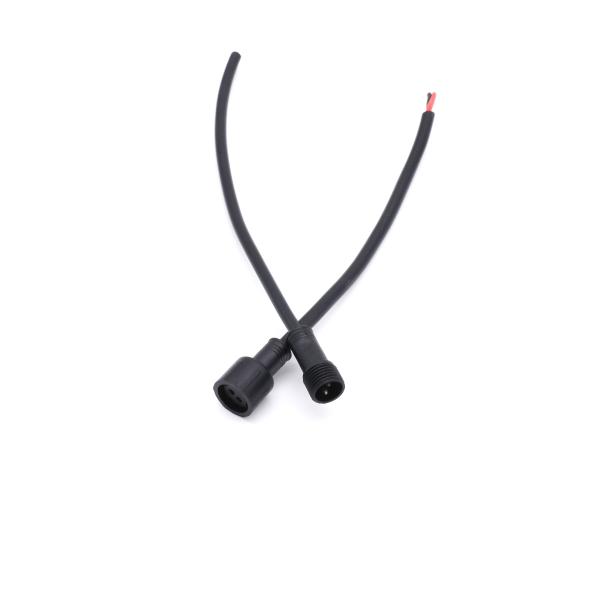

Female Electrical Waterproof Plug Connector M12 3 Pin 2.5mΩ Contact Resistance

Our advantages:


1.Professional connector manufacturer, with a strong and professional R&D team.OEM&ODM service is available.
2.we can control the quality and lead time, factory direct sales, quality assurance and reasonable price.
3. One-to-one after-sales service, please feel free to contact us if you have any questions.

Packing and Shipping:

Packing Details :

1. Our standard packing: Individual part with transparent PE bag with label;

2. OEM package available

Shipping Methods :

1. Samples and Small quantity order

FedEx/DHL/UPS/TNT/SF ,Door to Door.

FAQ:

  • Q1 : Are you a Factory or trading company?
    A1: We are manufacturer specialized in electrical technology more than years.


  • Q2 : Where is your factory located?
    A2:Our factory are located in Shenzhen city.


  • Q3: May I buy samples from you?
    A3: Yes! You are always the most welcome to place sample order to test our superiorquality and services.


  • Q4: What is your Warranty?
    A4: All the products will have 12 months Warranty


  • Q5: Can you put my brand name (logo) on these products?
    A5: Yes! The professional OEMservices will be welcomed to us. Our factory accepts tomake the logo free for bulk orders. We provide one-stop solution to your any requiremnt like custom color, package and logo print.
