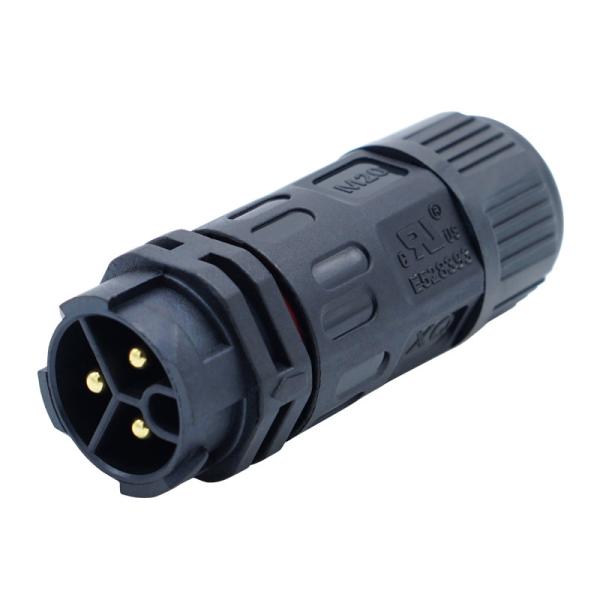

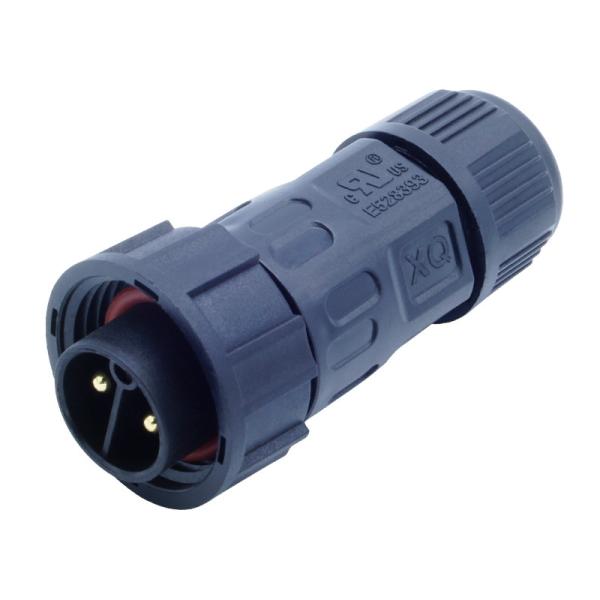

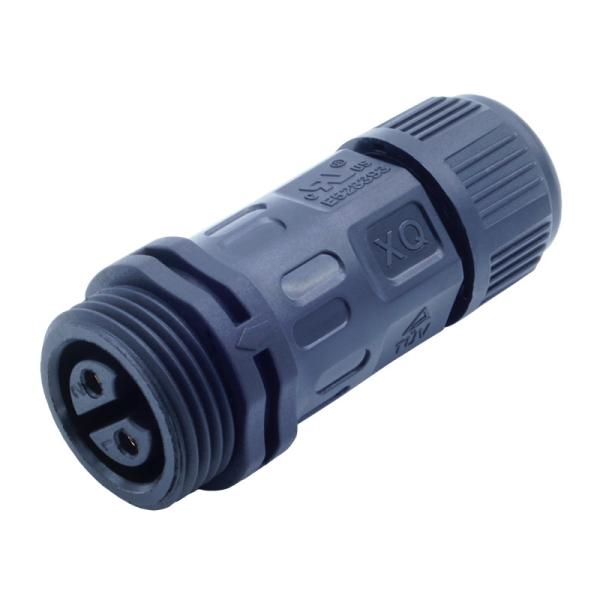

Straight Screw Waterproof Connector M20 Outdoor Assembly Type For Cable
Straight Screw Waterproof Connector M20 Outdoor Assembly Type For Cable
Straight Screw Waterproof Connector M20 Outdoor Assembly Type For Cable
Straight Screw Waterproof Connector M20 Outdoor Assembly Type For Cable
Straight Screw Waterproof Connector M20 Outdoor Assembly Type For Cable
Straight Screw Waterproof Connector M20 Outdoor Assembly Type For Cable
Specifications
Brand Name :
Xiangqian
Model Number :
M20 Plug
Certification :
RoHS
Place of Origin :
China
MOQ :
10PCS
Price :
$2.65-3.78
Payment Terms :
T/T, Western Union
Delivery Time :
10-15 days
Packaging Details :
450*320*280
Color :
Black
Connector Gender :
Male/Female
Connector Shell Size :
Standard
Connector Type :
Screw
Contact Plating :
Gold
Current Rating :
20A
IP Rating :
IP68
Material :
Nylon, PA66
Number of Contacts :
2-4
Operating Temperature :
-40℃~+105℃
Size :
Standard
Type :
Assembly Screw Type Waterproof Connector
Voltage Rating :
300V
Description
Nylon IP68 Straight M20 Outdoor LED Assembly Type Waterproof Electric Connector
M20 2 PIN wire to wire waterproof male female electric power screw terminal connector

M20 cable outer diameter range are from 5.5mm to 10mm.The Wire gauge range is ≤1.5mm²,electric power screw terminal connector: nylon material, assembly solder type.

Feature:
* Quick and easy installation ,favorable waterproof ,IP67.
* Quality is our culture.
* One-stop production factory
* Hardware and cable self-production
* Mold making and inject molding
* Short delivery time.

Specification:

Contact Numbers
2
3
4
5
6
Voltage Rating
300V
300V
250V
110V
110V
Current Rating
15A
15A
6A
4A
4A
Wire Gague
≤1.5mm²
≤1.5mm²
≤1.0mm²
≤0.5mm²
≤0.5mm²
Cable OD
6mm-10mm
Mechanical Life
3000mating cycles
Operating Rating
-40℃-+105℃
Waterproof level
IP67

Application:

This Assembly waterproof connector is suitable for indoor/outdoor, such as outdoor led lighting, LED panel screens, outdoor security cameras, solar energy inverter, medical device, communications, marine equipment , control systems, measuring equipment and testing equipment, for data and power and so on.

Straight Screw Waterproof Connector M20 Outdoor Assembly Type For Cable


Product advantages:


The connectors can be used for both cable to cable (in-line) or cable to devices connections.
1.It has ingenious, convenient,and practical and save cost design.
The outer cable diameter is shrinking,along with the continuous tightening of the nut,)
M20 cable OD acceptable range is 5.5mm~10mm, which means that you don't need to pay additional customization fees (the extra expenses)for small changes in outer
cable diameter as long as your cable OD is between 5.5mm~10mm.

2.Easy maintenance.
In case of failure, the connector need to be maintained, only need to unscrew the two ends of the waterproof connector, no need to clamp off the cable, electric plastic sleeve, etc.
