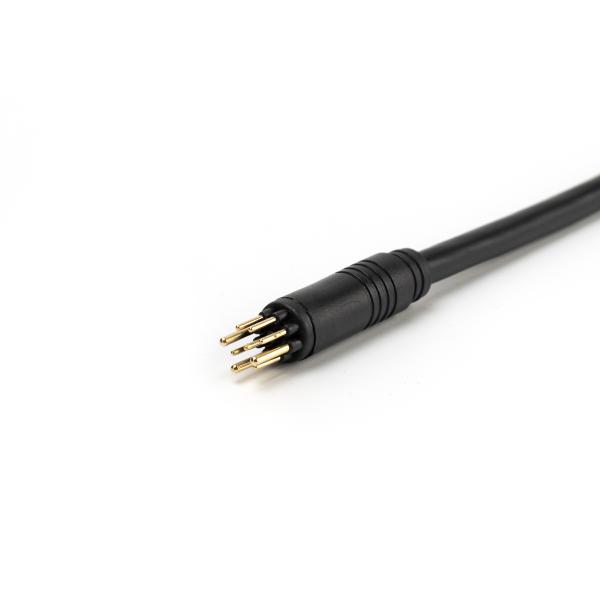

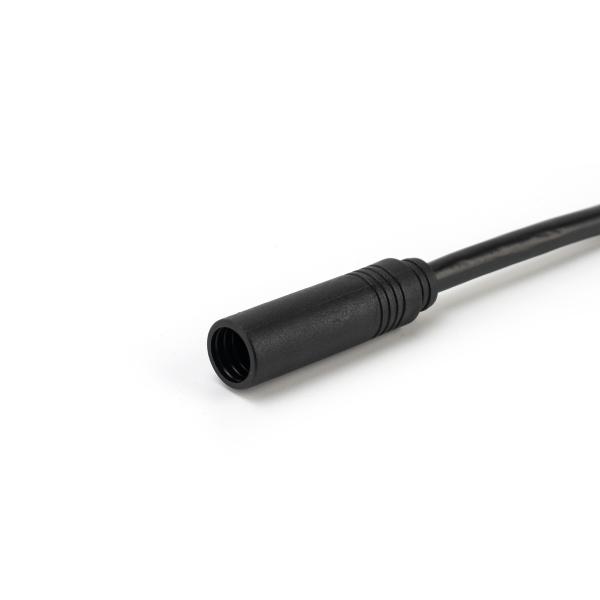

3+6 Motor Head Pin IP67 Auto Electric Bicycle Scooter Plug Waterproof Connector

Product Description:

Made of durable material for long use life.
Waterproof interface, excellent sealing
Extension cable with arrow mark for easy installation
It fits for bafang hub motor
Specification:
Type: Motor Cable
Color: Black
Cable Length: 400mm
IP Code: IP65
Material: PVC

Suit For:500W ebike motor

Features:

• Rated voltage: 500VAC
  Rated current 15A for 1-3 terminals 5A for 4-9 terminals
  Contact resistance: ≤10mΩ
  Temperature range: -40℃-+105℃
  Insulation resistance: should be ≥100mΩ under normal conditions and humid conditions
  Withstand voltage: AC1000V 50HZ for 1 minute without breakdown or flashover
  Contacts: Copper alloy nickel/gold plated
  Mechanical life: 500 times
  Sheath: PVC
  Pin diameter: 3²x1.5 6²X1.0
  Maximum outer diameter: plug 10mm socket 14mm
  Line length: 0.65m
  Use wire specification: 1.2mm²
  Production process: injection molding

Technical Parameters:

Applications:

This type waterproof connector use in electrical bike.

Support and Services:

Packing and Shipping:

The Waterproof Male Female Connector will be carefully packaged to ensure it reaches you in perfect condition. It will be packaged in a cardboard box with bubble wrap around it for added protection.

The package will then be shipped via a trusted courier such as FedEx or DHL to ensure it reaches you quickly and safely.

FAQ:

1. Q: Does your company provide OEM & ODM service?
A: Yes , Our Company is able to provide OEM & ODM service. We would be able to process the products based on your needs, please kindly provide us your company file for more information, thank you.

2. Q: Do you have an E-catalog? Can you send me the catalog to check all your products?
A: Sure, we have product catalog. Please contact us online or send us an Email for the catalogs.

3. Q : Can I have my own design for the package or on the products?
A : Yes, of course. Please kindly provide your own for further details about the design, thanks.

4. Q: Can you provide Free samples?
A: For the connectors, yes we can provide 2 piece of free samples for your test, you need to pay the shipping cost only.
For the chargers, we would charge the samples, but would refund to you in your first bulk order.
Thank you for your understanding.

5. Q: What kind of payment do you accept?
A: We accept T/T(Wire transfer), Western Union and Paypal.

7. Q : What about your delivery time?
A : When we have the product you need in stock, we can ship out in 2 - 3 days.
If without stock , we need to confirm the delivery time according to your detailed quantity. Usually the lead time is 7 - 10 days.
