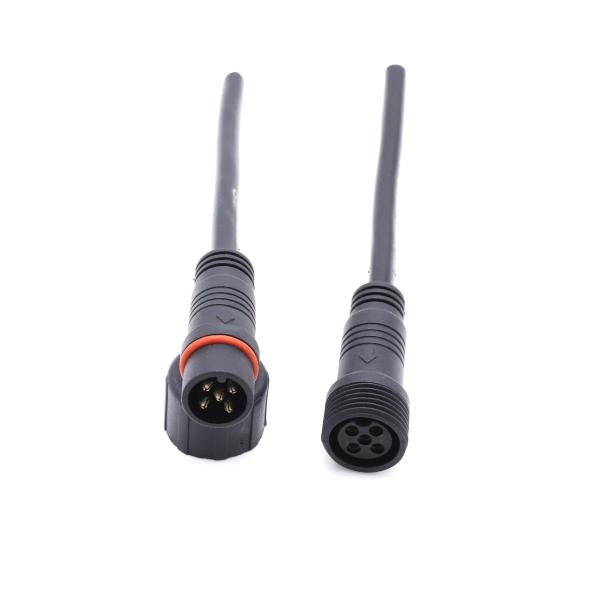

Customized M18 IP67 IP68 Male Female Waterproof Cable 2 3 4 5 6 7 8 Pin Plug Electrical Wire Connector

Product Description:

m18 big head waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP67. If you are looking for IP67 waterproof connectors, M19 big head connectors will be a perfet choice. it is widely used in many application.

Features:

• 1: appearance, environment description

  1.1 Shape reference size (length × width × height) (mm): subject to the actual object (drawings are for reference only).

  1.2 Use of environmental conditions

  Working temperature: -40 ° C ~ 105 ° C

  Storage temperature: -25 ° C ~ 85 ° C

  Atmospheric pressure: (86 ~ 106) KPa

  Relative humidity: ≤90%

  Waterproof rating: IP67/IP68

  Maximum current: 10A

  2: Product structure description

  2.1 Wiring method: welded

  2.2 Maximum inlet diameter: Φ7.5mm

  2.3 Connector contacts and plating: copper, Φ1.5/1.0mm, gold plated. .

  2.4 Contact plastic: nylon, 260 ° C temperature resistant, V-0 flame retardant.

  2.5 Waterproof rubber ring: silica gel.

  2.6 Glue: Epoxy resin.

Technical Parameters:

Applications:

Outdoor Decoration, LED lights,Vehicles,Light sensors,Infrared sensors,Water filters

Waterproof connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like a bicycle or bike.

Our advantages:

Packing and Shipping:

FAQ:

1. Q:Is the sample avaliable and free?

A: Yes, we can produce by your samples or technical drawings. We can build the molds andfixtures.

2. Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

3. Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union

4Q: How to buy your products?

You need to do as followings:

Confirm Current Rating and Number of Contacts

Confirm Assembly style

Confirm Cable Wire guage

Confirm Cable Length and Material.
