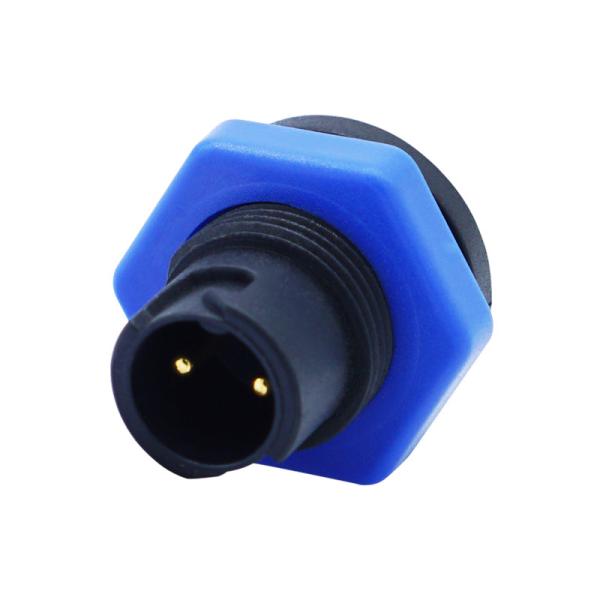

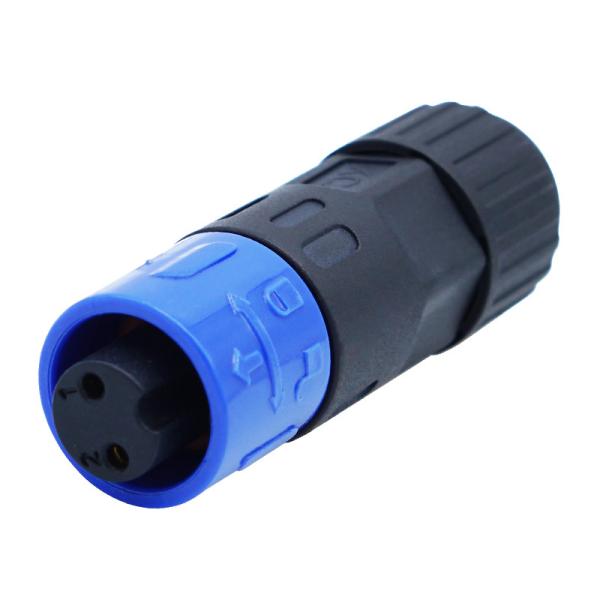

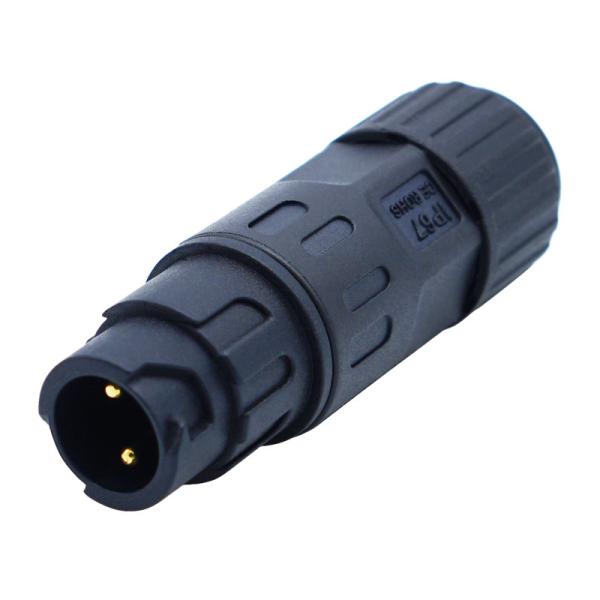

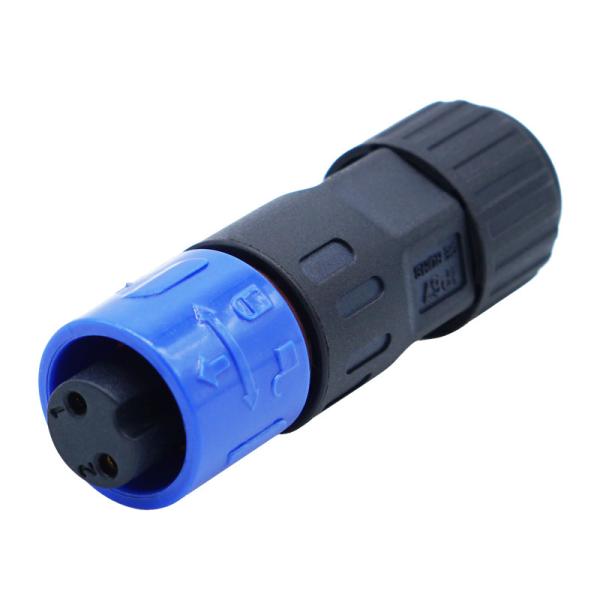

Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors
Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors
Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors
Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors
Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors
Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors
Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors
Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors
Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors
Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors
Specifications
Brand Name :
Xiangqian
Model Number :
M12
Certification :
RoHS
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
10-15 days
Packaging Details :
450*320*280
Number Of Pins :
2,3,4,5,6,.7,8
Contact Resistance :
≤10mΩ
Wire Gague :
<=1.5mm²
Mating Style :
Quick Connect
Package :
Carton
Withstand Voltage :
AC1000V/1min
Plating :
Tin Plating
Feature :
Waterproof-Auto Connector
Description

Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors

M12 Self-locking.pdf

Product Description:

Model: M12 self locking
Type: line to line
Working frequency: low frequency
Application: Cable
Interface type: AC / DC
Shape: round
Line length: customized (mm)
Production process: injection molding
Processing customization: Yes
Characteristics: Waterproof
Contact material: copper alloy (gold plated)
Insulator material: high performance engineering plastics
Number of cores: 2-6
Number of stitches: 2-6
Order No.: 18818592278
Minimum number of packages: 10
Product No.: M12 self locking male female connector
Application: Lighting Electronics

Features:

1. Waterproof Circular Connectors
2. Connecting everything perfectly
3. 10A Max , IP67 protection level
4. 2-5 pin available
5. Approved by UL,CE,TUV and RoHS
6. Bayonet locking structure
7. 3 years warranty
8. Long service life & easy to assemble

Technical Parameters:

Brand Name Xiangqian Origin Mainland China
Certification CE,UL,TUV ambient temperature -40°-105°
application area Lighting engineering, mechanical equipment Cross sectional area
0.3 square -1.5 square
product line M12 specifications M12
Installation style Male and female butted threaded knob
Housing material		 nylon

Applications:

Our connectors widely applied in outdoor LED lighting, LED display, communication, new energy, automobile electronic applications etc.
Nylon M12 Self-locking Panel Mount and Plug Waterproof IP67 Connectors

OUR ADVANTAGES

1) We can offer you connectors with high quality & reasonable price.

2) We can do the designs according to the customers' requirement.

3) We can open customers' own mould as per their requirement.

4) We can offer your a good after-sell service.

5) We have strong professional design team.

6) Rich experience for over 12 years.

7) Prompt delivery: 7-15 days.

B) Small orders are welcome.

Packing and Shipping:

Packing:1.Plastic bag;2.Carton; 3.Wooden Box; 4.As customer requirement.

Shipping:There are all kinds of methods of shipment for you to choose, competitive express freight such as DHL/TNT/Fedex...For those of mass orders, a quote of ocean shipping would be provided too if required.

FAQ:

Q1.What's your service?

A1: We provide technical support and customize solutions. contact: Linktron@link-tron.com

Q2. Can I have a sample for quality check?

A2: Yes, samples based on your request with fast delivery.

Q3.How to place an order?

A4: Contact with online service, or sent an email to us, we will confirm you with product price, specs, packing etc.

Q5. How about your delivery time?

A5: Shipped in 3-8 working days after payment be confirmed.

Q6: What is your terms of payment ?

A6: Accepted Payment Type: T/T, L/C, PayPal, Western Union or other payment methods.
