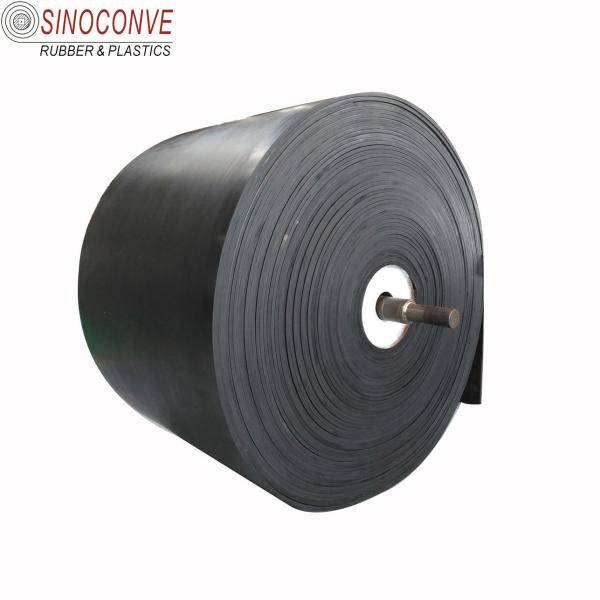

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
Specifications
Place of Origin :
China
Packaging Details :
--- Maximum 500m per roll for rubber EP conveyor belts
--- Cassette package is available for abrasion resistant conveyor belts
--- One 20" container can load 6--8 rolls DIN-Y conveyor belts
--- One 40" container can load 8--10 roll
MOQ :
50 meters
Price :
$20.00/meters >=50 meters
Applicable Industries :
Construction works , Energy & Mining
Showroom Location :
None
Condition :
New
Material :
Rubber, Rubber + EP fabric
Material Feature :
Heat Resistant
Structure :
Belt Conveyor
Power :
none
Warranty :
1 Year, 1 YEAER
Width or Diameter :
500mm-1000mm
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
conveyor belt
Weight (KG) :
100 kg
After-sales Service Provided :
Engineers available to service machinery overseas, Online support
Product Name :
Transport Conveyor Belt
Feature :
Abrasion resistant
Application :
cement, crusher plant, mining,port
Certificate :
ISO9001, ISO14001
Standards :
HG/T 4062--2008,DIN22102, SANS1173, JIS K6322
Working temperature :
-30℃ ------ +80℃
DIN quality :
DIN22102-Y,W,X
After Warranty Service :
Video technical support, Online support
Local Service Location :
None
Port :
Ningbo/Shanghai
Description
Product Description
VR
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

SINOCONVE conveyor belts are designed to the highest standards ,to transport all types of bulk material,including mining, stone and earth handling , building industries,recycling, steel processing , wood, paper and pulp.

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Property

-- High strength
-- High resistant to abrasion
-- Low elongation
-- Resistant to impact
-- Suitable for long distance,large loading capacity and high speed transportation

Manufacturing standards

GB/T 7984
DIN 22102
JISK 6322
AS 1332-2000
SANS 1173:2005
BS 490

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
Specification
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
Cover Rubber grade
8MPA,10MPA,12MPA,15MPA
18MPA,20MPA,24MPA,26MPA
DIN-X,Y,W
RMA-1,RMA-2
N17,M24
Belt width (mm)
500,600.650,700,800,1000,1200
1400,1500,1800,2000,2200,2500
18",20",24",30",36",40",42"
48",60",72",78",86",94"
Tensile strength
EP315/3,EP400/3,EP500/3,EP600/3
EP400/4,EP500/4,EP600/4
EP500/5,EP1000/5,EP1250/5
EP600/6,EP1200/6
330PIW, 440PIW
Top+Bottom thickness
3+1.5, 4+2, 4+1.5, 4+3, 5+1.5,
3/16"+1/16", 1/4"+1/16"
Belt thickness
3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm
Belt length
10m,20m,50m,100m,200m,250m,300m,500m
Belt edge type
moulded(sealed) edge or cut edge
Applications
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
You may like
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Conveyor belt fastener

140E,190E, 1.5" 2",2.5"

MOQ:1 box

Delivery time: 5 days

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Conveyor belt vulcanizing machine

Suitable for belt width upto 2600mm

Suitable for both fabric and steel cord conveyor belt

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Steep angel conveyor belt

EP400/3,EP500/4,EP630/3
Sidewall height: from 40mm to 400mm
Cleat height: from 35m to 350mm
MOQ:5m
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Raw edge cogged V belt

AX,BX,CX,XPZ,XPA,XPB,XPC
AX10X,AV13X,AV15X,AV17X,AV22X
3VX,5VX,8VX
MOQ:50pcs
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

High quality wrapped V belt

O,Z,M,A,B,C,D,E
SPZ,SPA,SPB,SPC,
3V,5V,8V,3L,4L,5L
MOQ: 50pcs
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Chevron V conveyor belt

Closed V, Open V type
C5,C10,C15,C20,C25
MOQ: 30m
Quality control

Step 1: Raw material inspection

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Rubber compound test

Moving die rheometer analyzes the characteristics of Rubber Compound

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

EP fabric test

Tensile strength test and elongation test when broken.

Step 2: Advance equipment to guarantee quality from the details

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Calender process

4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Forming process

The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.

Step 3:Finished belts inspection

We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Length and surface inspection

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Thickness inspection

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

WIdth inspection

Step 4: Technical data test

We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Abrasion test

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Adhesion strength test

EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C

Tensile strength test

Company Information
EP150 Heat Resistant Conveyor Belt With Temperature Range Of -30C To 80C
FAQ

Q1. Are you a manufactuer?

Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.

Q2. What about the lead time?

1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel

Q3. How to pay?

1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service

Q4. How about package?

1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
