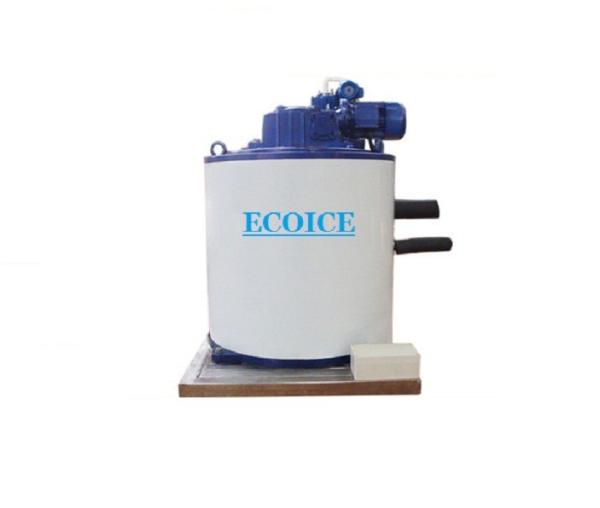

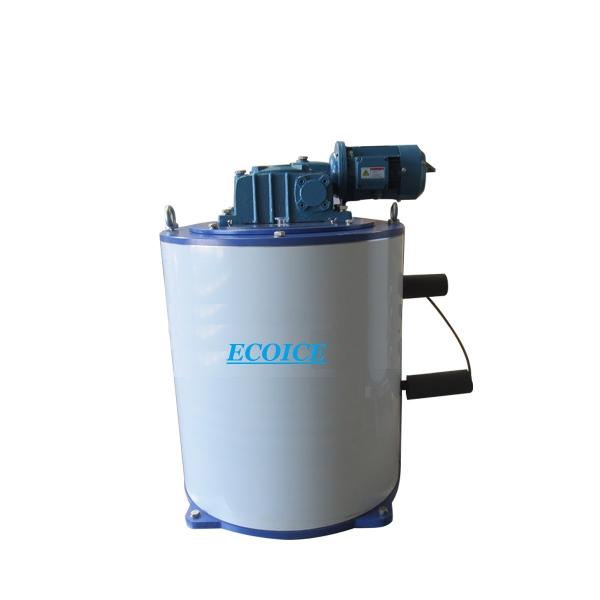

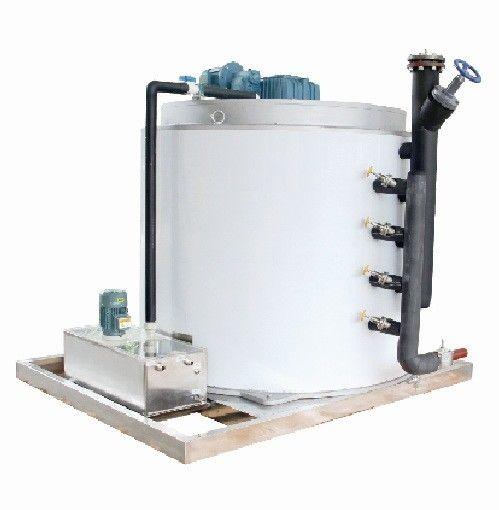

ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
Specifications
Brand Name :
ECOICE
Model Number :
ECO-3T
Certification :
CE
Place of Origin :
China
Item :
Commercial SS304 Evaporator 3ton Scale flake Ice Maker
Ice Shape :
Flake Ice
Application :
Supermarket
Cooling Method :
Direct Cooling
Ice Making :
Flowing
MOQ :
1 pc
Price :
usd5000-10000/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pc per month
Delivery Time :
10-15 days
Packaging Details :
wooden cases
Cooling Way :
Air Cooled
Ice Temperature :
-5℃~-10℃
water temp. :
2℃~35℃
Description

ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker ​:


As the key part of the complete flake ice machine, the ice flaker evaporator plays important role in making ice. To match the various Ice flaker evaporators, you can make different choice about the refrigeration units in different refrigerant (R22, R404A or R717) by yourselves before place the order, let me know which refrigerant you'll choose.

Characteristics:


---The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of Aluminum.
---Every flake ice scraper processed in special designing without any jointing then in high solidity and can rotate well nearly 8 years.
---All components selected is of top-quality and meet configuration need, which makes the evaporator hold less space, and achieve best performance.
---The flake ice is glittering and translucent, hard and pure
---Ice making and dropping in high speed.

Commercial Range Ice Flaker Evaporator Specification :

Model ECO-1T ECO-1.5T ECO-2T ECO-2.5T ECO-3T ECO-5T
Daily Output(Ton/24Hrs) 1 1.5 2 2.5 3 5
Necessary Refrigeration Capacity (KW) 6 9.8 12 15.5 18 30
Voltage 380V/50HZ/3P
Reductor Power 0.18 0.18 0.37 0.37 0.37 0.37
Water Inlet / Drain Pipe 1/2" 1/2" 1/2" 1/2" 1/2" 1/2"
Dimension (mm) 790*580*900 790*580*1000 900*680*1050 950*680*1100 950*680*1200 1180*1050*1420
Weight (kgs) 160 200 240 260 280 370

ECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice MakerECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice MakerECOICE Commercial SS304 Evaporator for 3ton Scale flake Ice Maker
