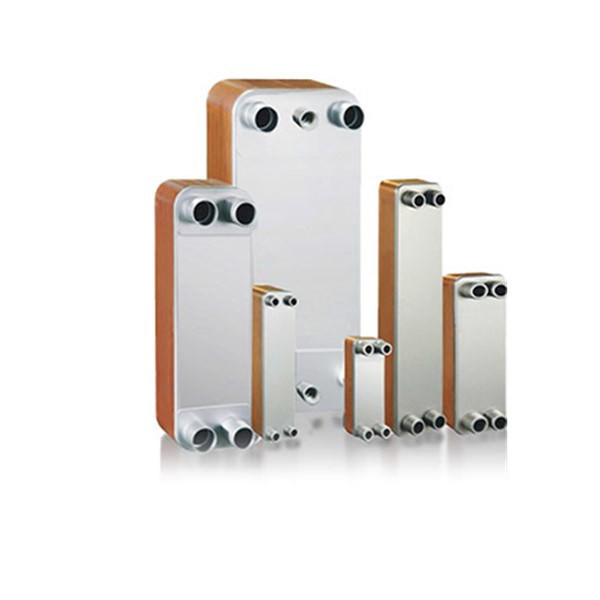

B3-060 Brazed plate heat exchanger for Refrigerator System
B3-060 Brazed plate heat exchanger for Refrigerator System
B3-060 Brazed plate heat exchanger for Refrigerator System
B3-060 Brazed plate heat exchanger for Refrigerator System
B3-060 Brazed plate heat exchanger for Refrigerator System
B3-060 Brazed plate heat exchanger for Refrigerator System
B3-060 Brazed plate heat exchanger for Refrigerator System
B3-060 Brazed plate heat exchanger for Refrigerator System
B3-060 Brazed plate heat exchanger for Refrigerator System
B3-060 Brazed plate heat exchanger for Refrigerator System
Specifications
Brand Name :
ECOICE
Model Number :
B3-060
Certification :
CE
Place of Origin :
China
Item :
B3-060 Brazed plate heat exchanger for Refrigerator System
Max. Welded Connection :
7/8"
Max. Threaded Connection :
3/4"
Type Of Channel :
H
MOQ :
50PC
Price :
USD50-1000/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PC PER MONTH
Delivery Time :
15-20 DAYS
Packaging Details :
WOODEN CASES
Plate material :
Stainless steel(316L,304)
Solder material :
Copper
Voltage :
220V
Maximum Workin :
6.75MPa
Description

ECOICE Copper Brazed plate heat exchanger is composed of a lot of stainless steel plates and front and rear covers, it is separated copper sheet (or nickel) with high purity and brazed in high temperature furnace.In order to achieve the best heat transfer effect, All corrugated plates will be combined with velocity heat transfer plate with high, middle and low level according to the clients' requirements. It has a compact structure without gasket and outer frame to operate in the condition of high temperature and high pressure.

Model B3-060


Height x width 526x119mm
Hole distance 470x63mm
Design pressure 3.0MPA 4.5MPA
Test pressurec 4.5MPA 6.75MPA
Max Threaded Connection 1-5/8"
Max Welded Connection 1-1/2"
Plate material AISI 316L 304
Weight(kg) 2.4+0.18n
Max No. Of plate 150
Channel H L M
Heat exchange area(m2) (n-2)× 0.06
Side valumn 0.111× N/2 0.111× (n-2)/2
Design temperature -196---+200degree

B3-060 Brazed plate heat exchanger for Refrigerator System
Application :

Air dryer
Heat pump
Absorption chiller
HVAC
Radiant floor,
Snow melt,
Boiler and Solar water heat exchanger
Heat Recovery and oil cooler: hydraulic oil cooling, engine oil cooling, and fuel oil heating.
Steam heating
Flat plate heat exchanger
Beer wort cooler
Milk pasteurization
Wind turbine oil cooler
Marine oil cooler

B3-060 Brazed plate heat exchanger for Refrigerator System

If you have any interest , please contact us at any time .

Free samples are available on client request
